Pan China established in year 1989 in the city of Shanghai in China under than leadership of Mr. Jim Zhou, who is a well known mechanical engineer of China. The vision of Mr. Jim Zhou is to bring advancement in the industry of plumbing. To achieve this goal, Mr. Jim with his team is continuously working day and night to bring something innovative to this industry.
...

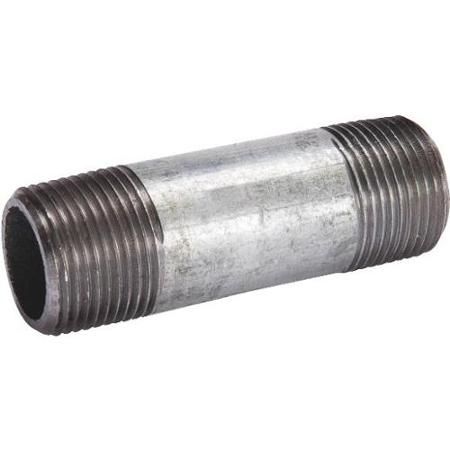

Black Pipe Nipples Schedule 40 AND Schedule 80

China

-

( Negotiable ) 获取最新报价

Shanghai, China

-

200

as per customers' requests

15-30

1000000

L/C, T/T, D/P, Western Union, PayPal, Other

产品规格

PCFSC

-

Male and Female

NPT/ BSP

1/2" -4"

Black

Galvanized

ISO 9001

详情

Rolled Thread Technology on various steel pipe & tube brings a revolutionary concept in pipe thread processing and pipe connection technology to the world with hopes of eliminating the harsh global consequences being introduced by antiquated lathe cut machinery practices.

PCFS ( Chi-Thread ) is very much willing to cooperation with your sales network on this Green Safe Steel Nipples to protect our environment and bring more benefits to our next generations.

We warmly welcome your inquiries.PCFSC is manufacturer of Galvanized and Black Pipe Nipples. The Pipe Nipples manufacture at our factory is manufactured by advance machinery and we produce the highest quality of NPT and BSP threads on Pipe Nipples as per American and European standards.

DISCRIPTION of PCFSC High Quality Pipe Nipples:

Material: Carbon steel
Standards ASTM A53, ASTM A733, EN 10241, BS 1387, DIN2982, JIS B2302
Threads NPT/ BSP
Thickness As per the standards or as per customer request
Length As per the standards or as per customer request
Techniques Rolled threading
Connection Male and Female
Size ½ 4
Surface Black, Galvanized
Certificate ISO 9001

 Following are the advantages of Galvanized Pipe Nipples manufactured at PCFSC factory.

  • PCFSC Pipe Nipples are manufacture by Specialized Rolling Process which make the zinc coating intact on the Pipe Nipples which protect the Pipe Nipples from getting rusted. Where as in cut threaded pipe nipples the zinc coating of the Pipe nipple get remove due to cutting process which make the ability to fight against rust very weak and it get rust which cause leakage.

  • The Roughness on Profile of Rolled threaded Pipe Nipples is 5-7 times more than cut threaded Pipe Nipples as the thread is made by rolled which Roughness less than 0.4 where as in cut thread as the thread is made by knife so the roughness is more than 3.2 which make the connection between male and female fitting weak.
  • PCFSC manufacture Perfect threads on the Pipe Nipples because of Rollers Tools where as in cut thread the thread is made by knife which make the thread vary each time in profiling.

  • Rust Resistance is greatly improve in Rolled threading Pipe Nipples where as in cut thread there is no rust resistance.

  • The pipe becomes harder by Rolling Thread Technology instead of thinner by cutting. Because of Rolling the Pipe can bear bending upto 70°

  • The working pressure in Cut thread pipe after cutting thread significantly decreases the max. working pressure by 32% - 57% on different size and wall thickness of the welded pipe. The pipe after rolling thread will not reduces the max. working pressure.

PCFSC believe in revolutionize and strengthen the Piping systems industry and we believe in continuous improvement to make the Piping system Strong.



imageRolled Thread Close Steel Nipples are available on different Diameter and Length Sizes. Please let us know your interest. We will be happy to give you a quotation upon receipt of your requirements.
