Specifications

1.CLEAN,LOW TOXICITY,ON RESIDUAL,EXTINGUISHER EASY TO SOURCE,PRODUCE AND GENOMIC IDEA.
2.APPLY TO ELECTRICAL PLANT,OIL TANK,ETC


Design Standard :

CNPA GB16669-1996, co2 SYSTEM PARTS TECHNICAL STANDARDS



1. FEATURES AND ADVANTAGES :

CLEAN AND LOW TOXCITY

INERT

WITHOUT RESIDUAL AFTER EXTINGUISHING

EASY TO SOURCE ,PRODUCE AND ENOMIC IDEA

2. operational principle

suffocated , Total Flooding type

cooling and temperature drop


3. apply to

Eletrical plant ,power stantion

Printing factor

Oil tank , painting factory

Etc easy be fired area ,room or production line

Also be applied to computer room ,

libray ,file room,communication center

1.PARTS AND ACCESSORIES:


a.FIRE CONTROL PANEL SYSTEM SMOKE/HEAT/PHOTIC DETECTOR SYSTEM ALARM SYSTEM  ( FIRE BELL,MANUAL CALL,VIDIO-AUDIO ALARM )

b.EQUIPMENT:     CYLINDER, VALVE,SELETIVE VALVE LIQUID,CHECK PIPE,PRESSURE SWITCH ,NOZZLE,PIPE ETC.



CYLINDER :

VOLUME ; 70LTR

N.W :78KG

DIAMETER * HEIGHT : 1500* 267MM ,

THICKNESS : 5.7MM TO 6.3MM

WORKING PRESSURE : 15MPA ,

MATERAIL” 37Mn

CYLINDER VALVE

“ MATERIAL : BRASS

WORKING PRESSURE : 15MPA , THREAD : PZ39 , HOSE THREAD G5/8 , RELEASE PRESSURE : 19+0.95

CONSIST OF : VALVE BODY , GAS CHAMBER , PRESSURE ARM TO SEALING CO2

IN FIRE HARZOUNDS , CONTROLED BY MANUAL , AUMOMATIC OPEN THE VALVE TO RELEASE TO GAS

VALVE CONNECTED WITH : DIPTUBE , DISCHARGE HOSE ,

HOSE PRESSURE HOSE :

DIA: 12MM , WORKING PRESSURE 15MPA , THREAD G5/8 , LENTHG 450MM

LIQUID ONE WAY VALVE ;

BE USE BETWEEN MANIFOLD PIPE AND HIGH PRESSURE HOSE ,PREVENT GAS FLOW BACK TO STORED CYLINDER . WORKING PRESSURE 15MPA , VALVE ACTUATED PRESSURE : ≥0.15MPA , THREAD :M27 / G5/8 ‘ ,



SCALE DEVICE

FOR GAS LOSS : IF LESS 4KG ,

OUTPUT BY SIGNAL ,

POWDER DC 24V

RATE VOLTOGE : 1.5A

MANIFOLD PIPE :

COMBINATE ALL THE STORED CYLINDER ,BE INSTALLED CYLINDER RACKET

MATERIAL : STEEL : 20# , THREAD M27/M16 , MAX WORKING PRESSURE 15MPA ,

SAFEY RELASE VALVE : BE INSTALLED ON MANIFOLD PIPE , FOR RELASE HIGH PRESSURE EXCEED THE REQUESTE

GAS RELASE : 15 +0.75 MPA , THREAD M16

SELECTIVE VALVE : BE USED IN COMABATION SYSTEM ,

PRESSURE SWITCH : BE INSTALLED ON MANIFOLD PIPE (FOR INDPENTABLE SYSTEM ) IF SELECTIVE IN STALLED ON SELEVICT OUTLET , WHEN THE GAS ARE DISCHARGING , PUTOUT ON SIGNAL TO CONTROL PANEL CENTER ACTUATED : 0.2MPA , POWDER :24DCV , RATED VOLALGTE : 1.5A ,

PIPE AND CONNECTION : NOT SUPPLER

TOAL FLOODING NOZZLE:

TERMINAL END OF THE PIPE , DISCHARGE MOUTH FOR THE AGENT . WITH COVER TOTAL FLOODING NOZZLE AND NO COVER FLOODING NOZZLE , OR SIDE WORKING NOZZLE DEPENDENT THE DESIGNATIO


2.OTHER INFORMATION:


a.WORKING PRESSURE:5.17 MPA
b.DICHARGE TIME:MIN 60S
c.CAPACITY:70 LTR
d.WORKING TEMPERATURE:0 C~49 C
e.NOZZLE WORKING PRESSURE:MIN1.4
f.SYSTEM ACTING MEANS:AUTOMATICEMERGENCY MANUAL,MACHINICA

3.APPLY TO ELECTRICAL PLANT,POWER STATION PRINTING FACTORY,OIL TANK,PAINTING FACTORY ETC EASY BE FIRED AREA,ROOM OR PRODUCTION LINE ALSO BE APPLIED TO COPUTER ROOM,LIBRAY,FILE.

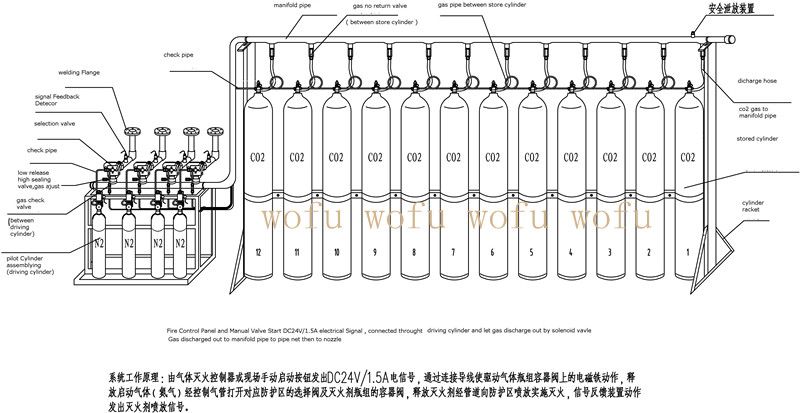

The Constructed As Following Picture


Contact Us Now For CO2 Fire Suppression System  Design and get offer  thank you
