1000W Off grid Wind solar hybrid charge controller with MPPT and PWM

国家:

China

型号:

HX-VWG2014

离岸价格:

120 ~ 138 / Piece （面議）获取最新报价

位置:

最小订单价格:

120 per Piece

最小订单:

1 Piece

包装细节:

Standard export carton package

交货时间:

Within 5 days after payment

供应能力:

8000 Piece per Month

付款方式:

T/T, L/C, Western Union, PayPal, Other

產品組 :

hybrid charge controller

现在联系

产品规格

Rated Voltage : 12V /24V Maximum Current : 40A Rate Power : 1000W Certification : CE Display : LCD Warranty : 3 years

详情

Description:.

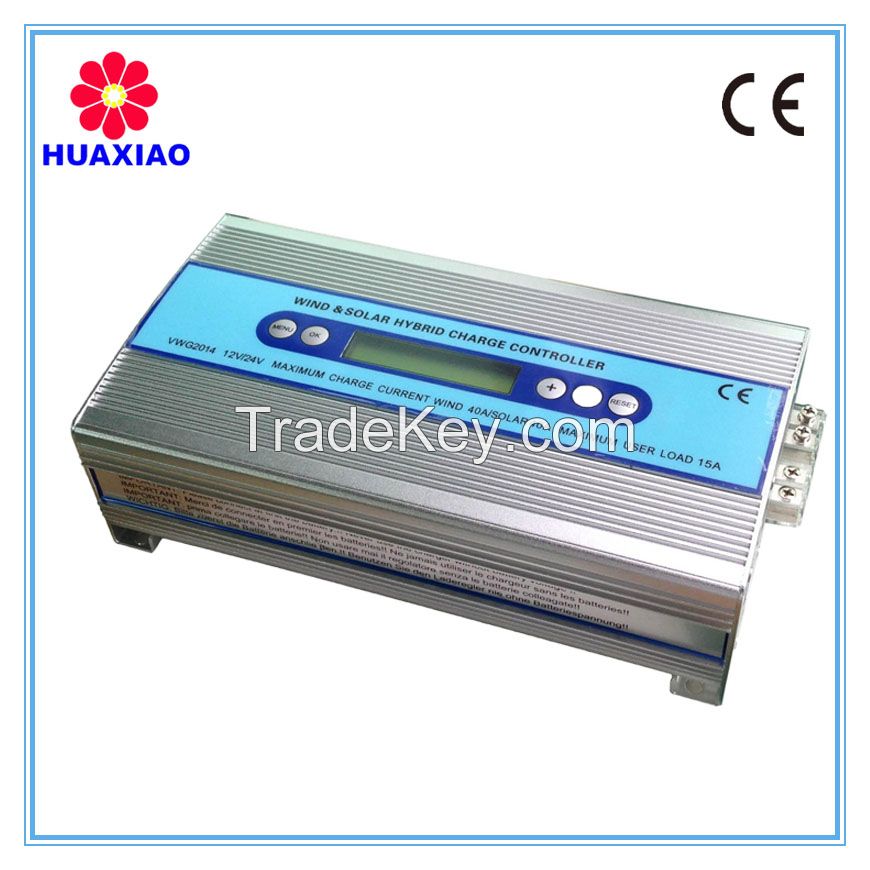

The VWG***4 wind turbine charge controller, hybrid charge controller is a smart off gird controller .The integrated micro computer monitors all the necessary s and outputs to ensure precise control. It can detect *2v/*4v battery system automatically.High accuracy control charge or discharge. High charge efficiency, low no-load losses, high safety, stability, reliability and long time.

Key Features:

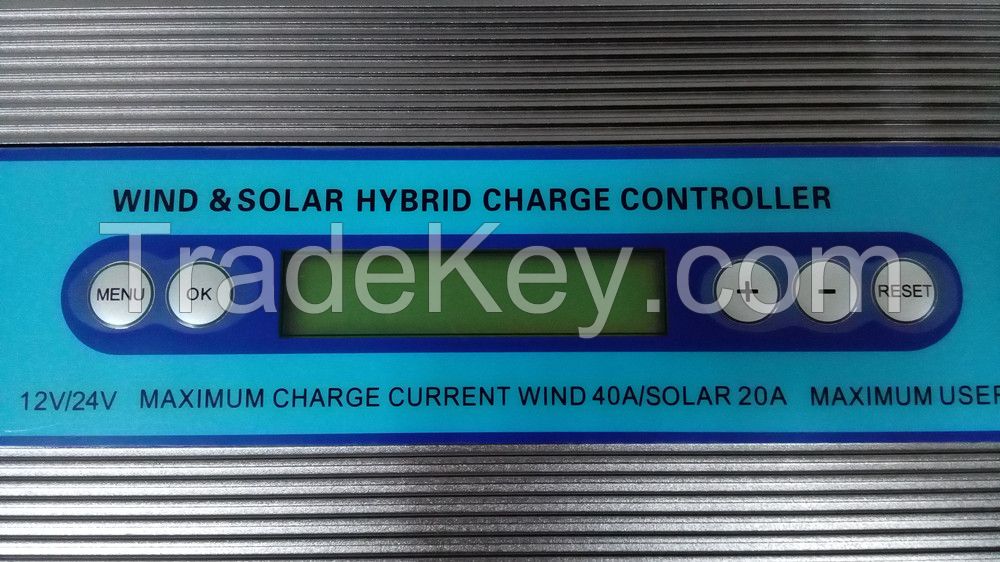

• It has a powerful menu system,A perfect setup make it very easy and convenience for user to tracking and control,User also can make the settings on the LCD display according to the factors that best match the situation.

• Auto sensing of voltage of batteries connected (*2 or *4 volt).

• Ensures the battery is maintained in best possible condition by preventing overcharging and over discharging.

• Different type of brakeing with flexible system

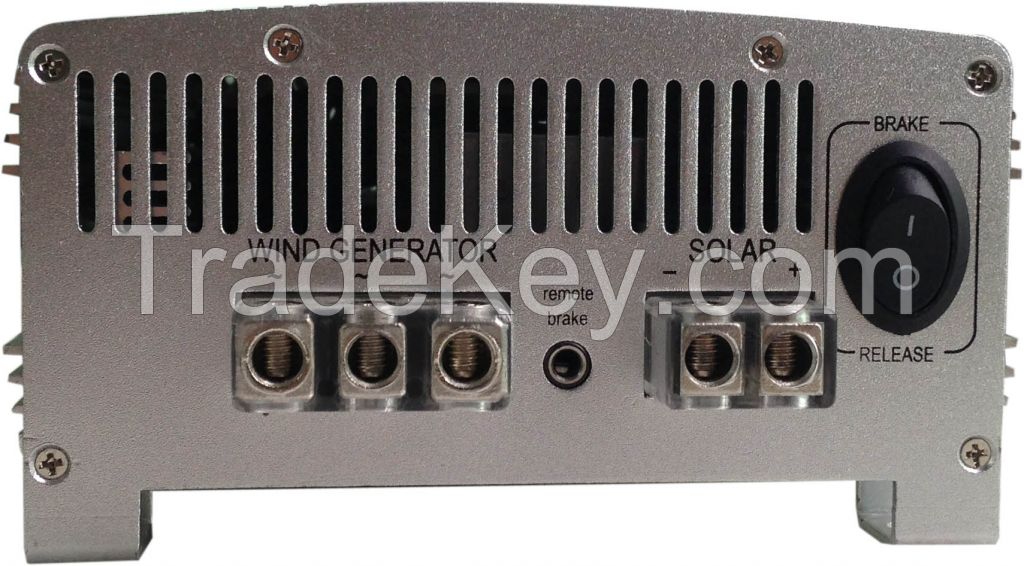

o The BRAKE switch allows you to manually slow or stop your turbine for an extended period of time.

o Automatic braking of the turbine. When the current is bigger than maxcharge current,controller will reduce the charge current gradually untilno charging and brake totally

o The remote brake interface make it more convenience for control

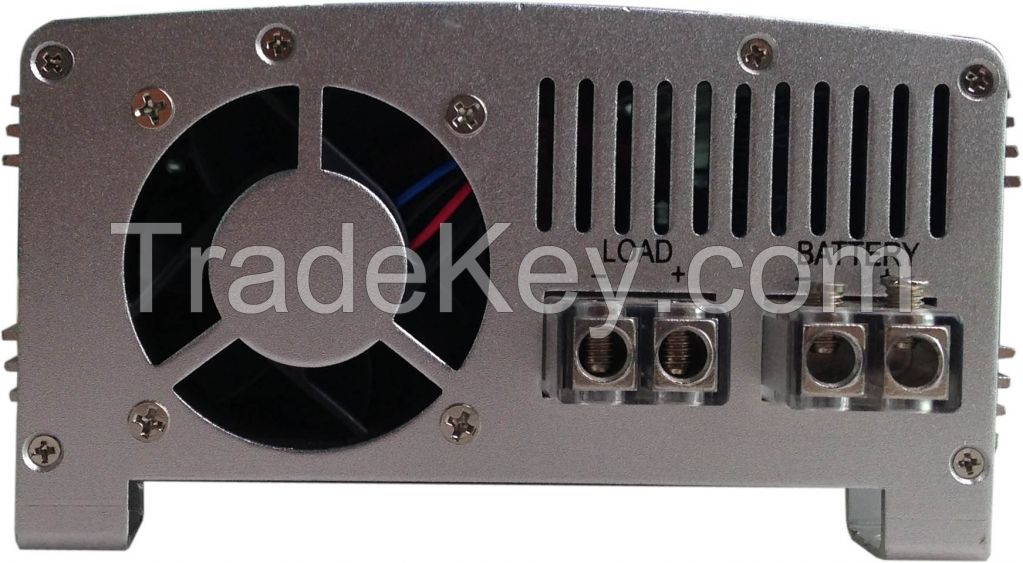

• A Load output where external devices can be switched on and off at user determined voltages.The load output is also current limited to protect the connected device

• Night lamp control. when the Light dimmed load will automatically open,when the light is illuminated, the load will automatically close.

• The unit accepts 3 phase AC directly from your wind turbine so there is no need for a separate rectifier.

Protection:

•Low Voltage Protection
•Over Voltage Protection
•Overload Protection
•Overcharge protection
•Reverse Polarity protection
•Short Circuit protection
•Lightning protection
•Automatically brake protection

Specification:

MODEL	VWG***4
Rated Power	***0W(wind turbine+PV cells)
Applicable batteries	2/4V,******0Ah(automatic distinguish voltage)
Night lamp control	On:5.3/1.7V Off:2.6/5.*3V
Battery full charge cut	4.4V/8.8V (default, adjustable)
Battery low voltage disconnect load	0.5V/1V（default，adjustable）
Battery low voltage reconnect voltage	2.5V/5.0V(default, adjustable)
Charge current max	0A/0A
Max Load current	*5A
Recovery time after the automatic braking	*0 sec (default, adjustable)
No load loss	≤*0mA
Working environment	0℃～0℃，RH: 0～*0％
Dimensions	8×3×*5mm
Weight	1.7kg
