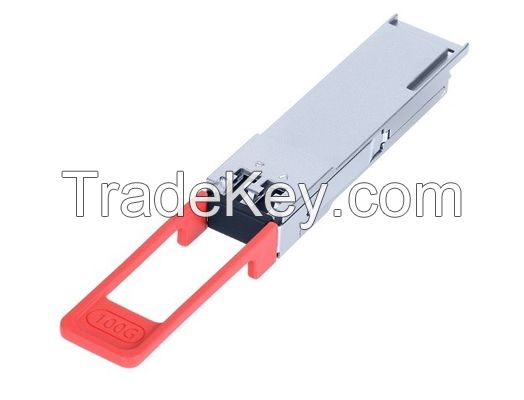

100G QSFP28 ER4 Lite 1310nm 30km Transceiver Fiber Optic Transceiver Module

100Gbps QSFP28 Transceiver, Single Mode, 30km Reach


• Hot-pluggable QSFP28 form factor
• Supports 103.1Gb/s aggregate bit rates
• Maximum link length of 30km on Single Mode Fiber (SMF)
• Power dissipation < 5W
• Built-in digital diagnostic functions
• Built-in CDR
• 4x25.78Gb/s DFB-based LAN-WDM transmitter
• Duplex LC receptacles
• Single 3.3V power supply
• RoHS compliant
• Operating case temperature: 0~+70°C

Applications

• 100GBASE-ER4 100G Ethernet
• 100GE 4WDM-30 Applications

• QSFP28 MSA
• IEEE 802.3ba


Description

• MK1Q-LRTC is 100Gb/s QSFP28 ER4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 ER4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.

Absolute Maximum Ratings

Module performance is not guaranteed beyond the operating range.

Exceeding the limits below may damage the transceiver module permanently.

Recommended Operating Condition





Electrical Specification





Optical Specification
