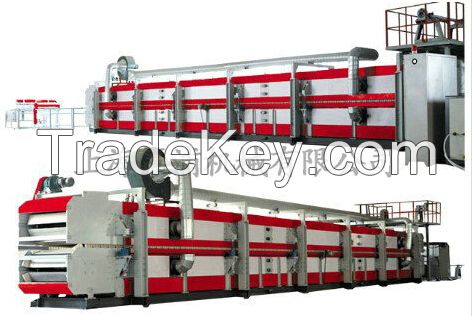

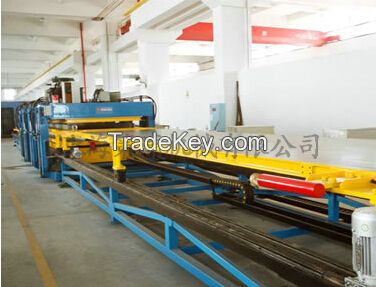

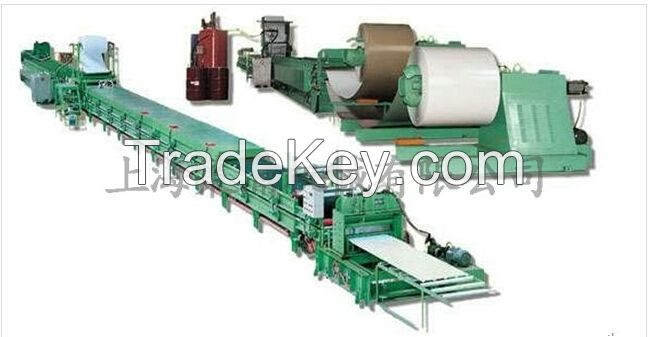

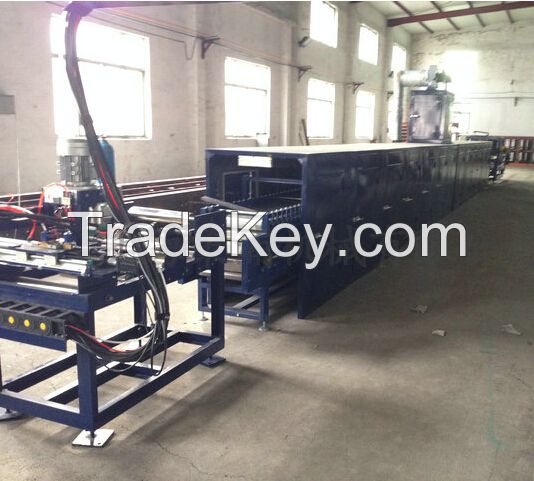

color steel heat insulation sandwich panel board production line

详情

Colored steel sandwich panel production line

Colored steel sandwich panel production line can produce PU building materials, which take high quality colored steel as upper material and hard high density PU as sandwich, and solidified by high pressure foaming and controlled by double track. The products have the advantage of fireproof, waterproof, heat insulation, good looking and long life, etc.



Double track continuous polyurethane sandwich panel production line mainly includes hydraulic uncoiler, film cutting device, rolling former, preheater unit, double track laminator, high pressure foaming machine, automatic cutting machine, cooling system, palletizing packaging. A set of continuous production line connected by data control system with unit of different function, each unit is equipped with mechanical and electrical system.



The production line is very suitable for producing large quantities of polyurethane sandwich panels for its high efficiency, good synchronism, high automation, density uniformity and foam honeycomb structure, which is the first choice for building big high quality architecture.

The capacity of production line is **8 meters per minute, the specification of composite plate as following:

Length: ***8m

Width: ***0mm

Thickness: *****0mm

The effective length of double track is *4m, total power is **0kw.



Heat insulation sandwich panel production line

Heat insulation sandwich panel production line is the equipment to produce upper and lower layer of aluminum foil, non-woven, cement mortar, paper and other soft layer, and middle layer of PU foam plastic. The sandwich panel is ****0mm thick, ***0mm wide, unrestricted long. The PU is transmitted in a certain proportion measured by metering pump of filling machine to mixing head, the lower material of sandwich panel is casted by mixed PU, together with upper material,  transmitted to lamination conveyer, foamed and solidified in chain board of lamination conveyor. The finished sandwich panel may be edge cut in production line and shaped different products after automatic cutting machine.
