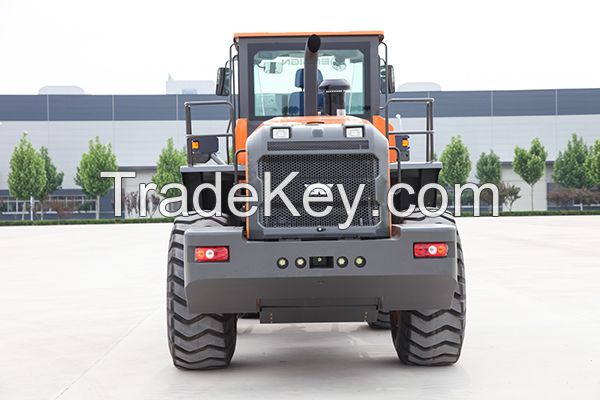

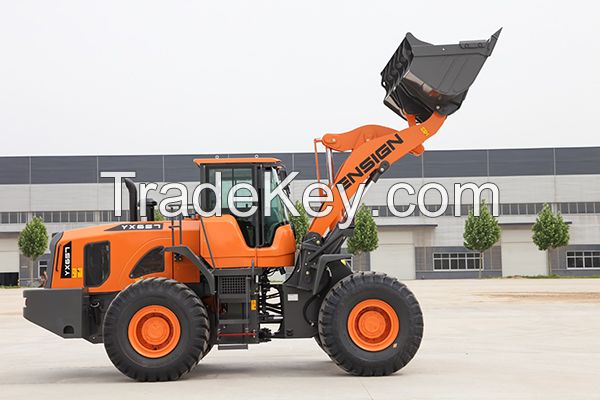

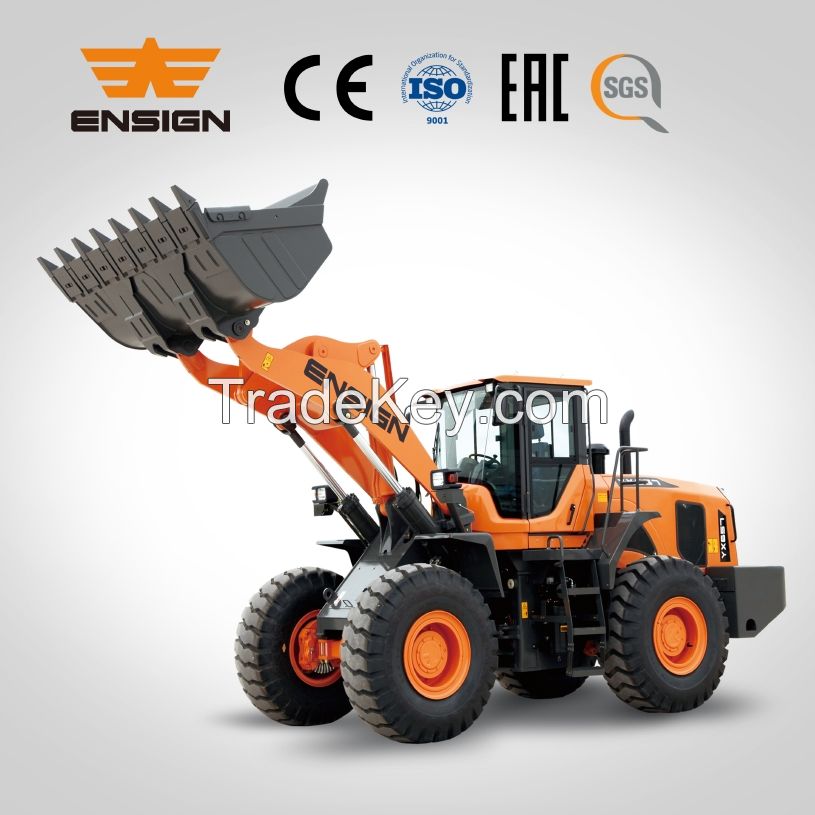

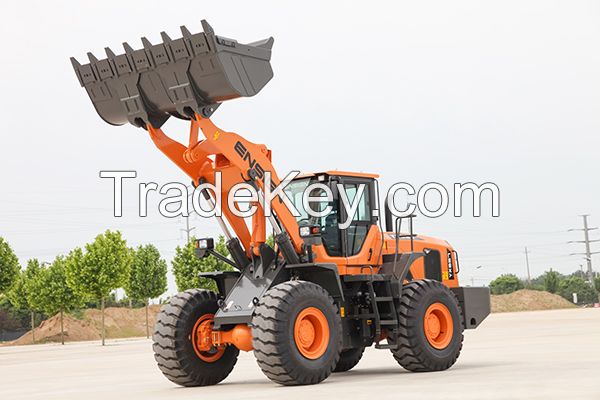

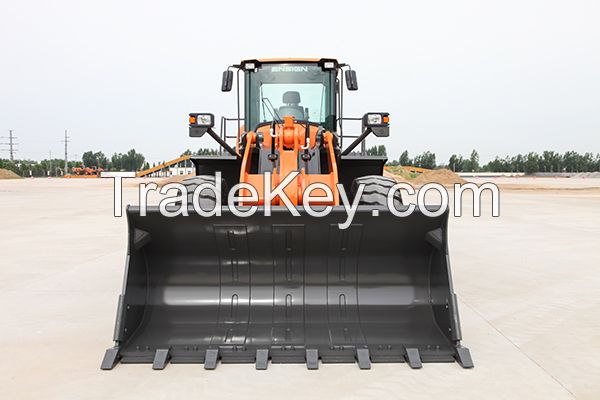

Ensign Yx657 Wheel Loader with Cummins Engine ZF Transmmison (5ton, 3.

离岸价格

获取最新报价

( Negotiable )

1 Unit Minimum Order

国家:

China

型号:

YX657

离岸价格:

( Negotiable )（面議）获取最新报价

位置:

China

最小订单价格:

最小订单:

1 Unit

包装细节:

1 Unit in 1*40hq

交货时间:

30days

供应能力:

5000 Unit per Year

付款方式:

T/T, L/C, D/A, D/P, Western Union

產品組 :

现在联系

ENSIGN HEAVY INDUSTRIES CO., LTD

China

免费会员

联系人 Mr. Sayid

No.1567, ENSIGN Street , Economic Development Zone, Changle,, Weifang, Shandong

现在联系

详情

YX**7 Wheel Loader
High-level Configuration with Comfort and Reliability

Comfort

New-type steel structure cab provides all-around clear visibility, high security and lower noise.
Long wheel base and bigger counterweight contribute to high driving stability.

Reliability

Meritor drive axle with excellent load capacity
Full load sensing hydraulic steering system is adopted for flexible steering.
Dual sealing is used for pipelines, providing high reliability.
The bottom and backside of bucket is reinforced according to rock working conditions, while the main cutting plate is made of special wear-resisting material, increasing the abrasion resistance by *0%.
Waterproof design for key circuits and power switch design upgrade the overall service life and security. Self-developed digital instrument panel provides excellent human-machine interaction.

High-level Configuration

Cummins diesel engine or Shanghai diesel engine is adopted for strong power and high reliability.
ZF fixed shaft electro-hydraulic shifting transmission has the KD gear shifting function, featuring flexibility and efficiency.
Pilot controlled working devices system is adopted for easy operation and high efficiency.

Technical Parameters


Bucket capacity	m3	3.0(standard bucket)	Total cycle time(lift, dump& lower)	s	≤*1
Rated load	kg	***0	Dump height/Dump angle	mm/ °	**5/1
Overall operating weight	kg	****0	Dump distance/Dump angle	mm/ °	**6/1
Max. traction force	kN	≥**0	Min. ground clearance	mm	**5
Max. breakout force	kN	≥**0	Wheel base	mm	***0
Grade ability	°	*0	Wheel tread	mm	***0
Min. turning radius(outer side of the bucket)	mm	***2	Departure angle	°	*0
Min. turning radius(outer side of the tire)	mm	***8	Steering angle(left & right)	°	*8

Overall dimension (standard configuration) mm ***0****4****0
Core components

Engine		Drive System
model	Cummins 6CTA8.-C5 Or Shangchai SC1CB**0G2B1	Torque converter type	Single stage, three elements (single turbine)
type	Vertical, in-line, direct injection, water-cooling, four-stroke, supercharged	Transmission type	Fixed shaft
Rated power	2(Shangchai) 0(Cummins)	Gears	4 forward , 3 reverse
		Main drive type	Spiral bevel gear
		Hub reduction type	Planetary, first reduction
		Drive axle	Meritor axle
Steering System		Braking System
type	Load sensing hydraulic	Service brake	Air-over-oil
oil pump type	Gear pump	Parking brake (emergency brake)	Manual pneumatic control drum brake
Working Device Hydraulic System		Tire
Control type	Joystick	Specification	3.**5
Oil pump type	Gear pump	Tread pattern	General pattern

国家:	China
型号:	YX657
离岸价格:	( Negotiable ) （面議）获取最新报价
位置:	China
最小订单价格:	-
最小订单:	1 Unit
包装细节:	1 Unit in 1*40hq
交货时间:	30days
供应能力:	5000 Unit per Year
付款方式:	T/T, L/C, D/A, D/P, Western Union
產品組 :	-
