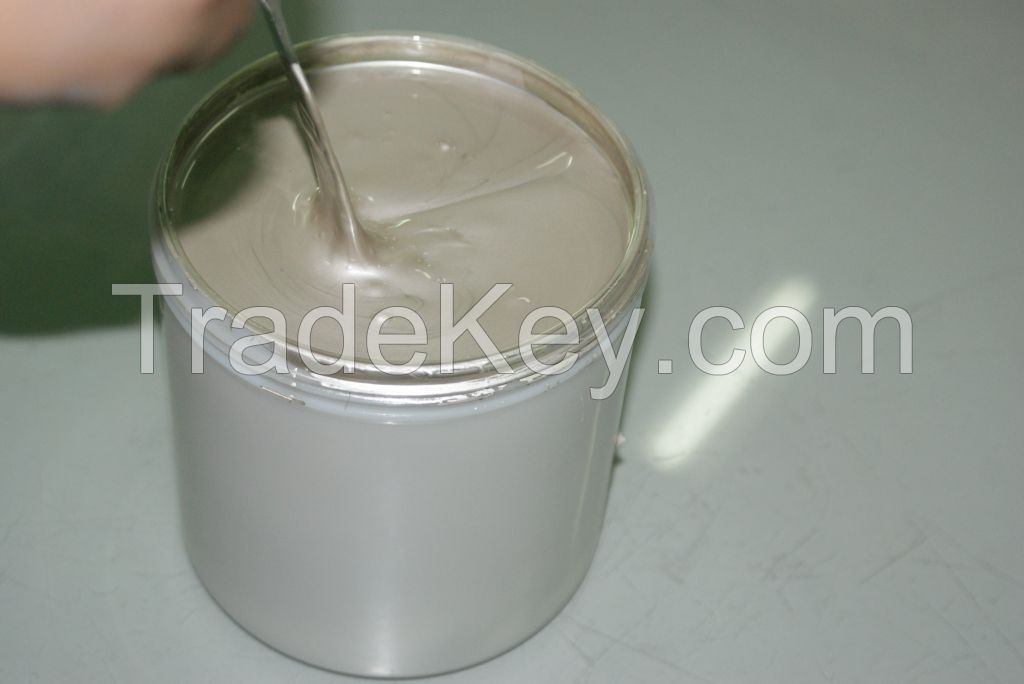

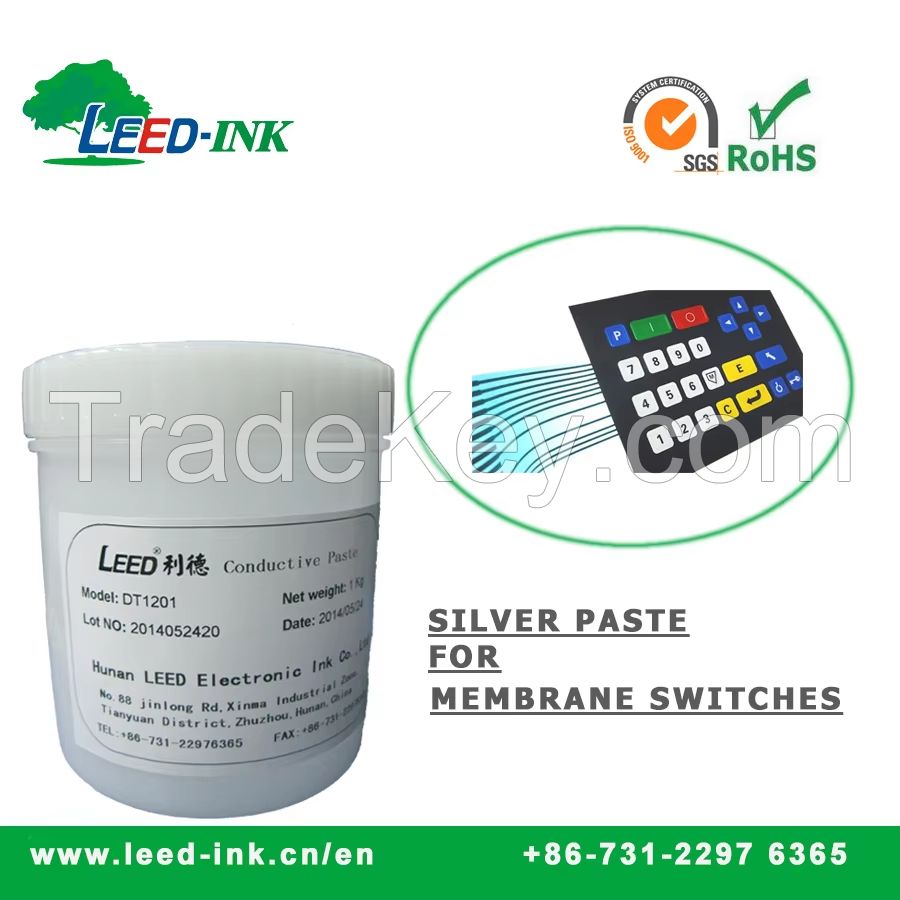

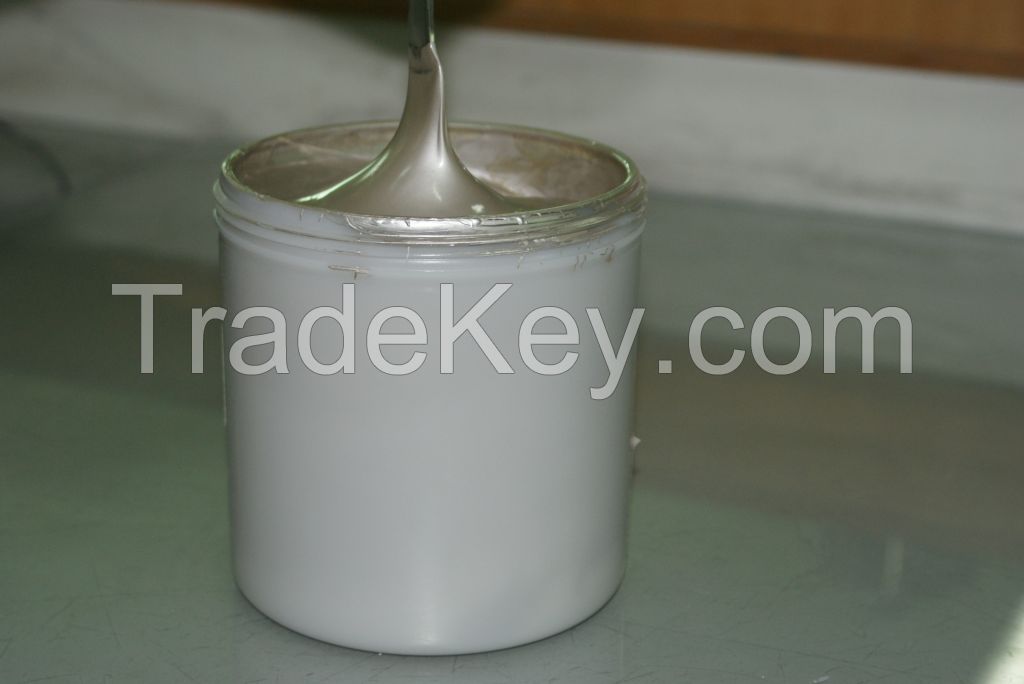

Screenable Silver Ink For Membrane Switches
(DT***1)
Description
DT***1 is a low temperature solidified silver paste designed for membrance switches. It through making silver, choosing high molecular polymer resin, solvent and additive, modification research, solved therelation between high adhesion of film and heat-drying, and the problem between homogenization of thin-layer and change of film shape. This product has features of low heat-drying temperature(*0~**0°C), short-drying time(*0~*0min), low resistivity, good adhesion, superior abrasion resistance and creasability.
Typical Application
Membrane Switches Printed Antennas Heating Element Flexible Circuits RFI Shielding
Typical Properties
|
Performance |
|
|
Substrate |
PET or PI film |
|
Screen Mesh |
**0~**0 polyester/stainless steel screen |
|
Heat Resistance |
*5°C,**0h, R<*0% |
|
Moisture Resistance |
*5°C,*5%RH,**0h, R<*0% |
|
Curing |
**0°C/*0min,**0°C/*0min |
|
Sheet Resistance |
≤*0mΩ/sq(**0 mesh) |
|
Adhesion |
no exfoliation(3M**0 adhesive tape**0s,**5 degree angle,*0cn/s) |
|
Hardness |
≥2H(*5 degree angle, push cured surface by pencil with the force of 2kg) |
|
Heat/Cycle Resistance |
RC in resistivity**0%(**0°C**0°C, *0min/cycle) **0cycles |
|
Flexibility |
R/R<**0%(leading wire 0.6mm****0mm,bend 2kg*1min**0times) |
|
Test of Flexibility |
On PET film (**0µm), leading wire 0.6****0mm, bended for 4 times, infolding/2kg, out-folding/2kg, 1min/cycle, test RC in resistivity after *0 cycles |
1. Precautions: This product contains organic solvent. Harmful if swallowed inhaled, or absorbed through skin. Wash thoroughly after handling. Avoid contact with eyes, skin, and clothing. Keep container tightly closed when not in use. Use with adequate ventilation. Avoid breathing vapor.(See LEED material safety data sheet for current safety and first aid instructions.)
2. This product is supplied ready for use and hence does not require dilution, although it can be thinned with less than 2% if preferred, too much thinner will affect directly performance of paste.
3. The thickness of printing line should over 3µm, or result in paste instability.
4. Store at 4~*5°C shelf life for this product is 6 months from date of qualification under original seal. Keep from freezing.
NOTE:The product specification will not stand for the test performance of the batch paste, the actual tested result of paste batch perfomance shall be deemed the original. If special requirement ,please contact with LEED marketing department.
