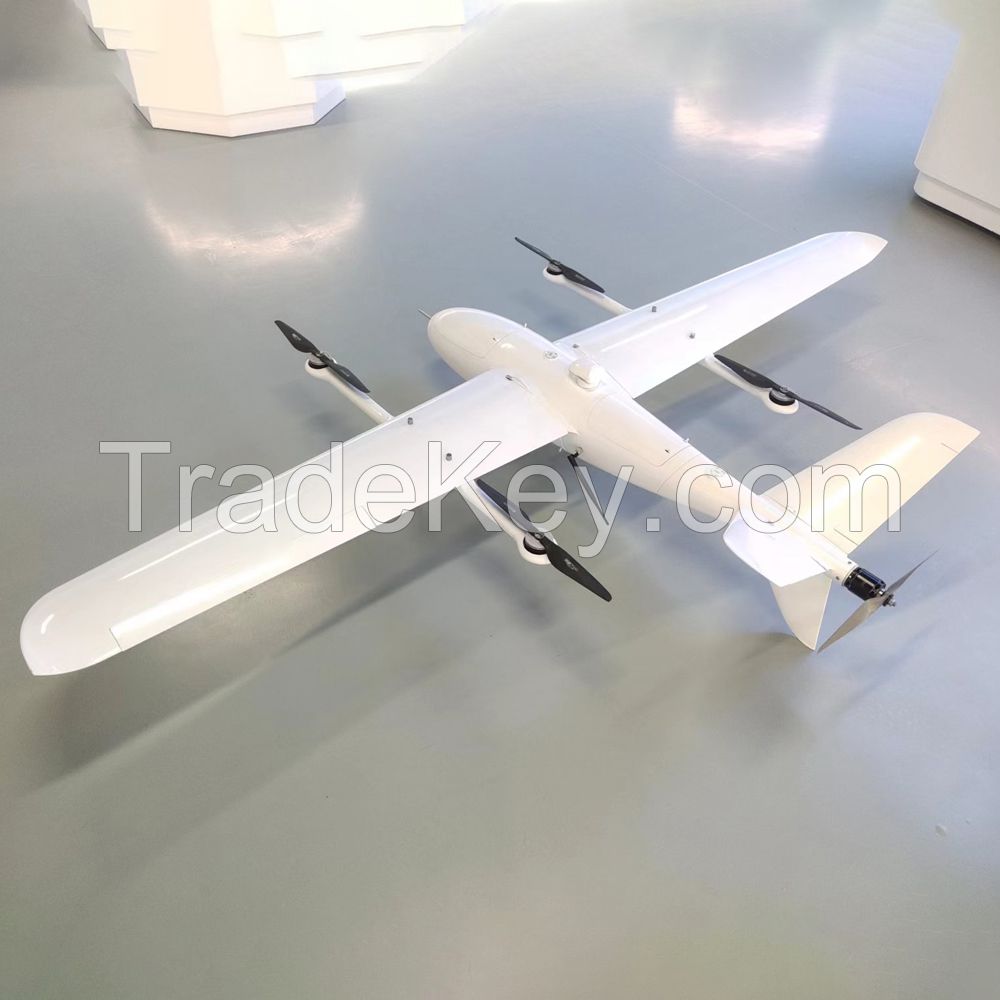

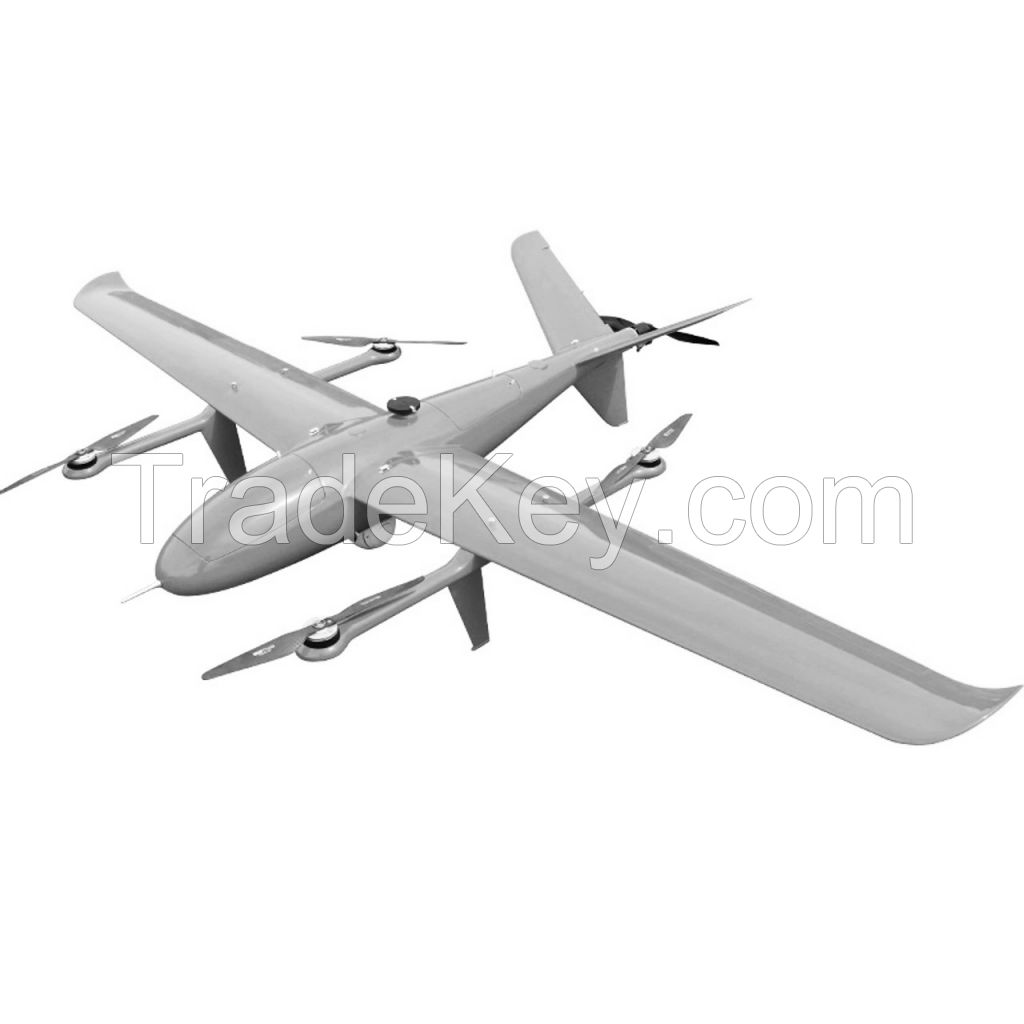

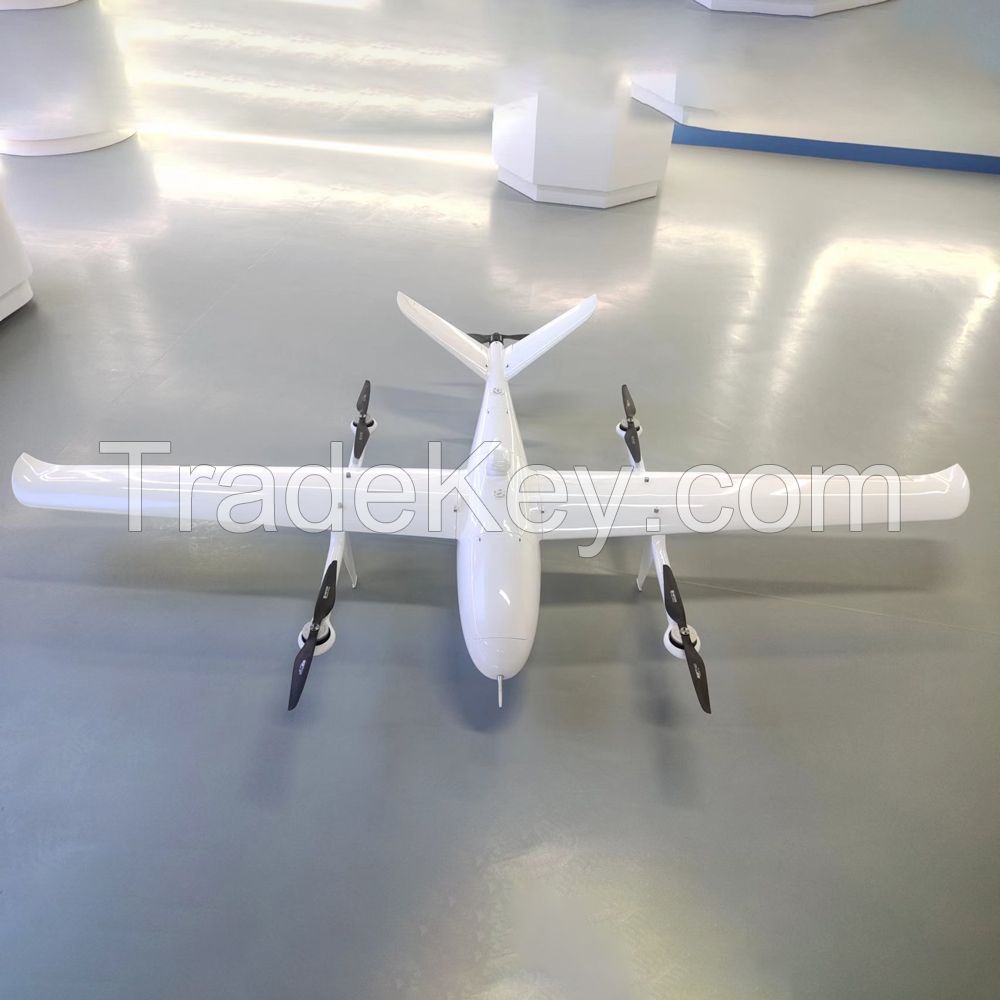

Airmobi V25 Full Electric VTOL Drone - 3 hours @ 2kg

* 4 hours and 20 minutes flight endurance (260 minutes) when unloaded
* 3 hours and 30 minutes flight endurance (210 minutes) with 1.2kg payload
* 3 hours flight endurance with 2kg payload
* 2 hours flight endurance with 2.5kg payload

Airmobi V25 is a long-endurance electric VTOL drone designed for various applications including long-range security and surveillance, search and rescue, and survey and mapping. It features a unique design with four lift motors and one fixed-wing motor, allowing it to ascend vertically like a helicopter and transition to horizontal flight as a push-prop fixed-wing aircraft.

The carbon fiber airframe makes the drone rugged and durable for long flights, while the outstanding aerodynamic design enables it to fly for over 3 hours and 20 minutes with a 1.2kg payload. The maximum payload can be up to 2.5kg, and the maximum flight time can be up to 4 hours.

Airmobi V25 VTOL drone also has a modular design with easily replaceable parts, making maintenance a breeze. Its patented connector system allows for easy assembly and disassembly without any tools. With its high-efficiency power configuration, the drone can fly for extended periods of time.

1. Material: Carbon fiber, Composite Materials (fiberglass, Kevlar, PVC).
2. Empty weight: 3.45kg
3. Max. takeoff weight: 12.5kg.
4. Max. payload capacity: 2.2kg (standard load: 1.2kg).
5. Wing area: 52dm2.
6. Wing loading: Approximately 240g/dm2@12.5kg.
7. Flight endurance: 220min @1kg payload
8. Standard cruising speed: 20m/s@12.5kg (recommended operating speed of 21m/s@12.5kg in mountainous areas).
9. Max. cruising speed: 93.6km/h (26m/s).
10. Standard battery configuration: 22.8v/25Ah*2 (45.6V).
11. Max speed: 122km/h (approximately 34m/s).
12. Stall speed: 15.5m/s@12.5kg (16m/s@ roll 25°/pitch 15°).

1. Minimum turning radius: 120m@19m/s (roll 18°) (minimum safe turn radius on plateau is not less than 200m).
2. Maximum flight altitude: 4800m.
3. Wind resistance in fixed-wing mode: Not less than wind grade 6 (gust grade 7).
4. Wind resistance in rotor take-off and landing mode: Not less than wind grade 4 (gust grade 6).
5. Operating temperature: -20℃~45℃;
6. Waterproof function: It is able to fly in light rain (safe operating time greater than 10min).
7. Emergency operation time of rotor: Not less than 6.5min (when rotor battery is independently powered, non-standard propulsion configuration).
8. Take-off and landing mode: Vertical take-off and landing.
9. Rotor blade size for vertical take-off: 16/17 inches (recommended).
10. Fixed-wing tail pusher propeller blade: 15~18 inches (recommended).
11. Maximum thrust-to-weight ratio for fixed-wing: 0.6 (standard configuration).
12. Plateau performance: Passed plateau test (for high-altitude standard propulsion configuration, please contact the manufacturer).
13. Standard empty takeoff weight: Approximately 11kg.
14. Safe voltage when entering landing approach: Not less than 44V (for Gens Ace high-voltage battery).
15. Wing installation angle: 2°.
16. Number of airspeed tubes installed: 2 (standard with a single airspeed tube hole).
17. Whether to support the system for uninterrupted power switching of power battery packs: Yes (non-standard equipment).

Recommended Power Setup (Not included):

T-motor VTOL lift motor x 4
T-motor 60A ESC for lift motor x 4
T-motor 1654 Carbon Fiber Propeller x 4
KST Servo x 4
T-motor AT Forwarder Motor x 1
T-motor ESC for Forwarder Motor x 1
17×12 Carbon Fiber Propeller x 1
CUAV V5 Autopilot x 1
Radio System x 1
Tattu 25000mAh 6s HV Lipo x 2
Battery Charger x 1
Build Kit x 1
Aluminum Transport Case x 1
Assembly, Tuning & Flight Test x 1
