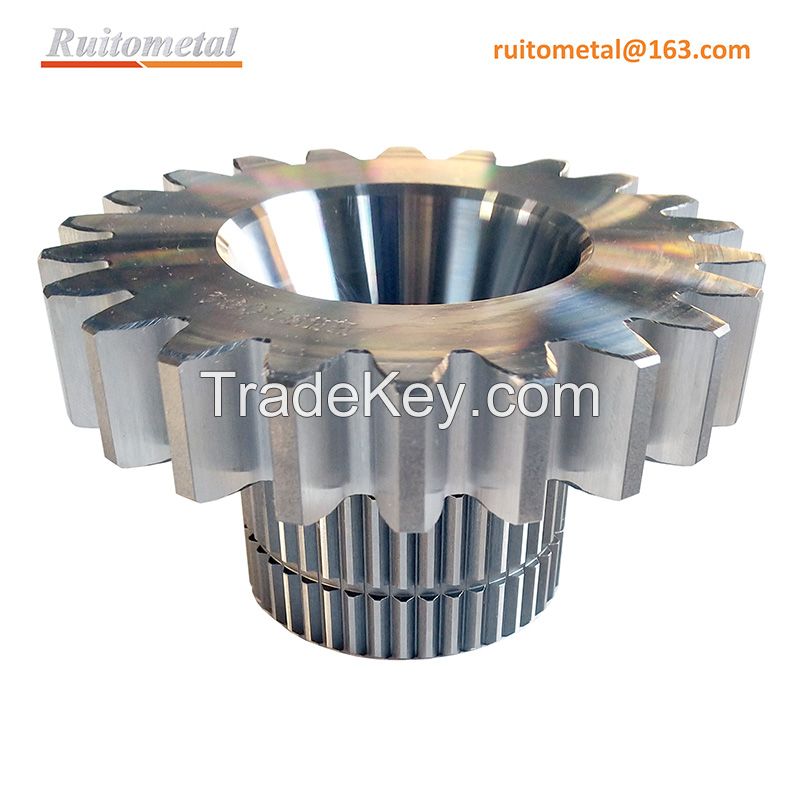

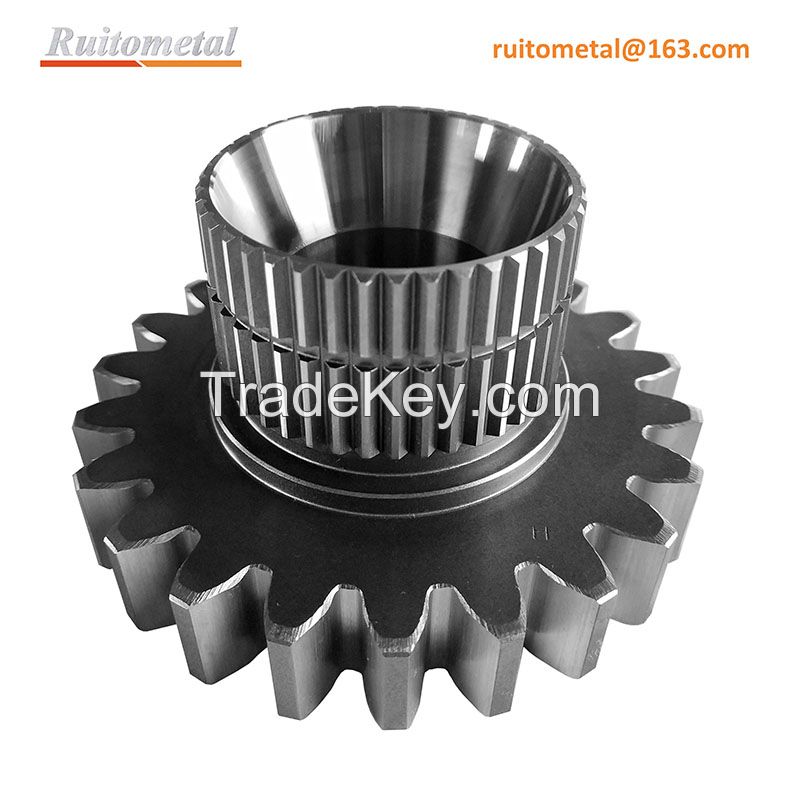

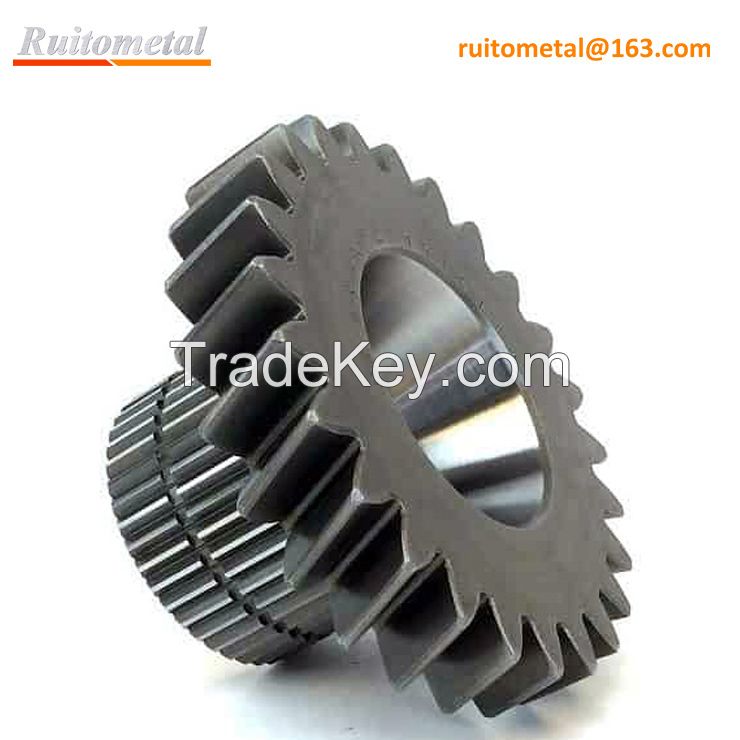

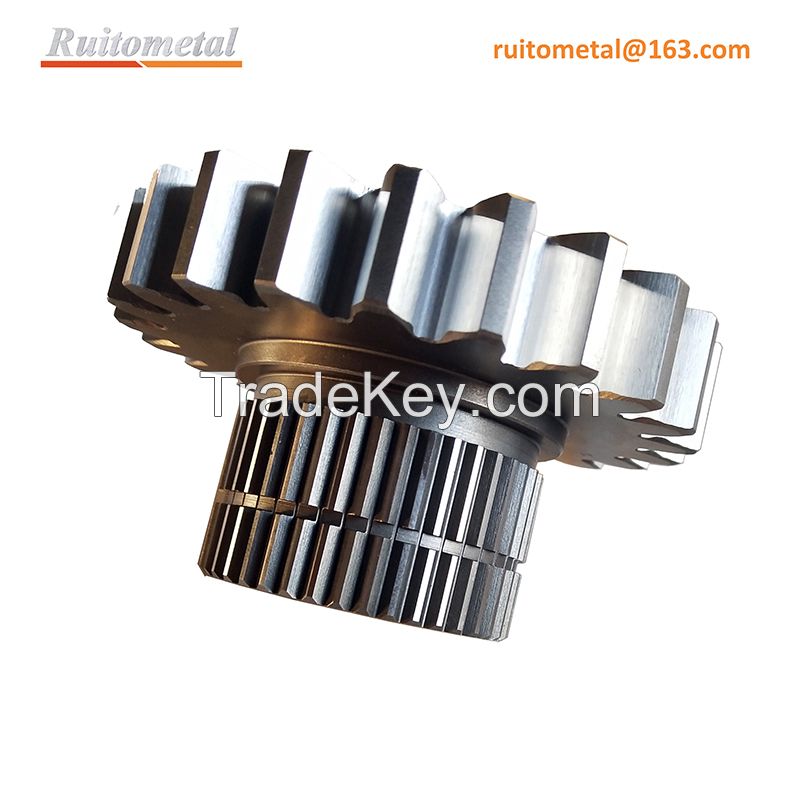

Chelsea Pto Input Gear Ah P/N 5P1004 Power Take-off Gear

详情

Chelsea 442 Series AH 5-P-1004  Input Gear

Weight: 2.44 LBS,  DP6,  8 spur teeth, 42 spline teeth

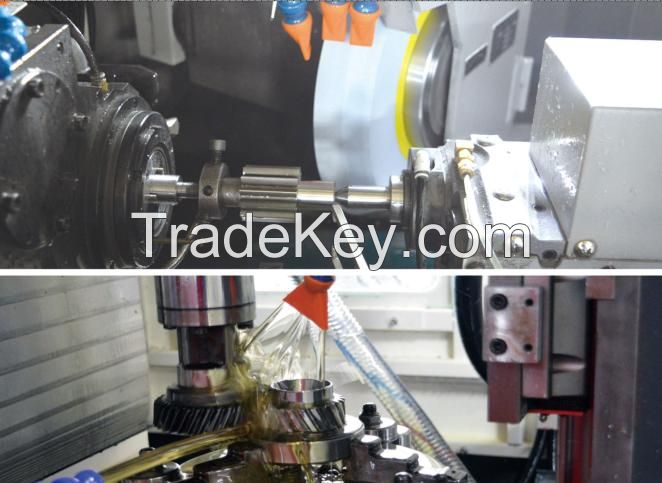

surface hardness: 56-62 HRC tooth process: hobbing,shaving, and tooth grinding if required heat treatment: isothermal normalizing, carburizing case depth: 0.5 1.2mm accuracy: 6 8 material: 8620H, 20CrMnTi or other alloy steel your required inner hole ellipticity: up to 0.005mm







PTO (Power Take-Off) gear is a critical component in machinery that transfers power from an engine or motor to an external device or attachment. The PTO system allows the engines power to be used for operating equipment such as hydraulic pumps, generators, or agricultural implements. The gear is part of the PTO assembly and is responsible for transmitting rotational force from the engine to the PTO shaft.







key Features of a PTO Input Gear:



Power Transmission: The gear connects to the engine or transmission and transfers rotational power to the PTO shaft. Gear Ratio: The gear ratio determines the speed and torque output of the PTO system. Durability: Made from 8620H or 20CrMnTi materials (e.g., hardened steel) to withstand heavy loads and continuous operation. Agricultural Machinery: Used in tractors to power implements like mowers, balers, and tillers. Industrial Equipment: Powers hydraulic pumps, compressors, or generators. Trucks and Vehicles: Operates auxiliary equipment such as dump trailers or snowplows. If you have a specific question about a PTO gear (e.g., installation, troubleshooting, or specifications), feel free to provide more details!
