Usage:
The

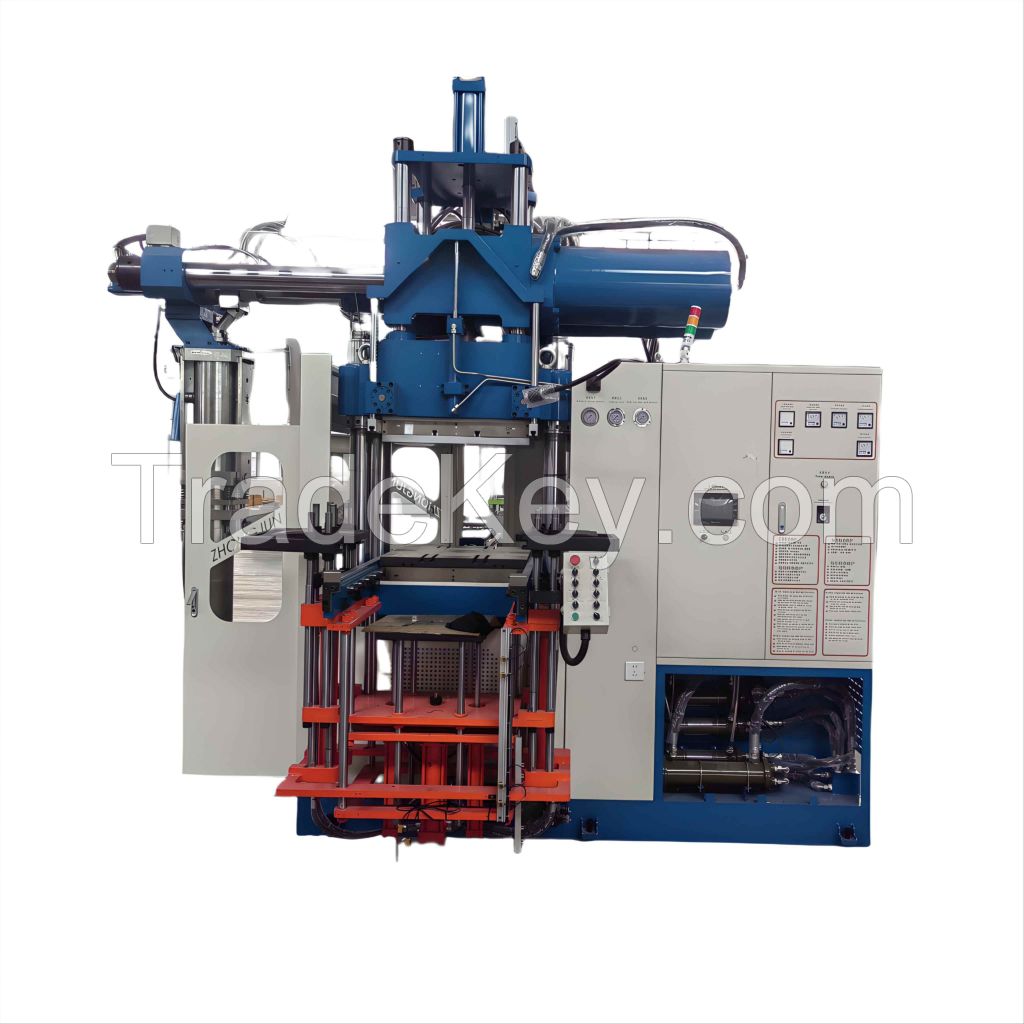

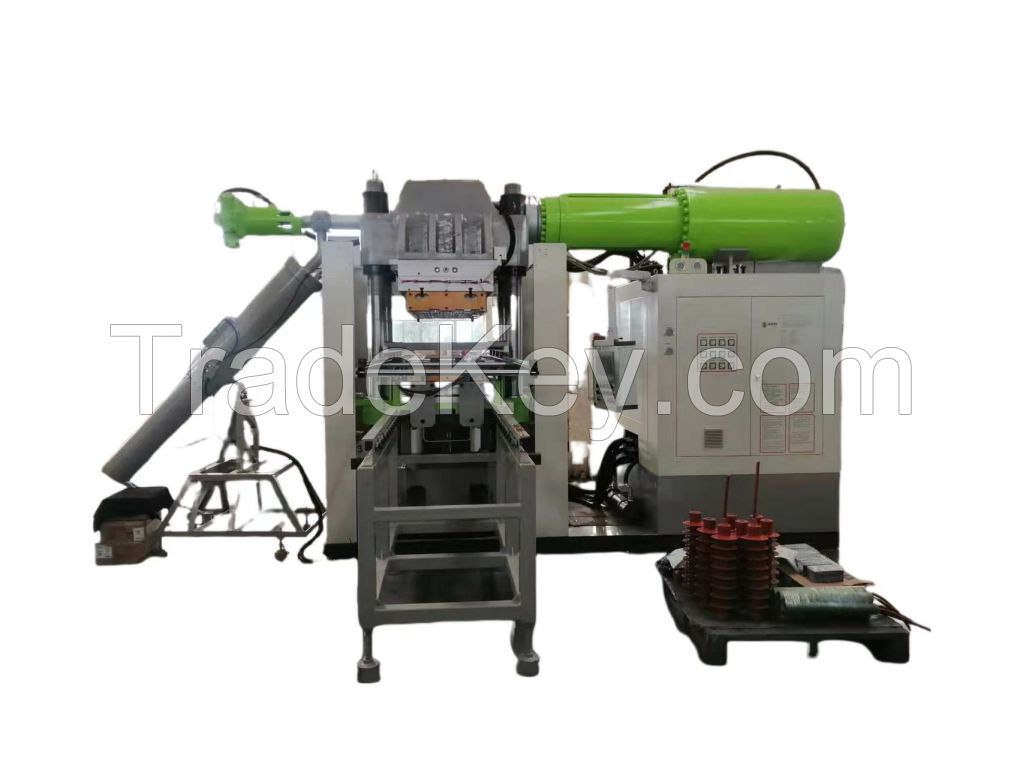

main function of full automatic plate vulcanizing machine is to
provide the pressure and temperature required for vulcanization of
rubber products.
Vulcanizing is a very important step in the production process of
rubber products. Rubber products undergo cross linking reactions of
rubber molecules under high temperature and pressure, thereby
enhancing their physical properties and chemical stability.
This equipment has the advantages of high pressure per unit area of
the heat plate, reliable operation, and low maintenance. According
to the structural form of the rack, flat vulcanizing machines can
be divided into two types: Vertical and
Horizontal.
Features:
The special design of
the oil system, good stability, stable conversion, low failure
rate, reliable, and guaranteed quality.
The high-precision
steel structure of the access template is ground and nitrided
to achieve a high-precisionplatform surface.
With chronic proofing function, the proofing is more accurate,
suitablefor a variety of different molds to match.
Accurate and safe positioning of the mold in and out, ensure that
the mold is not damaged.
It is suitable for various two-layer or multi-layer molds, and has
rapid production capacity.
Technical Parameters:
| Type | XRH200T | XRH300T | XRH400T |
| Clamping Force | 200 | 300 | 400 |
| Opening Stroke | 250 | 300 | 300 |
| Heating Plate Dimension | 560*600 | 700*700 | 750*800 |
| Main Cylinder Diameter | 360 | 450 | 500 |
| Motor Power | 7.5*2 | 7.5*2 | 11*2 |
| Heating Power | 16.4*2 | 24*2 | 31.2*2 |
| Machine Dimensions | 3.2*2*2.2 | 3.5*2.3*2.4 | 3.8*2.6*2.7 |
| Whole Weight |
4.5 (Single) 8 (Double) |
6.5 (Single) 12 (Double) |
8.5 (Single) 16 (Double) |
