产品规格

Product : Miniature circuit breaker Color : White and blue or black Certificate : SAA/CE Keywords : MCB Mechanical Life : 10000 times Feature : Protective

详情

AC Miniature Circuit Breaker Application
Main type:
1. C type mainly used b.D type mainly used for Dynamic protection.
2. The circuit breaker of Rated currentis: 16A,20A,25A,32A,40A,50A,63A,80A,100A,125A.
3. The poles of circuit breaker is: single, 2P,3P and 4P.
4. The circuit breaker is installed with 35X7.5 standard rail.
5. Rating of main Circuit of Circuit Breaker as table 1.
6. Overcurrent tripping characteristic as table 2.
Table 1
Rated current(A) Pole Rated voltage(V) Rated short-circuit breaking capacity
125/250/375/500 Test line expected current(A) Power factor
16-125 1,2,3,4 10000 0.45~0.50

Table 2
Ambient air humidity I/In Expected results of test time Initial state
In63A In63A
30±2 1.05 No tripping within an hour. No tripping within two hour. Cold start
1.3 Tripping within an hour. tripping within two hour. Hot start
5~45 8.0~12.0 (C ) 0.2s tripping Cold start
10.0~14.0(D) 0.2s tripping

7. Power frequency voltage:After Moisture and heat resistance,Circuit breaker can withstand 2500V power frequency withstand voltage test for 1 minute without flashover drink breakdown.
8. Mechanical and electrical life:The electrical life of the circuit breaker is 10000 times, other machine life is 1500 times.


Appearance and packaging size
9. Anti-moist heat type: Type 2(temperature is 55, relative humidity is 95%).
10. Connect cable: use terminal with clamp, fixed cable cross section up to 50mm².


NL7-63 Series DC Miniature Circuit Breaker Application

  NL7-63 PV NP DC breaker supplementary protectors are designed to provide overcurrent protection within appliances or electrical equipment, where a branch circuit protection is already provided or not required. Devices are designed for direct current (DC) control circuit applications.



  NL7-63 series have protective function as shortage as overload,  which are used in lighting distribution system in commerce and dwelling, and protect fractional electric motors. They also have many merits of high protective grade(up to IP20), high breaking capacity, reliable sensitive action, convenient, multi pole assembling, long life etc.
  They are mainly adapted to the circuit of AC 250V in single pole, 415V in double, three, four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal conditions.



Specifications
NL7-63 PV Series Circuit Breaker NL7-63

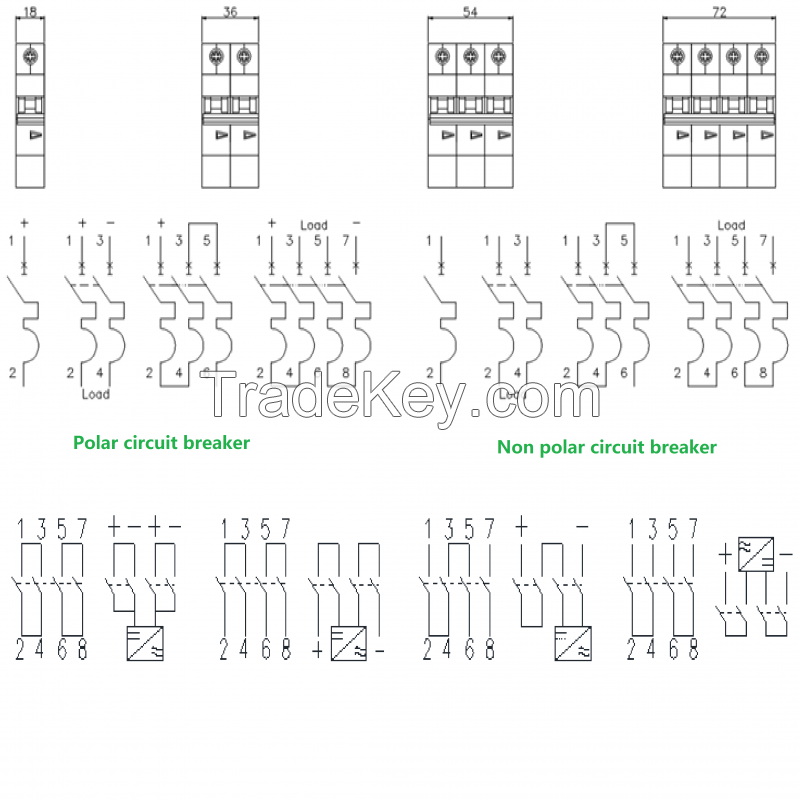

Number of Poles 1P, 2P, 3P, 4P
Framedegree rated current (A) 63
Ue Rated operating voltage (V DC) DC12V,DC24V,DC48V,DC80V,DC125V, DC250V,DC500V,600V,DC750V,
DC800V,DC1000V,DC1200V

Rated Current In (A) 6-10-16-20-25-32-40-50-63
Ated Impact voltage Uimp (kV) 4
Ultimate breaking capacity Icu (kA) 6
Run breaking capacity Ics (%Icu) 75%
Mechanical durability 20000 cycles
Electrical durability 3000 cycles
Curve type B,C,D
