离岸价格
获取最新报价2.05 ~ 0.98 USD / Pair ( Negotiable )
|100 Pair Minimum Order
国家:
China
型号:
3P
离岸价格:
2.05 ~ 0.98 USD / Pair ( Negotiable ) 获取最新报价
位置:
China
最小订单价格:
2.05 per Pair
最小订单:
100 Pair
包装细节:
Standard packing
交货时间:
5-15days
供应能力:
10000 Pair per Month
付款方式:
Other, PayPal, Western Union, T/T
產品組 :
联系人 Mr. bill
Changan, Dongguan, Guangdong

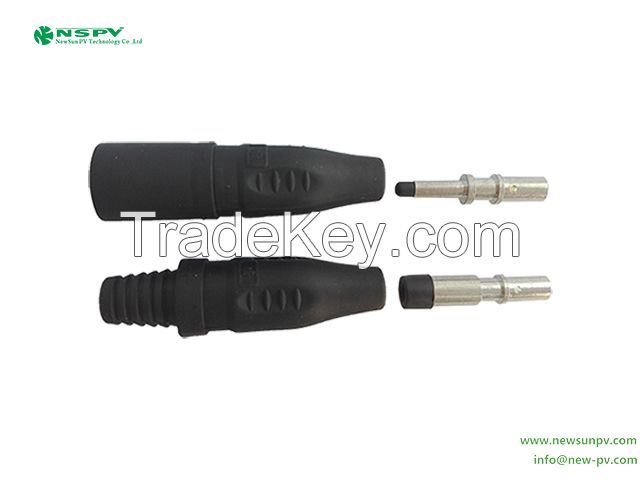

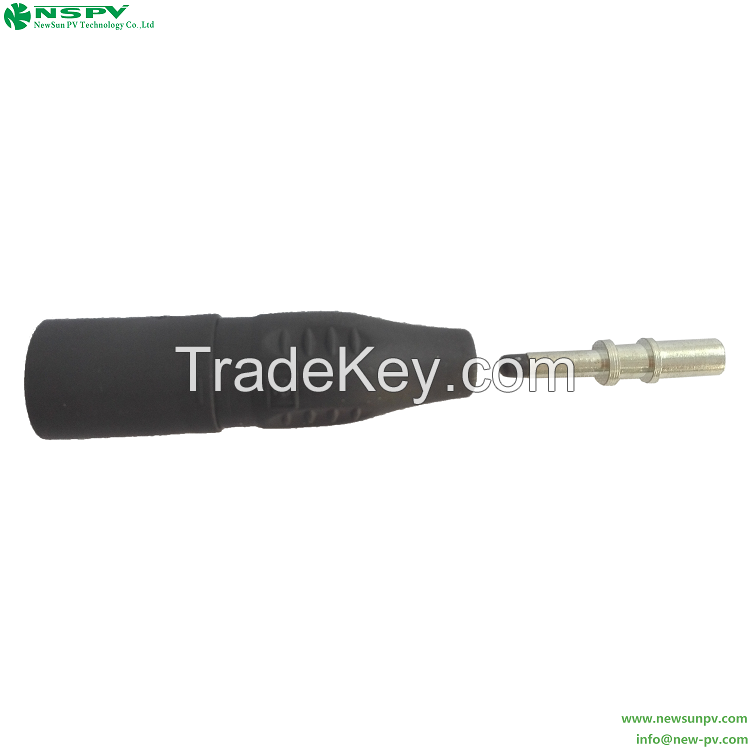

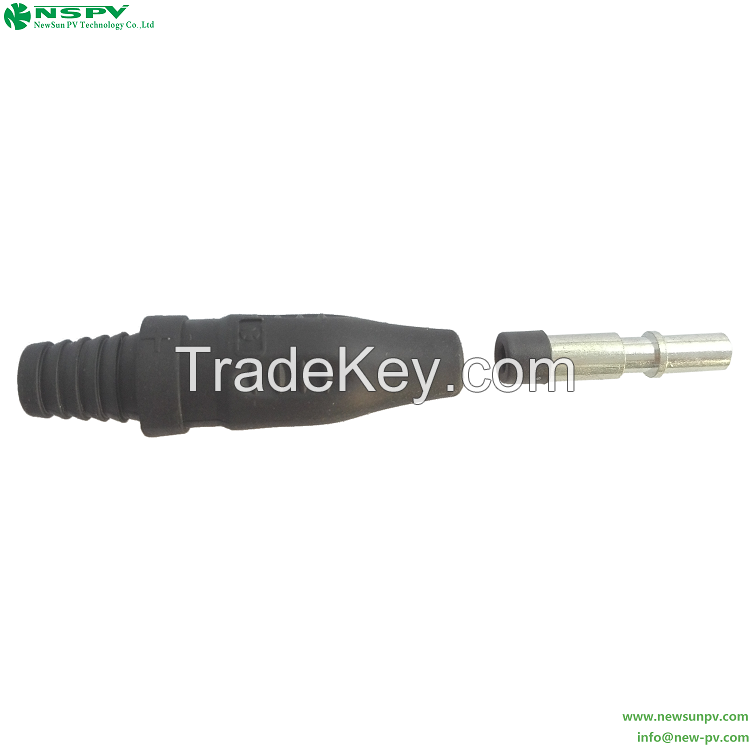

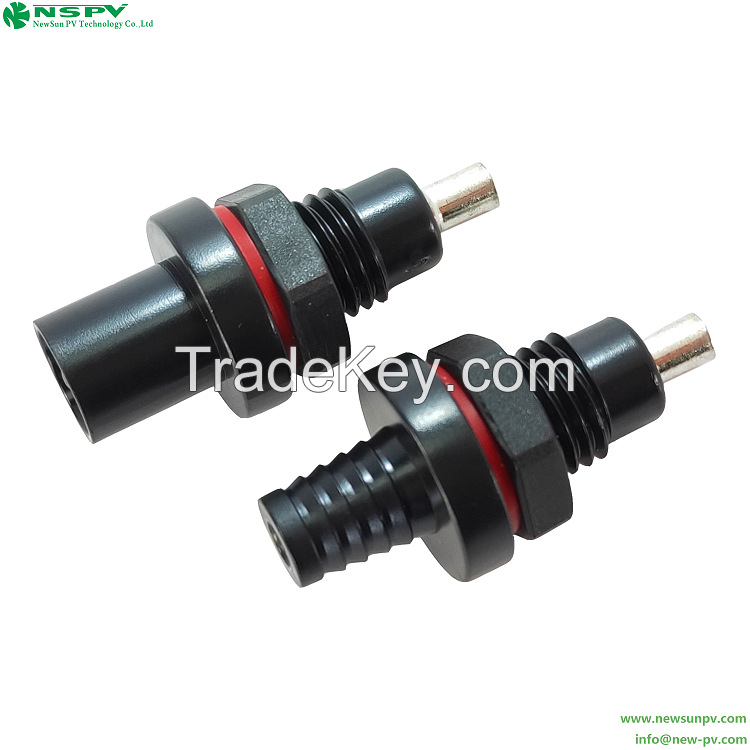

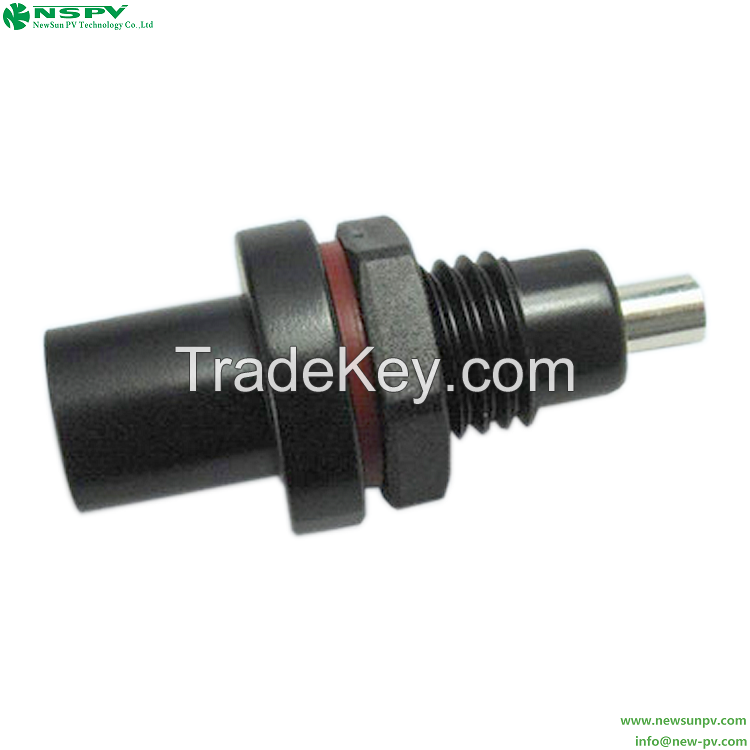

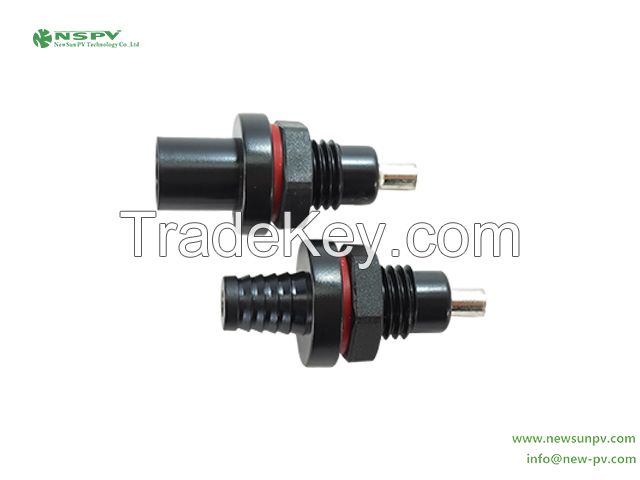

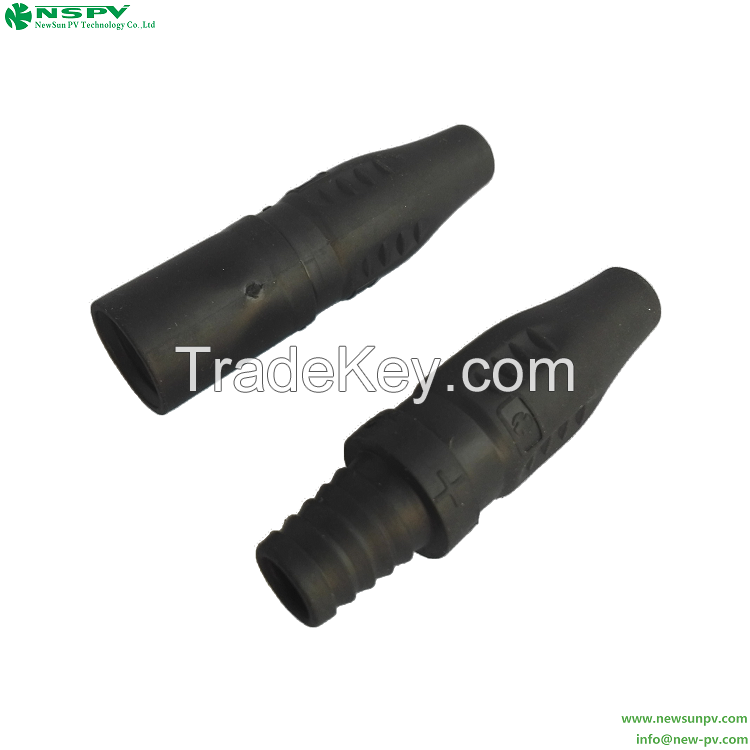

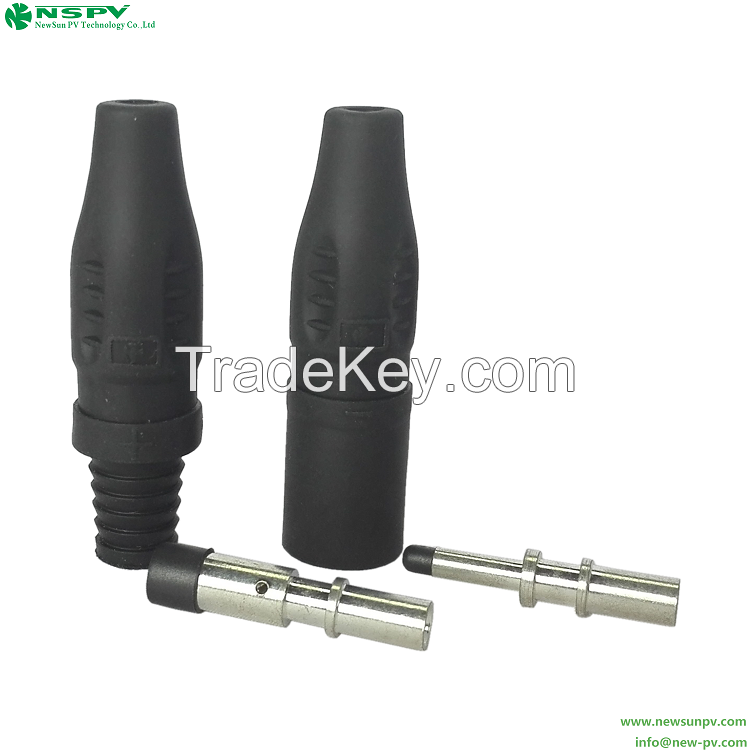

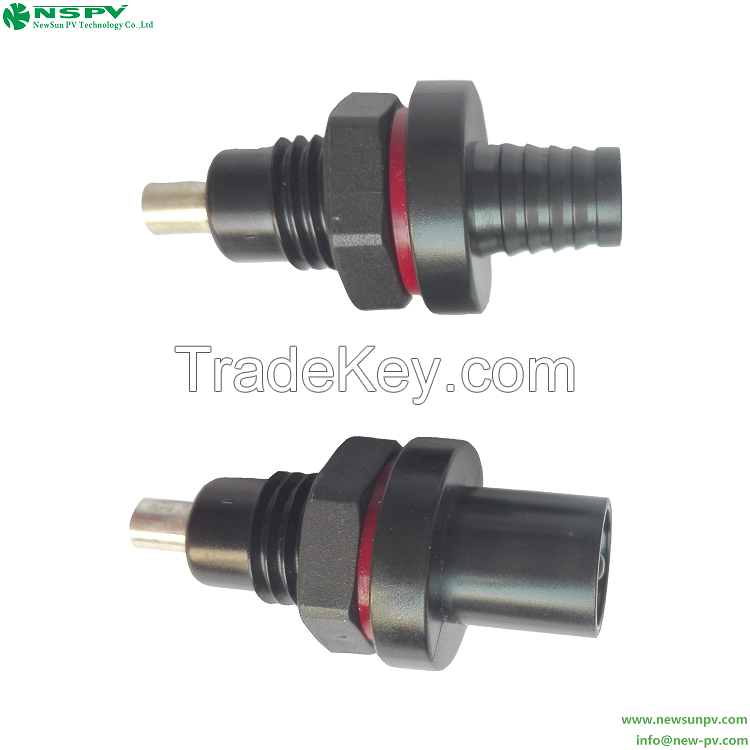

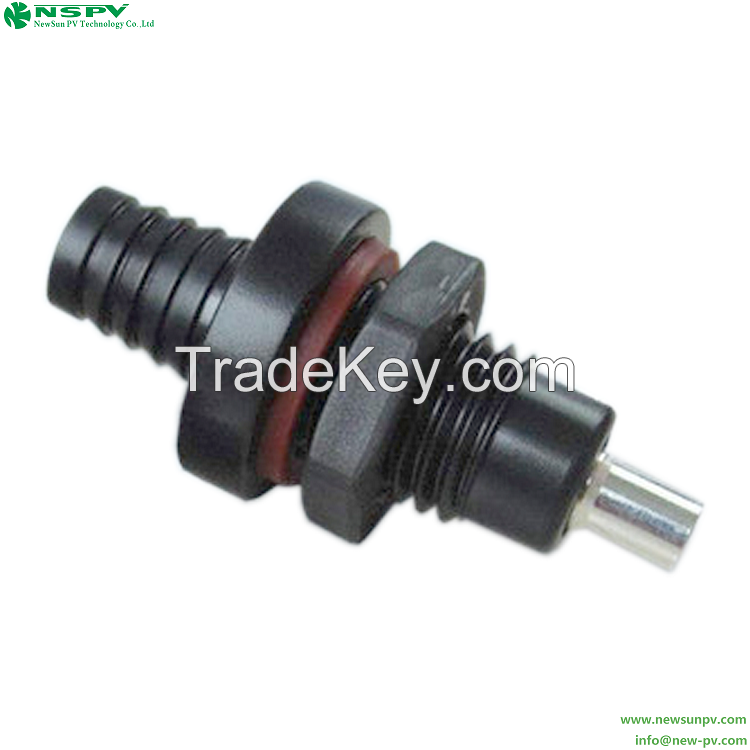

| PV3.0 Panel Connector(For Rubber) | |||||||||
| Product Specifications | |||||||||
| Insulation material | PPE/PA | Safety degree | II | ||||||
| Rated current | 30A | Flame class | UL94-V0 | ||||||
| Rated voltage | 1000VDC | Insertion force/Withdrawal force | ≤50N / ≥50N | ||||||
| Test voltage | 6kV(50Hz,Imin) | Ambient temperature range | -40℃…+85℃(IEC) | ||||||
| Typical contact resistance | ≤0.25 mΩ | Suitable cable cross sections | 2.5~6mm2 /14~10AWG | ||||||
| Contact material | Copper,Tin plated | Connecting system | Crimp connection | ||||||
| Degree of protection | IP67 | Upper limiting temperature | 110℃(IEC) | ||||||
| Overvoltage category/Pollution degree | CATIII/2 | ||||||||
| 国家: | China |
| 型号: | 3P |
| 离岸价格: | 2.05 ~ 0.98 / Pair ( Negotiable ) 获取最新报价 |
| 位置: | China |
| 最小订单价格: | 2.05 per Pair |
| 最小订单: | 100 Pair |
| 包装细节: | Standard packing |
| 交货时间: | 5-15days |
| 供应能力: | 10000 Pair per Month |
| 付款方式: | Other, PayPal, Western Union, T/T |
| 產品組 : | Panel connector |
