XQV Corrugated Duct Machine

详情

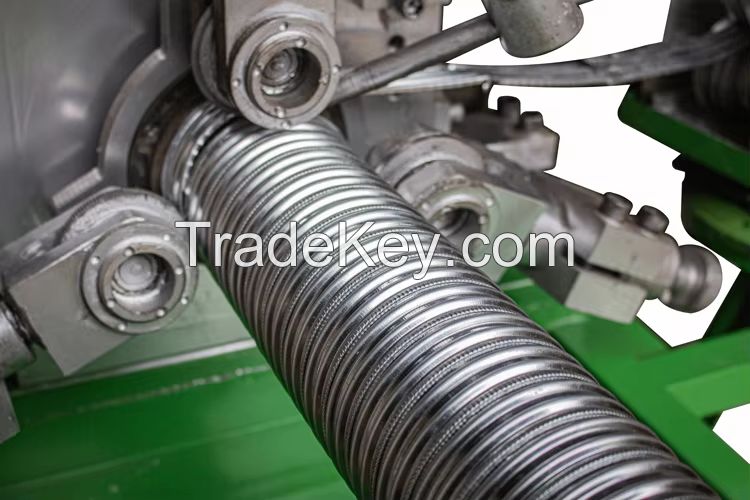

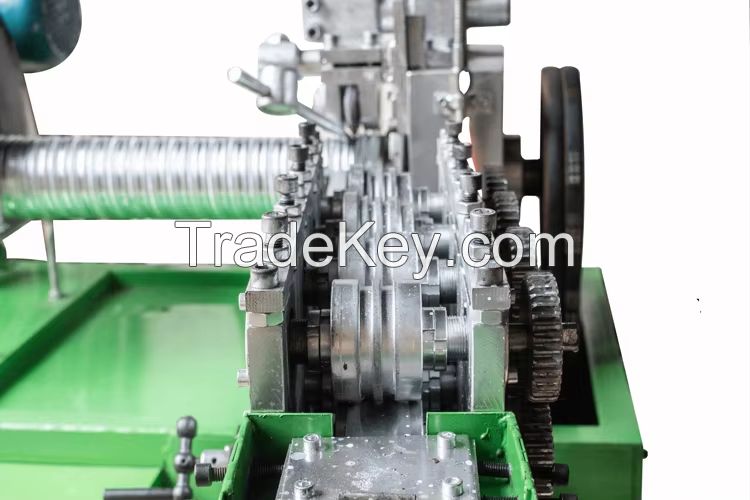

Product Name:XQV J**0 Series Corrugated Pipe Machine The XQV J**0 series corrugated pipe machine is a device for producing metal corrugated  pipes for pre - stressed concrete reserved tunnels. It coils the galvanized steel strip into a double - wave shape, and then carries out bottom cutting and forging to form the corrugated pipe. It has the advantages of high efficiency, small size, convenient operation and     maintenance, and adjustable speed. It is suitable for centralized use on construction sites  and in factories. Performance and Advantages 1. Easy to Learn and Understand：It only takes three to five days to learn with the guidance of professional system technicians in the factory.
2. Material - saving：With the steel of (0.*7 × *5.6), it can produce more    duct pipes. For other models of machines, such as the YJG**0 needle    machine, the **5 type, etc., the distance between two corrugations is     generally between *4 and *6 millimeters, and there are about *0 turns per meter of the duct pipe. While for this machine [LCB - 7A type], the        distance is between *6.5 and *8.5 millimeters, and there are about *5 turns per meter of the duct pipe.
3. High Speed with a Stepless Speed - Regulating Motor
1. The model of the main motor is YCT**0 - 4A.
2. Power: N = 4kw (5.5kw)
3. Power of the cutting machine: N = 2.2kw
4. Power of the pump: N = *0w
5. Water tank capacity: *2 liters
6. (For all - round workers: Dia*0: ***0 m / *2h; Dia*0: ***0 m / *2 h)
4. Power - saving：For Dia*0: 0.7kwh / **0m
5. Durable：It can run for **0,**0 meters without the need for major       maintenance.
6. Quality - compliant：It complies with the JG / T**5 - ***7 standard (Corrugated Metal Ducts for Prestressed Concrete) of the Industrial Standard of   the People's Republic of China.
1. A. Radial stiffness ≤ 0.2;
2. B. Tensile load ≥ ***0N;
3. C. When subjected to a concentrated load of **0N, the deformation is not greater than 0.2d.
7. Inner Diameter of the Duct Pipe
1. (Type A) Dia*5 millimeters - Dia **5 millimeters
2. (Type B) Dia*5 millimeters - Dia**0 millimeters

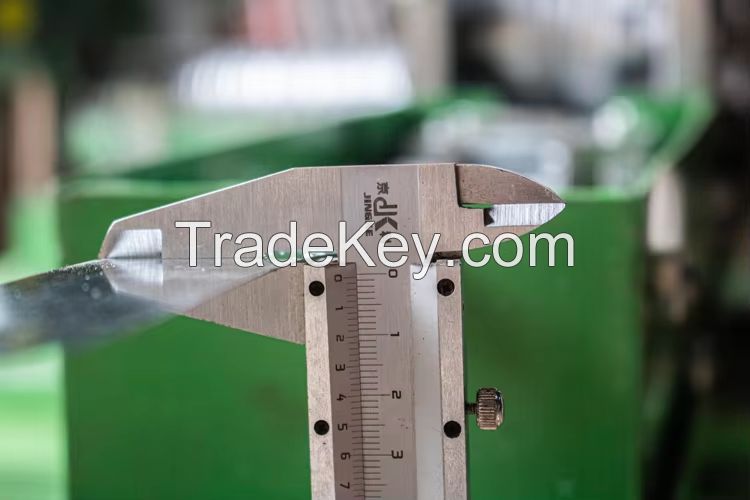

8. Thickness of the Steel Strip：0.*2 to 0.*2 millimeters
9. Weight：**0 kilograms
*0. Dimensions：***0 millimeters × **0 millimeters × ***0 millimeters (Length × Width × Height)
