2 fire zone Mini conventional fire alarm control panel

详情

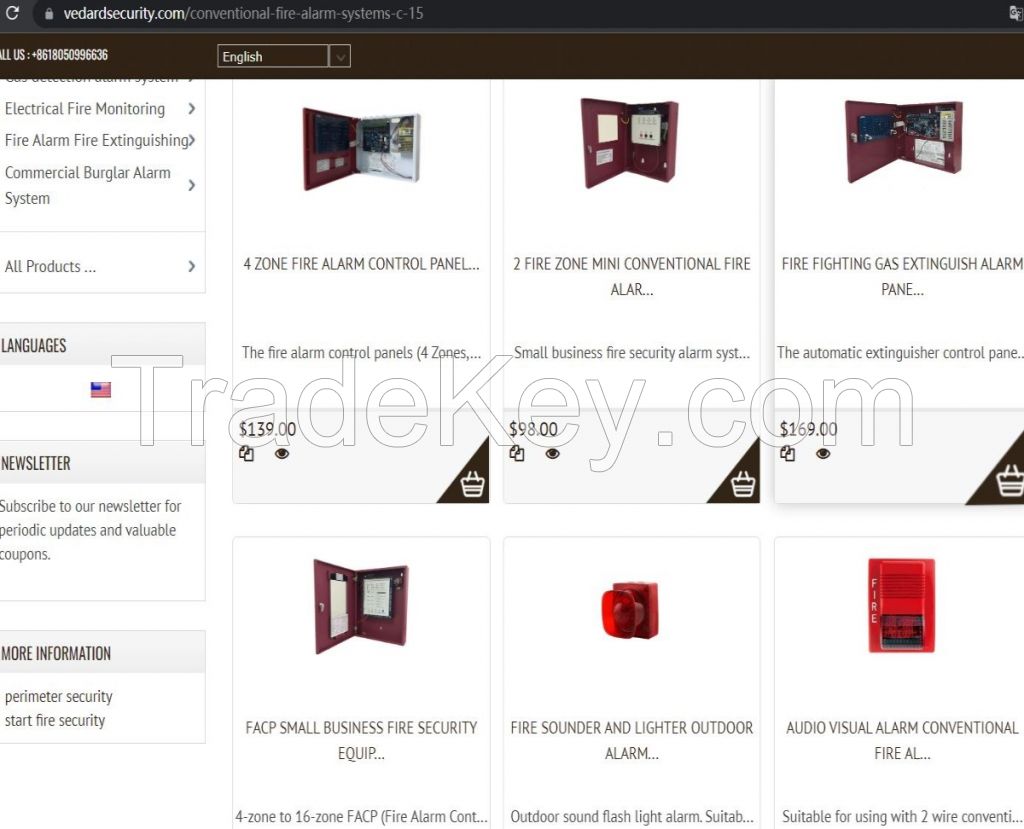

Shop it at vedardsecurity dot com online store

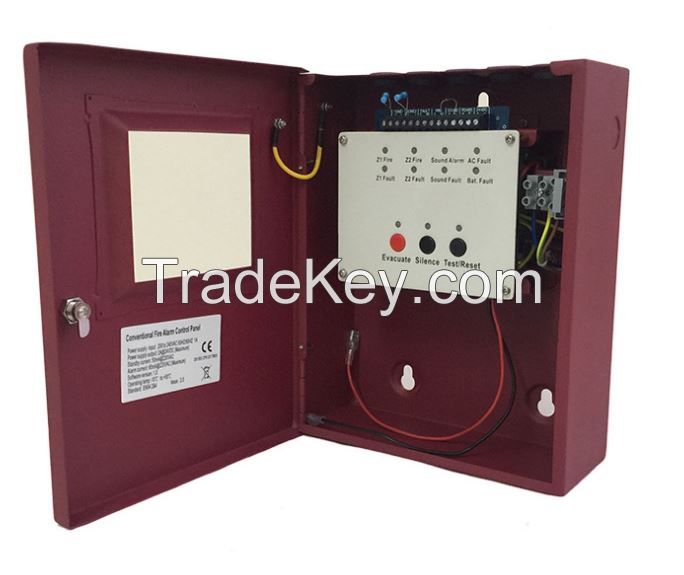

 CP****2 Mini size designed conventional fire alarm 2 zone panel is used for family hotel fire security, restaurant fire security, store or shop fire security alarm.
Automatic fire alarm system is a device that automatically detects, displays and sends out fire alarm when fire occurs to the protected object. It is widely used in modern factories, material warehouses, high-rise buildings, computing centers and other buildings, to ensure the safety of people's lives and property plays a huge role. The panel range is designed to meet the requirements of EN*4 Parts 2 & 4. The panel can be used independently or connect by RS**5.
Automatic fire alarm system is composed of trigger device, fire alarm device, fire alarm device, power supply and linkage device with other auxiliary control function.
Conventional *-zone multi-wire fire alarm controller, equipped with any *-wire smoke, temperature, alarm and alarm bell, sound and light. At the same time can be equipped with security alarm equipment.
More fire alarm systems with free technical support at conventional fire alarm
Description:
1. The Mini fire alarm control master panel and slave panel each has 2 zones and each zone can equip Max.*0 detectors and call points.
2. It should be installed, commissioned and maintained by suitably qualified service personnel with reference to IEE regulations and any statutory requirements.
3. The 2 zones alarm panel has 1 alarm sound output zones (bell zones), which can equip max.*6 sounders for total max. 1A/*4V power supplied.

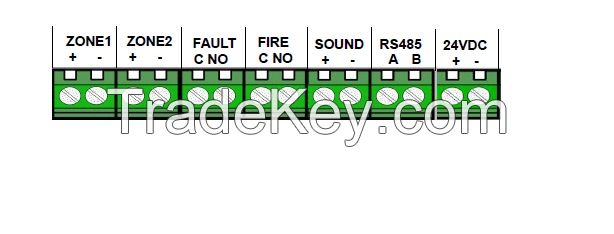

4. The panel (master or slaver) has *4V auxiliary power output supply 2A/*4V with fire 1, fire 2 relay output and fault relay output.
5. Enclosure supports two *2V, 4Ah backup batteries.
6. It supports detector head removal and easy for repair or maintenance.
7. It has Test/reset, silence alarm and Evacuate for easy panel operation.

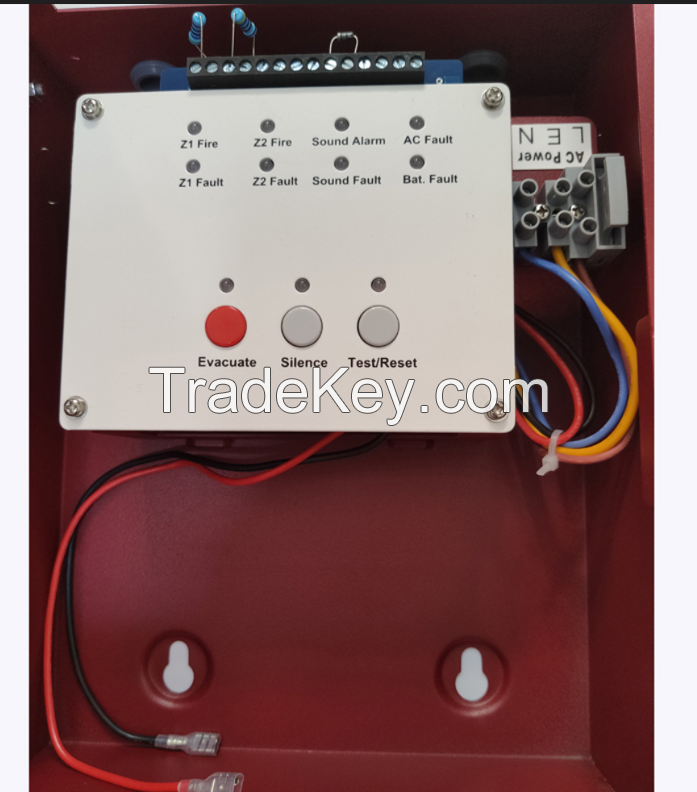

8. It has indicators of zone1 alarm /fault, zone2 alarm /fault, Sound alarm, and sound fault LED. That clearly showed detectors and sound circuit staturs.

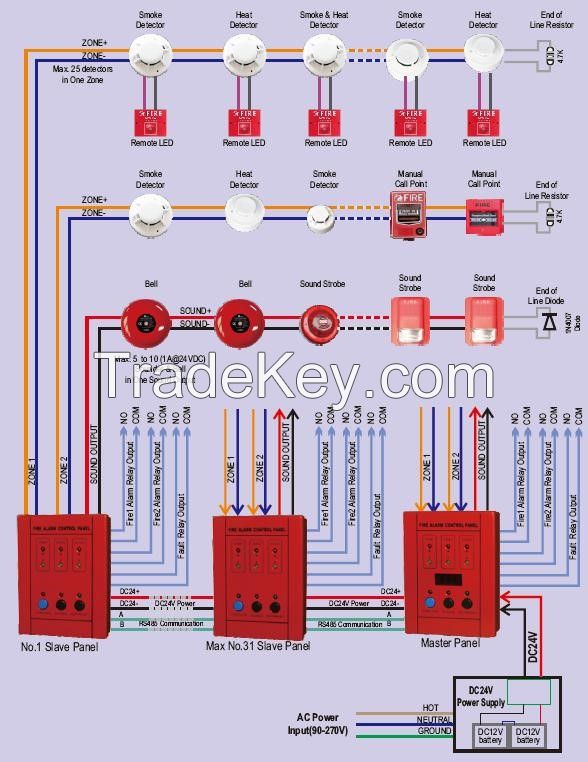

9. There is one master fire alarm control panel and it can work with Max.*1 same slaver panel.
*0. The master fire control panel will communicate slaver panel one by one and fault will be showed if no response is received.
*1. Alarm and fault events of panel No. and zone No. will be showed one by one on Master fire control panel.

Specification:
1. System Power Supply: Primary AC **0VAC *0/*0 Hz / **0VAC *0/*0 Hz
Power supply rating 2 Amps @ *4VDC
Maximum Battery Charging Current 0.*8 Amps @ *6VDC
Initiating Device Circuits 2 Zones Alarm Zone 2
Normal Initiating Operating Voltage *3VDC, Maximum *6VDC, regulated
2. Standby current: <*0mA
3. Alarm current(not include the others): <**0mA
4. Detector Voltage (VDC): *4V
5. Number of sensor zones: 2 zones
6. Max. number of detectors per zone: *0
7. Alarm Voltage: *4V
Short Circuit Initiating Current (per zone) *5mA Maximum
Maximum Initiating Resistance (per zone) *0 ohms
Initiating End-of-Line Resistor 4K7 ohms, 1/2W 5%
Standby Detector Current (per zone) 4mA maximum
Maximum Detector Count (per zone) *0 detectors
Initiating Cabling Type *8AWG Twisted Shielded pair (*4 *8 AWG)
Detector Base Impedance **0 ohms
Notification Appliance Circuits 1 NACs, Special Application
Maximum NAC Current Rating 1 Amp maximum per circuit
NAC Operating Voltage *6VDC Nominal, *0VDC Maximum
NAC End-of-line Resistor 1N***7 Diode
FAULT Relay rating 2A & *0VAC, resistive
Alarm( Auxiliary ) Relay rating 2A & *0VAC, resistive
Master alarm panel Digital & LED display
Slave alarm panel LED display only
9. Max. Alarm current per zone: **0mA
*0. Max. number of sounders per zone: *6
*1. Max. sounder supply current in fire: 1A/*4V
*2. Fire fault relay contacts loads: 2A/*4V
*3. Panel weight without battery: **0g
*4: Diameter: **8mm***3mm**0mm
