1.

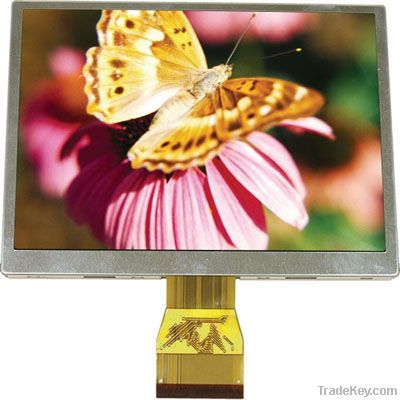

Description
3.5
Inch is a color active matrix LCD module incorporating
amorphous silicon TFT(Thin Film Transistor). It is composed of a
color TFT-LCD panel, driver ICs, FPC and a backlight unit.
The 3.5′′ display area contains 320 (RGB) x 240 pixels
and can display up to 16.7M colors.
3. Features
Item |
Specification |
Unit |
Remark |
Display Mode |
Normally White |
-- |
-- |
Display Technology |
a-Si TFT active matrix |
-- |
-- |
Outline Dimension |
76.9(H)X63.9(V)X3.3(T) |
mm |
-- |
Active Area |
70.08(H)X52.56(V) |
mm |
-- |
Resolution |
320(RGB)X240 |
dots |
-- |
Pixel Pitch |
219X219 |
μm |
-- |
Pixel Configuration |
RGB Stripe |
-- |
-- |
Weight |
TBD |
g |
-- |
Backlight |
6 LED |
-- |
-- |
Luminance |
(250)(Typ.) |
cd/m2 |
-- |
Surface Treatment |
Anti-Glare |
-- |
-- |
Signal Interface |
Digital 24-RGB bits |
-- |
-- |
Viewing Direction |
12:00 |
o'clock |
-- |
Note: About viewing direction, the
best viewing direction is 12 o'clock, and the optimum contrast
direction is at 6 o'clock.
