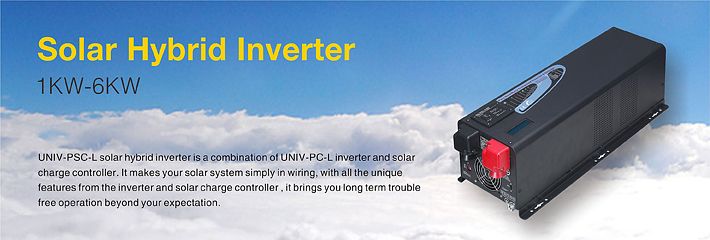

3000W Solar energy Inverter with
controller
* Inverter Output Wave Form: Pure Sine Wave
* LED indicators showing power and fault
* Digital display showing DC voltage & load percentage
* DC/AC Isolated
* Pre-slotted mounting plate
* Over-voltage shut down
* Low-voltage alarm
* Low-voltage shut down
* Over-temperature shut down
* Output short-circuit protection
* DC reverse polarity protection by fuse
* Cooling: Thermal fan
* Hybrid 3000W inverter,baattery charger and solar charger
Advantages of our inverters:
1. Inside transformer with high quality ferrite core, which takes
high efficiency to our inverters
2. PCB assembling is SMD in stead of hand-made
3. World-brand key components (Mosfet, IGBT etc. ) ensure the units
working stable.
4. Specialized PCB design, reasonalbe product consturcture makes
the units with less Electro Magnetic Interference and more
reliability
5. Good loading ability by special micro-processor design
Technical Data
Model:UNIV-3000PSC-L
Inverter-DC Voltage:12V or 24V or 48V
Voltage Range:10-15VDC or 21-30VDC or 42-60VDC or 92-132VDC
No Load Current Draw:85%
Output voltage:100/110/120VAC or 220/230/240 VAC
Battery charger
Input-100V-250VAC
Output-12V or 24V or 48V
Charge type:Three stage
Charge current:30A
Automatic transfor time
Bypass
Optional
Solar charger
Input-12V or 24V or 48V from the solar panel
Output-12V or 24V or 48V
Charge current:60Afor 12V or 24V, 30A for 48V
Full protection:Yes
Environment
Working Temperature:Between -10C and +50C
Working Humidity:20%~90%RH non-condensing
Storage Temperature:Between -30C and +70C
Package
Machine Size(mm):440 X 210X127
Packing Size(mm):540X330X450
Net Weight(kg):20
Gross Weight(kg):25
Packing Mode:Case
Other
Start:Soft Start
Cooling Ways:Cooling Fan
| Model | UNIV-1000PSC-L | UNIV-1500PSC-L | UNIV-2000PSC-L | UNIV-3000PSC-L | |
| Output (Inverter mode) | Continuous Output Power | 1000W | 1500W | 2000W | 3000W |
| Surge Rating | 3000W | 4500W | 6000W | 9000W | |
| Output Waveform | Pure Sine wave/Same as (Bypass mode) | ||||
| Nominal Efficiency | >88%(Peak) | ||||
| Line Mode Efficiency | >95% | ||||
| Power Factor | 0.9-1.0 | ||||
| Nominal Output Voltage rms | 100-110-120Vac / 220-230-240Vac | ||||
| Output Voltage Regulation | ±10% RMS | ||||
| Output Frequency | 50Hz ± 0.3Hz/60Hz ± 0.3Hz | ||||
| Short Circuit Protection | Yes( 1sec after fault ) | ||||
| Typical Line Stansfer Time | 10ms(MAX) | ||||
| THD | ＜10% | ||||
| DC Input | Nominal Input Voltage | 12.0Vdc/24.0Vdc | 12.0Vdc/24.0Vdc/48V dc | ||
| Minimum Start Voltage | 10.0Vdc ( *2 for 24Vdc, *4 for 48Vdc) | ||||
| Low Battery Alarm | 10.5Vdc ~ 11.0Vdc ( *2 for 24Vdc, *4 for 48Vdc) | ||||
| Low Battery Trip | 10.0Vdc ~ 10.5Vdc ( *2 for 24Vdc, *4 for 48Vdc) | ||||
| High Voltage Alarm | 16.0Vdc ( *2 for 24Vdc, *4 for 48Vdc) | ||||
| Low Battery voltage recover | 15.5Vdc ( *2 for 24Vdc, *4 for 48Vdc) | ||||
| Idle Consumption-Search Mode | < 25 W when Power Saver On | ||||
| AC Charger | Input Voltage Range |
Wide: 90~135VAC / 164~243VAC; Narraw: 100~135VAC / 194~243VAC; |
|||
| Output Voltage | Depends on battery type | ||||
| Max Charge Rate | 35A / 70-90A Max (Charger Current Control) | ||||
| Battery Initial Voltage for Start Up | Circuit breaker | ||||
| Over Charge Protection Shutdown | 15.7V for 12V( *2 for 24Vdc, *4 for 48Vdc) | ||||
|
Charger curve(4 stage constant current) 4 step digital controlled progressive charge |
Battery types ( *2 for 24Vdc, *4 for 48Vdc) | ||||
| Battery type | Fast V ( *2 for 24Vdc, *4 for 48Vdc) | ||||
| Gel U.S.A | 14.0 | ||||
| A.G.M 1 | 14.1 | ||||
| A.G.M 2 | 14.6 | ||||
| Sealed Lead Acid | 14.4 | ||||
| Gel Euro | 14.4 | ||||
| Open Lead Acid | 14.8 | ||||
| Calcium | 15.1 | ||||
| De-sulphation | 15.5 for 4hrs | ||||
| Remote Control | Yes. Optional | ||||
| Bypass & Protection | Input Voltage Waveform | Sine wave (Grid or Generator) | |||
| Nominal Voltage | 120VAC / 230VAC | ||||
| Low Voltage Trip | 90V±4%/184V/154V±4% | ||||
| Low Voltage re engage | 100V±4%/194V/164V±4% | ||||
| High Voltage Trip | 140V±4%/ 253V±4% | ||||
| High Voltage re engage | 135V±4%/243V±4% | ||||
| Max Input AC Voltage | 150VAC/270VAC | ||||
| Nominal Input Frequency | 50Hz or 60Hz (Auto detect) | ||||
| Low freq trip | 47Hz± 0.3Hz for 50Hz, 57Hz± 0.3Hz for 60Hz | ||||
| Low freq re engage | 48Hz± 0.3Hz for 50Hz, 58Hz± 0.3Hz for 60Hz | ||||
| High freq trip | 55Hz± 0.3Hz for 50Hz, 65Hz± 0.3Hz for 60Hz | ||||
| High freq re engage | 54Hz± 0.3Hz for 50Hz, 64Hz± 0.3Hz for 60Hz | ||||
| Overload protection | Circuit breaker | ||||
| Short circuit protection | Circuit breaker | ||||
| Transfer switch rating | 30amp | ||||
| Max bypass current | 30amp | ||||
| Bypass over load current | 35amp: Alarm | ||||
| Solar Charger | Rated Voltage | 12V/24V/48V | |||
| Rated Charge Current | 40A(12V/24V)/60A,optional | ||||
| Rated Output Current | 15A | ||||
| Self Consumption | < 10mA | ||||
| Bulk Charge | 14.5V(default) | ( *2 for 24Vdc, *4 for 48Vdc) | |||
| Floating Charge | 13.5V(default) | ||||
| Equalization Charge | 14.0V(default) | ||||
| Over Charge Disconnection | 14.8V | ||||
| Over Charge Recovery | 13.6V | ||||
| Over Discharge Disconnection | 10.8 V(default) | ||||
| Over Discharge Reconnection | 12.3V | ||||
| Temperature Compensation | |||||
