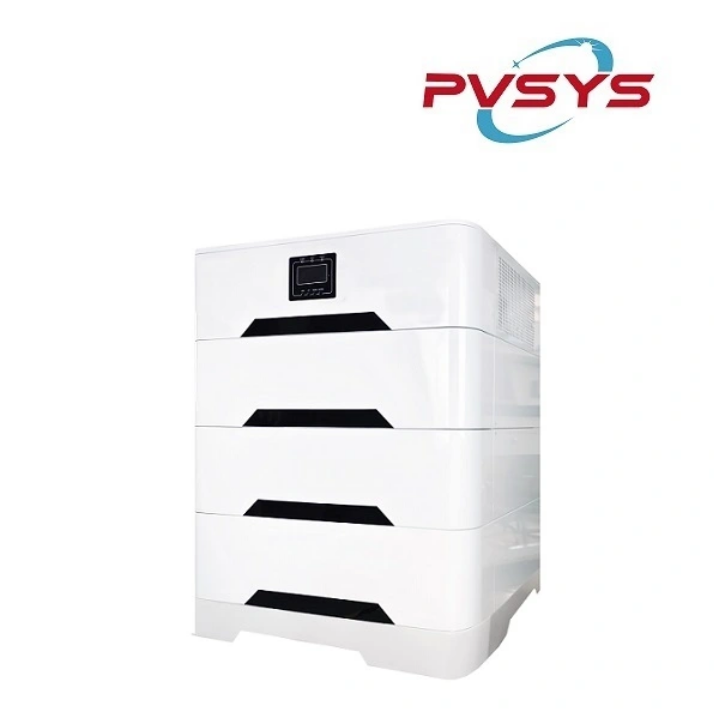

Specification(Solar system 10KW):
| Model | PVSG10KHF4810-V1 | PVSG10KHF4815-V1 | PVSG10KHF4820-V1 |
| PV Input | |||
| Max.PV voltage | 450Vdc | 450Vdc | 450Vdc |
| Recommended power | 14000W | 14000W | 14000W |
| MPPT voltage range | 120~430Vdc | 120~430Vdc | 120~430Vdc |
| Battery | |||
| Rated voltage | 48Vdc | 48Vdc | 48Vdc |
| Max.charge current | 160A | 160A | 160A |
| Efficiency | ≥97% | ≥97% | ≥97% |
| Type & Rated capacity | Gel/lithium & 10kWh | Gel/lithium & 15kWh | Gel/lithium & 20kWh |
| AC Input、Bypass output | |||
| Voltage and frequency | 230Vac±20%,50/60Hz (±3%) | 230Vac±20%,50/60Hz (±3%) | 230Vac±20%,50/60Hz (±3%) |
| Max. charge current | 120A | 120A | 120A |
| Switching time | ≤10ms | ≤10ms | ≤10ms |
| Inverter Output | |||
| Rated output capacitor | 10000VA | 10000VA | 10000VA |
| Rated output power | 10000W | 10000W | 10000W |
| Output voltage | 220Vac/230Vac | 220Vac/230Vac | 220Vac/230Vac |
| Rated frequency | 50/60Hz (±3%) | 50/60Hz (±3%) | 50/60Hz (±3%) |
| Standby loss | ≤20W | ≤20W | ≤20W |
| Max. efficiency | 93% | 93% | 93% |
| Waveform | Sine wave | Sine wave | Sine wave |
| Protecition level | IP21 | IP21 | IP21 |
| Autible noice | < 60dB | < 60dB | < 60dB |
| Cooling method | Forced cooling | Forced cooling | Forced cooling |
| Operate temp. | -20～+50℃ | -20～+50℃ | -20～+50℃ |
| Storage temp. | -25～+70℃ | -25～+70℃ | -25～+70℃ |

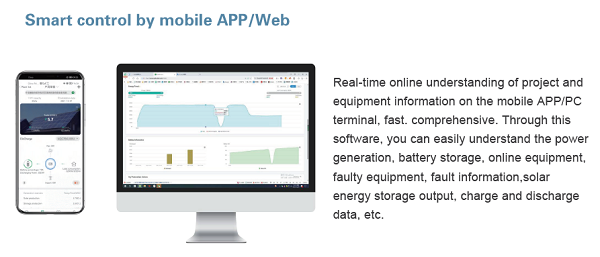

| Interface | RS485/CAN | RS485/CAN | RS485/CAN |
| Dimension(W*D*H) | 674*895*480mm | 674*1093*480mm | 674*1291*480mm |
| 国家: | China |
| 型号: | Solar system 10KW |
| 离岸价格: | ( Negotiable ) 获取最新报价 |
| 位置: | China |
| 最小订单价格: | - |
| 最小订单: | 1 Set |
| 包装细节: | Carton box and Wooden case |
| 交货时间: | In 15-25 days after payment |
| 供应能力: | 100 Set per Week |
| 付款方式: | T/T |
| 產品組 : | Solar storage system |
