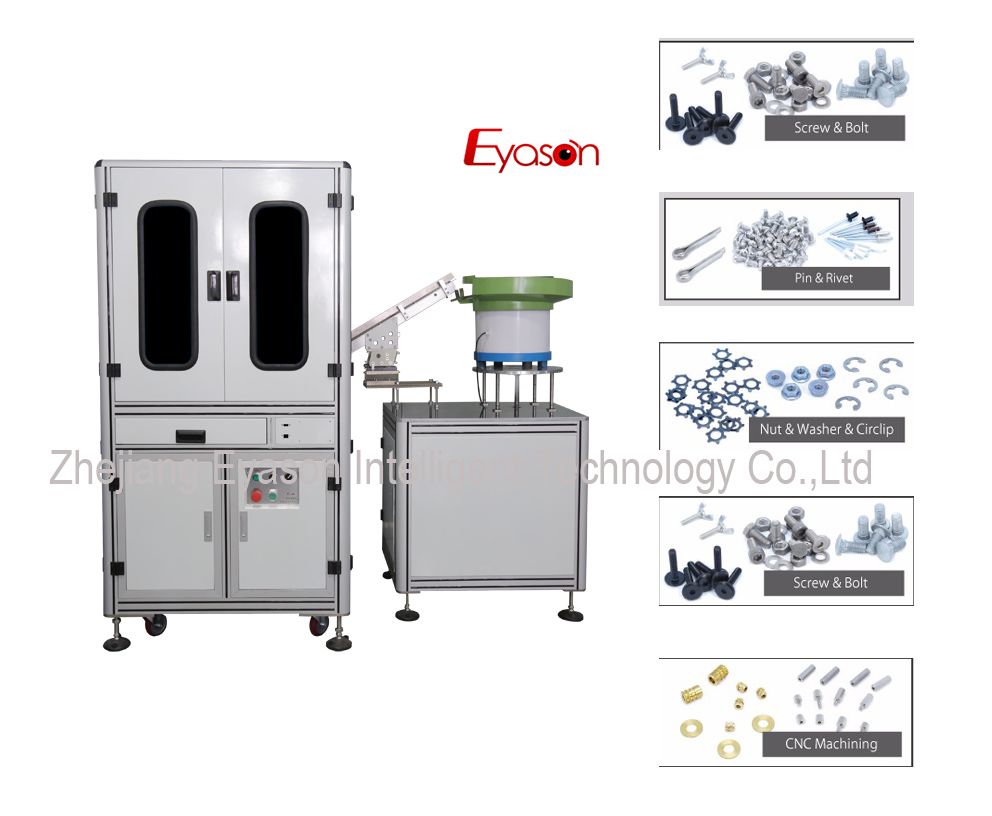

Auto parts inspection and screw inspection

Is used for inspection small and medium diameter headed fasteners at a high rate of speed.

Continuous rotating inspection design, with fast inspection speed and high precision



PRODUCT FEATURE

•Application: Auto parts, screw, bolt

•Inspection Range: M*-M*2, length **0mm

•Inspection Speed: **0~**0 pcs/min depending on the actual feeding speed

•No. of CCD Camera : **6 cameras

•Professional inspection software: Graphic teaching mode, simple operation interface, easy to learn and use

•Options: Eddy current device / telecentric lens / ***-degree camera / automatic material supplementing system / paper box packing machine / OCR character recognition system



Inspection criteria

fastener parts head width / height / pinhole depth / recess shape / burr in recess/ spiral thread / thread I.D. / thread E.D./ neck length / shank vertical / screw



length / first thread / drunk thread / head crack / plating / insert nut thread / burr / dimension / et



Specification



Appling component: Auto parts,larger fasteners

Diameter of component: M3~M*2 standard

Length of component: **0mm

Head Width: *5mm

No. of CCD: 3 CCD

Vision system: Highly magnified CCD camera / light source sets

Software: Eyason II version 2.5

Supply and output: Feeding bowl / linear track / sorting bins (Good/NG)

Speed: **0~**0 pcs/min

Power: AC **0 - **0V / *0Hz

Mainframe: Industrial computer, MITSUBISHI servo motor, Industrial CCD, Telecentric lens

Machine spec.: ***5mmL× **0mmW× 1,**5mmH
