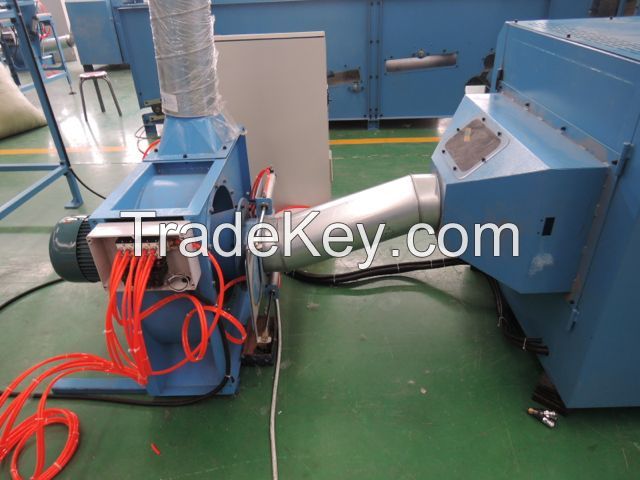

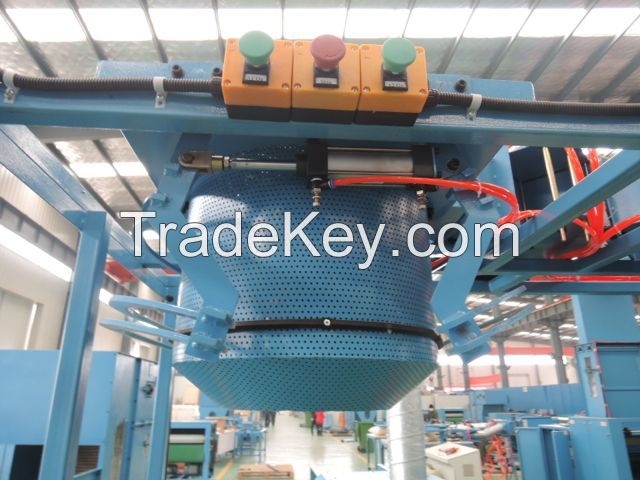

Automatic fiber filling machine

China

QL005B

获取最新报价

-

-

1 Piece

MDF board

50 days

-

T/T

-

现在联系

产品规格

Brand Name : LION Packaging Material : - Automatic Grade : - Power : - Application : - Condition : - Packaging Type : - Driven Type : -

详情

Specification:



Product name

Automatic fiber filling machine

Item no.

QL005B

Voltage

380v 50Hz 3phase by order

Power

19.15kw

Capacity

400kg/h up

 Labor need

1

Dimension

8700*2220*2500mm

Weight

3780kg

Description:

  • The automatic fiber filling machine is mainly used for filling fiber into bags.
  • It is assembled with automatic bale opener, fiber opening device and fiber blower, fiber filling device.

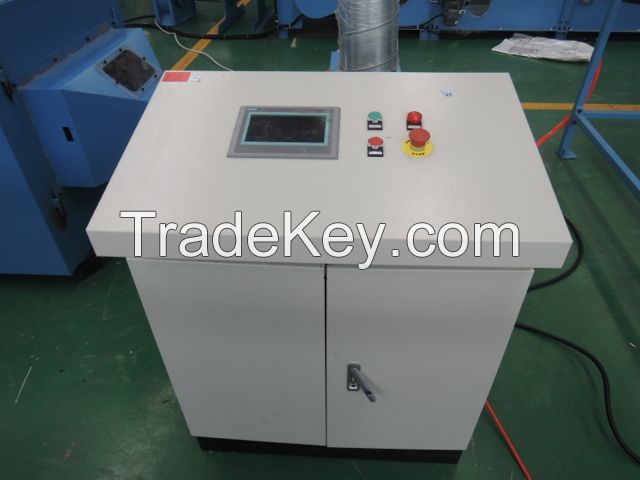

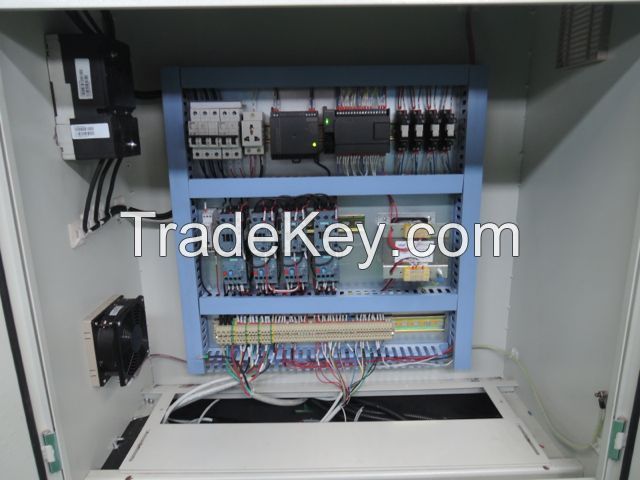

  • The whole line is adjusted by PLC control system that can be handled by only one operator with simple operation.
  • Weighing system that the tolerance can be around 250g.
  • High capacity about 2500kg per day.
  • A whole bale raw material can be transported to the next program automatically.
  • Electronic metal alarm system;
  • The rollers are made by V-wire, so that fiber opening rate can be 98% up without hurting the fiber and long life with less maintenance.
  • Special roller and bearing device avoid the fiber jam into the bearings.
  • Conveyer track protection system;
  • CE Certification
