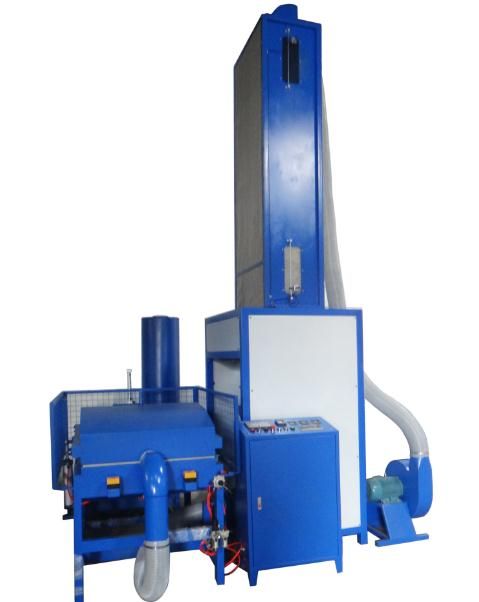

Automatic Pillow Machine

详情

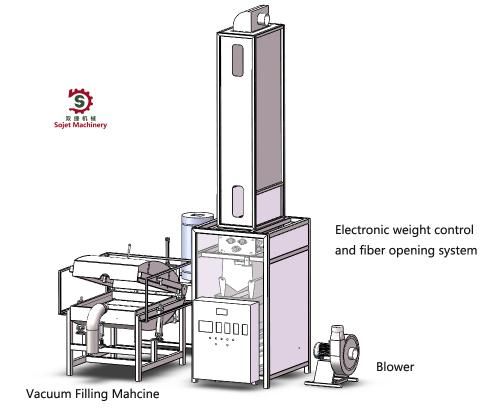

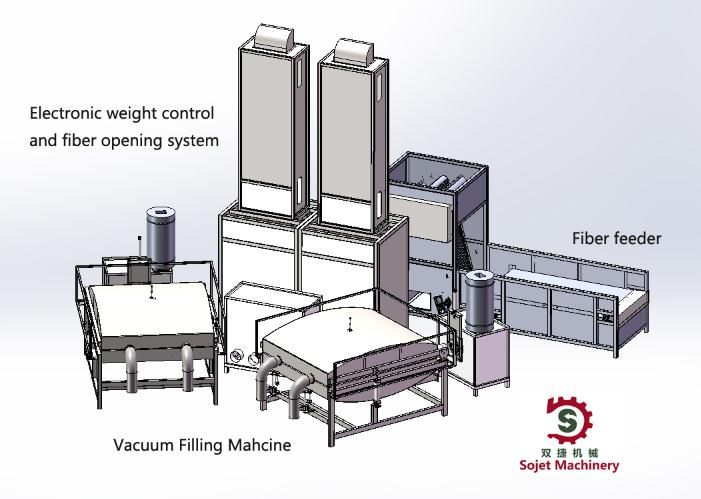

This production line is a machine designed to automatically fill pillows or other articles as cushions and others with fiber.

Composed of:
1 --Silos
having the function of fibers accumulator fed automatically by pjotocell control.
2 -- Dosing and opening units
   Set of cylinders with variable speed dosing the fibers to the weighing system.
3 -- Weighing systems
Controlling the above clinder feeding to get accurate pre-selected weight.
4 -- Filling units
The vacuum filling machine in which the empty pillow cover is placed closes hermetically, allowing an even distribution of the weighed opened fibers into the pillow covers through a high pressure turbine.
5 -- Vacuum high pressure turbine (Fan)
Allowing to suck and distribute the fibers into the pillow cover.
6 -- Electronic control paned
Panel to control the parameters of the machine.
