Automatic Setting Machine

详情

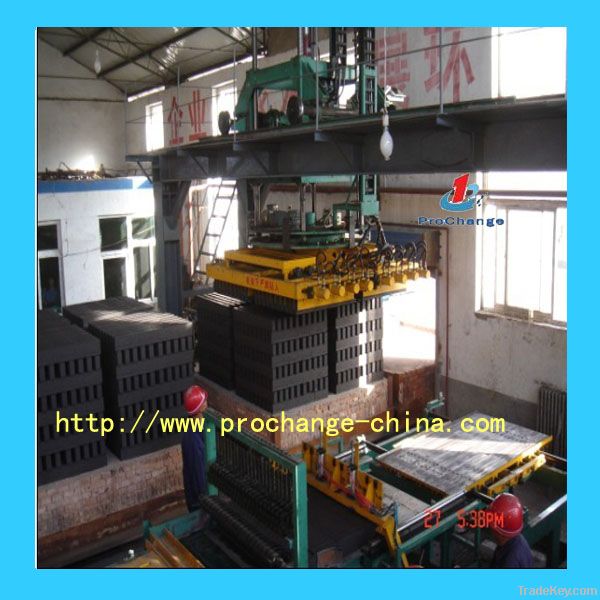

Automatic Setting Machine
Automatic setting machine is mainly to have special cut machine, cutting machine, points slab billet machine, clip billet machine, travel system, lift system, rotating systems, hydraulic system and electrical system etc. Automatic yards billet work flow machine:

When brick cutting machine to cut slices of tile push to points on the board after casting, points out billet cylinder, driving the points of bricks on billet board opened points seam action, tile seam points after the completion of the lifting cylinder decline. When the clip dish arrived at the scheduled clip billet position, then clip plate fixture work, pick up bricks, and then lifting cylinder by open clip dish to mention scheduled height, points out between billet cylinder open tile ducts, walk device driver code billet walking machine to the kiln car upper part, rotating device finish to *0 °, and then open drop down to reserve put billet cylinder height, clip plate fixture open the tile pieces in the kiln, code billet machine shelved a layer, rotate a layer, form the cross, after the above operating cycle, can complete all the code kiln car casting process. Casting machine code these functions are marching through a PLC of frequency conversion through the electric centralized control, realize the automation of casting machine code.
Main technical parameters:
