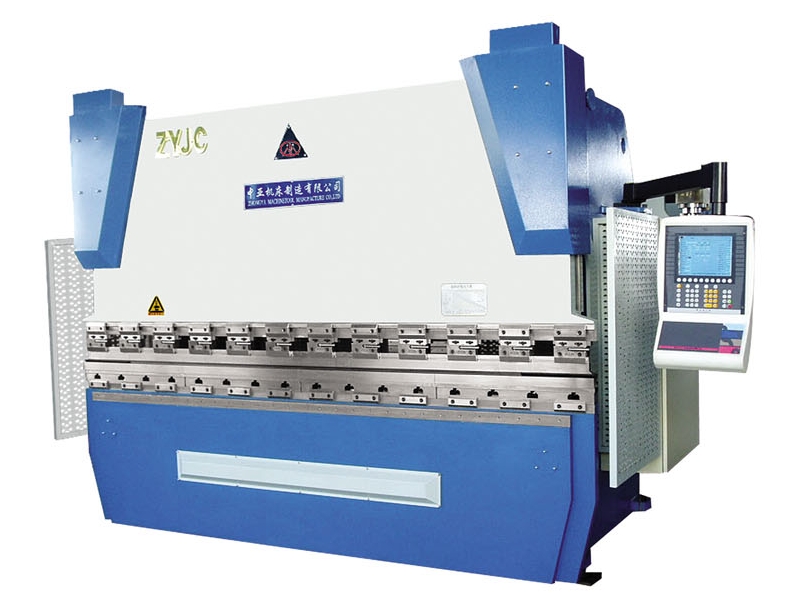

bending machine

详情

.The machine body is in an overall welded and overall processed structure , and ANSYS finlte element analysis software is applied to main parts of the machine body for analysis , which has ensured the reliabillity of machine tool and the precision of entire machine . 2. Closed loop control mode composed of electrohydraulic servo valve imported from Germany and imported grating ruler is adopted for the main oil cylinders on both sides, to break through the stroke control pattern of traditional bending machines of mechanical stoppe type, typical of high feedback precision for position of gliding block, accurate and stable operation, good synchronizing performance and high repeated positioning precision of gliding block. ***** parts are used for all the functional parts in the rear stopper, to ensure the stopping precision of rear stopper and the mechanism of rear stopper will multiple stopping shafts for more complete functions is employed up to customer requirements. ***** control system imported form Germany is adopted for the whole hydraulic system, to simplify the installation of pipelines, and to ensures stable operation as wellas simple and nice appearance of the machine tool. *****-shaped plates are fitted on both sides of the machine body, and the high-precision grating ruler is mounted on the C-shaped plates, thus to avoid the infuence over bending precision arising from distortion of machine body during bending process. ***** lower workbench is fitted with automatic compensation mechanism for hydraulic deflection, to achieve an effective dead zone free compensation with high bending precision and long stability guaranteed.
