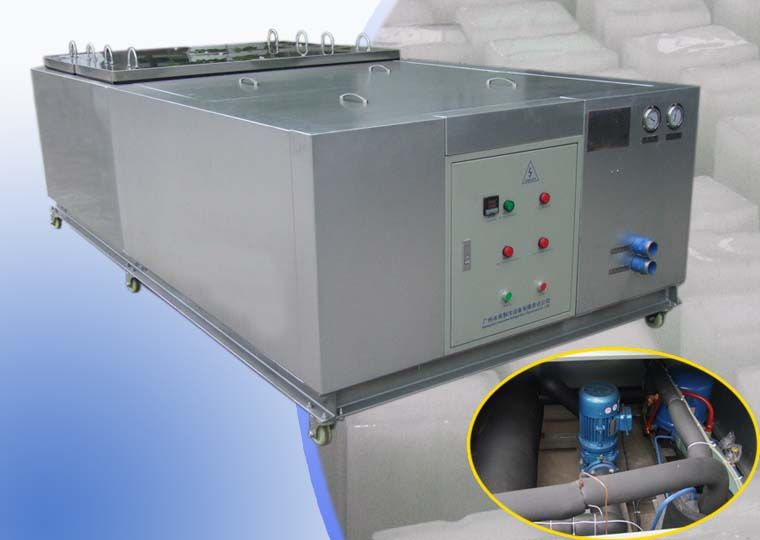

Block Ice Machine

详情

URUK INTERNATIONAL LLC.


Block ice application

● Ice factory at ports or docks.

● Fresh preservation and cooling of aquatic products

● Fresh preservation of aquatic products and foods during line haul

● Temperature reduction and cooling in specific fields

● Ice sculpture

● Edible ice

Block ice features：

● High in density, hard and not easy to melt

● It can be used to make block ice in different colors

● Different weight such as *2.5kg,*0kg,*5kg,*0kgkg,*5kg,**0kg and **5kg for your option.

● Clean and sanitary, without impurities

● Low temperature and *3℃ is reachable

● It can be processed into ball shape edible ice or small block ice

Block ice production principle：

——when the refrigeration system begins operating normally, the water in the tank below is transported from the water outlet to the water inlet of upper water tank by the water pump. After the water goes across the distributive pipe, it downwardly flows along the wall of the heat exchange tube. The water then begins a heat exchange with the refrigerant outside heat exchange pipe, which lowers the temperature. Some of the water is formed into tube ice, while the water which does not become ice returns to the low water tank. The water continues circulating so that the ice gets thick, and the hole of tube ice also becomes smaller and smaller.

——After a period of time, water stops circulating and the refrigeration system changes into ice cutting mode. The ice cutting framework then begins to operate. The surface of the heat exchange pipe consists of refrigerant hot gas with high-pressure. The hot gas begins a heat exchange with the tube ice in the pipe wall. Hot gas makes contact between the tube ice and the wall of heat exchange, thawing the ice so that it looses adhesive force. The ice then drops into an ice cutting framework because of gravitational force and finally is cut into many pieces of tube ice.

-Block Ice Machine Features：

● Stable and energy-saving design

● Unique and excellent evaporator technique

● Simple and convenient maintenance

● Experienced team of installation and commissioning

① Appropriative lifting device

② Reliable refrigeration unit

③ Simple operation of ice dotting device

Work conditions：

● All-in-one refrigeration systems.

 ● Specially-designed evaporator, with efficient thermal conductivity.

 ● Clean and sanitary block ice, suitable for human consumption.

 ● The refrigerant can be used globally, in line with national and international standards.

 ● Dry-type expansion reduces refrigerant quantity, makes the unit compact and safe and lessen breakdowns.

 ● PLC controls and self-protects from breakdowns during water filling, ice making and harvesting.

 ● Production capacity: O.5~1OT/*4hrs, with block ice weight of 5kg, *0kg, *5kg, *0kg and *5kg.

 ● Shortest installation and commissioning time, loved by the users.

 ● Movable, transportable with truck and ship.
