Cat6 cable with excellent quality and reasonable price

国家:

China

型号:

离岸价格:

0.01 ~ 0.1 / Meter ( Negotiable ) （面議）获取最新报价

位置:

最小订单价格:

0.01 per Meter

最小订单:

15000 Meter

包装细节:

Small box: 34..5*34.5*19.5mm Carton: 61.5*35.8*36.5mm small box packed into carton other packing i

交货时间:

about 10 days after payment

供应能力:

10000 Meter per Day

付款方式:

T/T, Western Union

產品組 :

现在联系

产品规格

Type : Wired Application : network Certification : rosh,ce,fluke 4300 test Brand Name : HDL Products Status : - Function : - LAN Ports : - WAN Ports : -

conductor material : ccs/cu/cca insulation : pe jacket : pvc color : as your wish operating temperature : -20~60 rated voltage : 300

详情

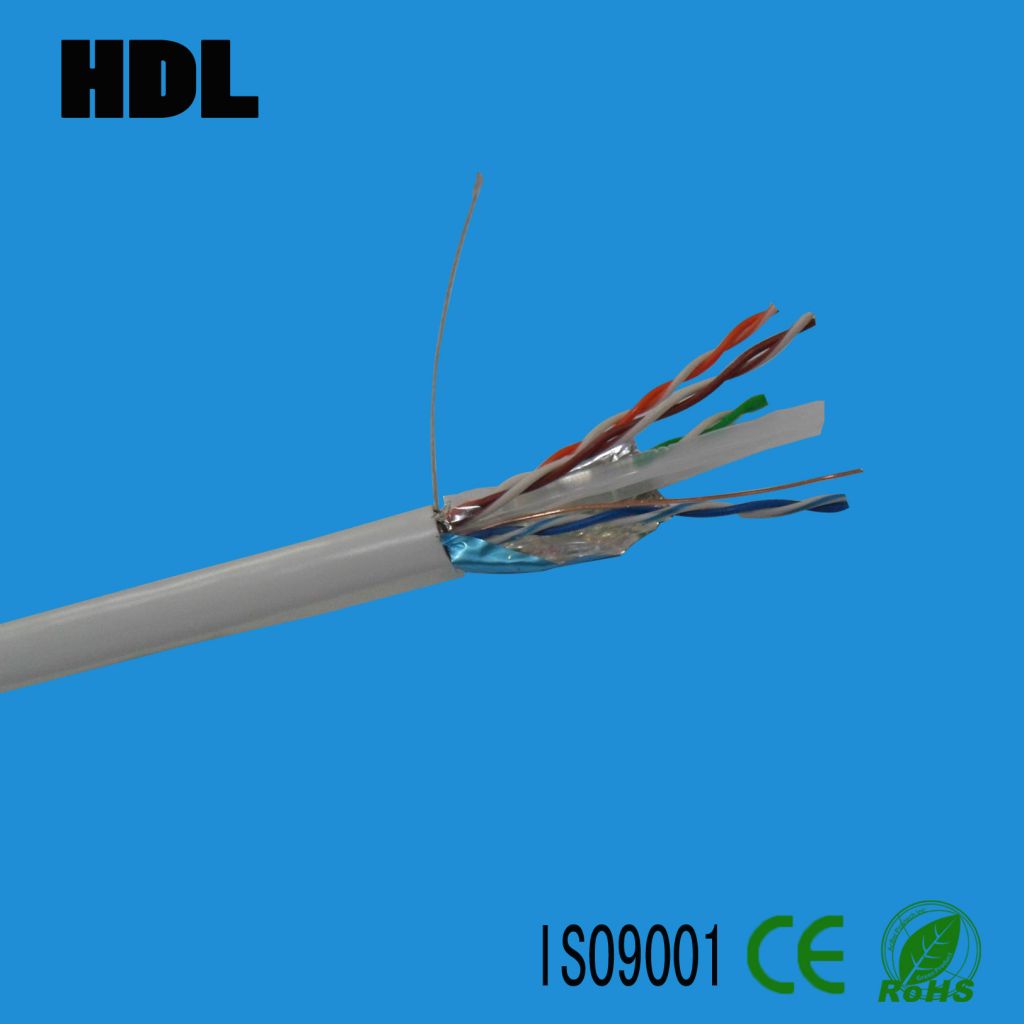

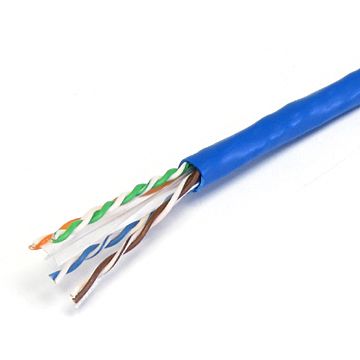

Cat6 cable with excellent quality and reasonable price :

Communication Cables and wires

CHARACTERISTICS

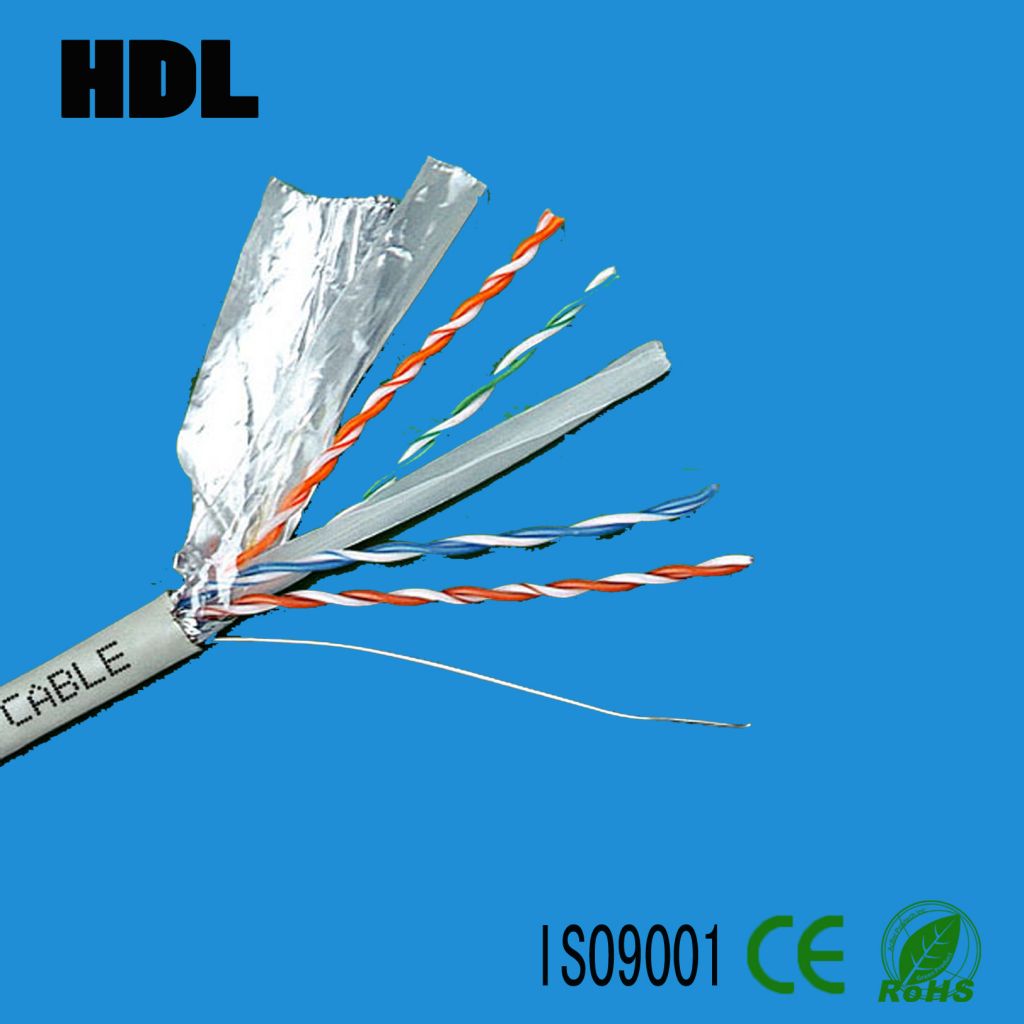

Inner material:OFC/PURE COPPER/CCA/AL/Aluminum Foil shielded twisted pairs, FRPE
Conductor:24AWG/26/28(0.57mm)
Insulation:PE
Jacket:PVC FT4
Certifcation:UL,CE,ROHS Compliant
Compliance:ETL verified ANSI TIA/EIA568-2,UL Subject 444.(UL) c(UL) type CMR/CMG.Type CM/CMH.Type CM/CMH,NEC Srticle 800 Type CMP or CM.ISO/IEC 11801.ROHS Compliant.
Application: 100 Base-TX, 100VG-AnyLAN, 1000Base-T, ATM, Noisy Environment
Remark: 250MHz 550MHz ATM 155Mbps, 100mbps TPDDI, Fast Ether-net etc.

FEATURES

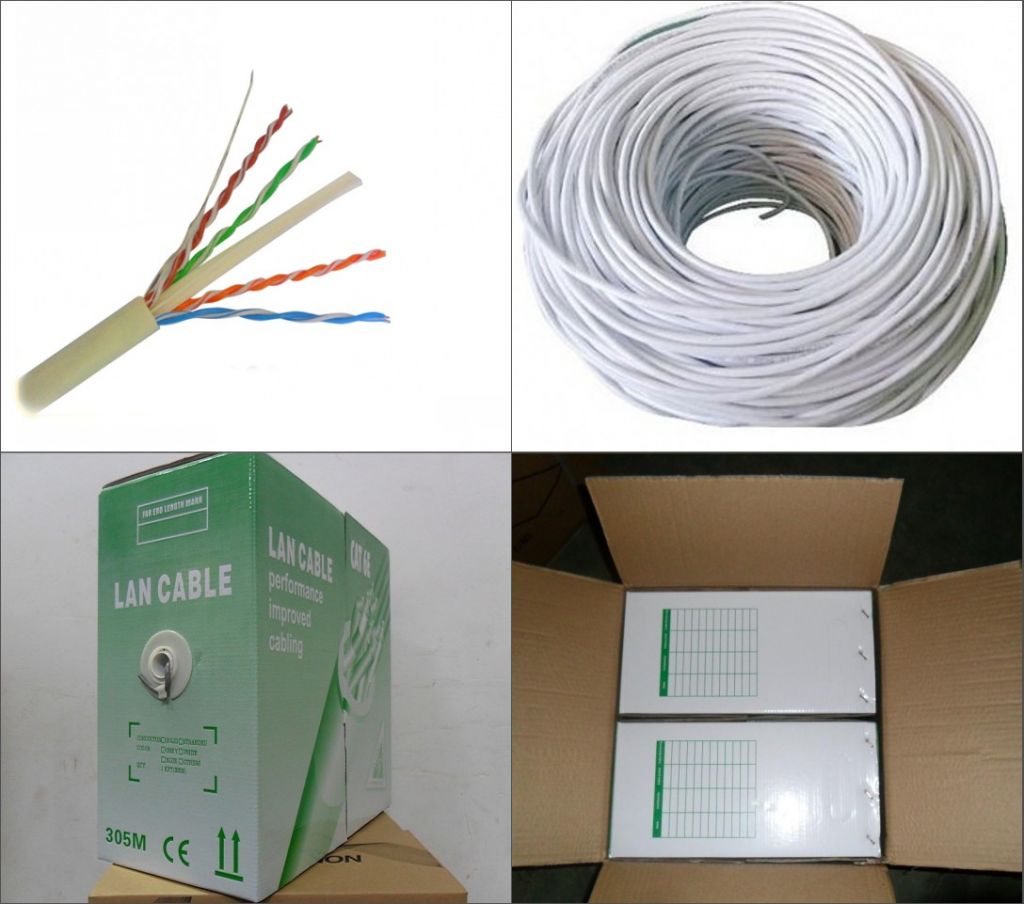

1000ftp ,boxes or reels ,reel in box upon request,jacket color as request

REFERENCE ELECTRICAL CHARACTERISTICS

Frequency	Impedance	RL	Attenuation	Next Worst Pair(db)	Next Power Sum(db)	ELFEXT	ELFEXT	Nominal Velocity Propagation ( C )
( MHZ)	(db)	(db)	(db)	Next Worst Pair(db)	Next Power Sum(db)	(db)	Power Sum(db)	Nominal Velocity Propagation ( C )
0.772	100 ± 15	19.4	1.8	76	74	70	67	0.65
1		20	2	74.3	72.3	67.8	64.8
4		23	3.8	65.3	63.3	55.8	52.8
8		24.5	5.3	60.8	58.8	49.7	46.7
10		25	6	59.3	57.3	47.8	44.8
16		25	7.6	56.2	54.2	43.7	40.7
20		25	8.5	54.8	52.8	41.8	38.8
25		24.3	9.5	53.3	51.3	39.8	36.8
31.25		23.6	10.7	51.9	49.9	37.9	34.9
62.5		21.5	15.4	47.4	45.4	31.9	28.9
100		20.1	19.8	44.3	42.3	27.8	24.8
200		18	29	39.8	37.8	21.8	18.8
250	100 ± 22	17.3	32.8	38.3	36.3	19.8	16.8
