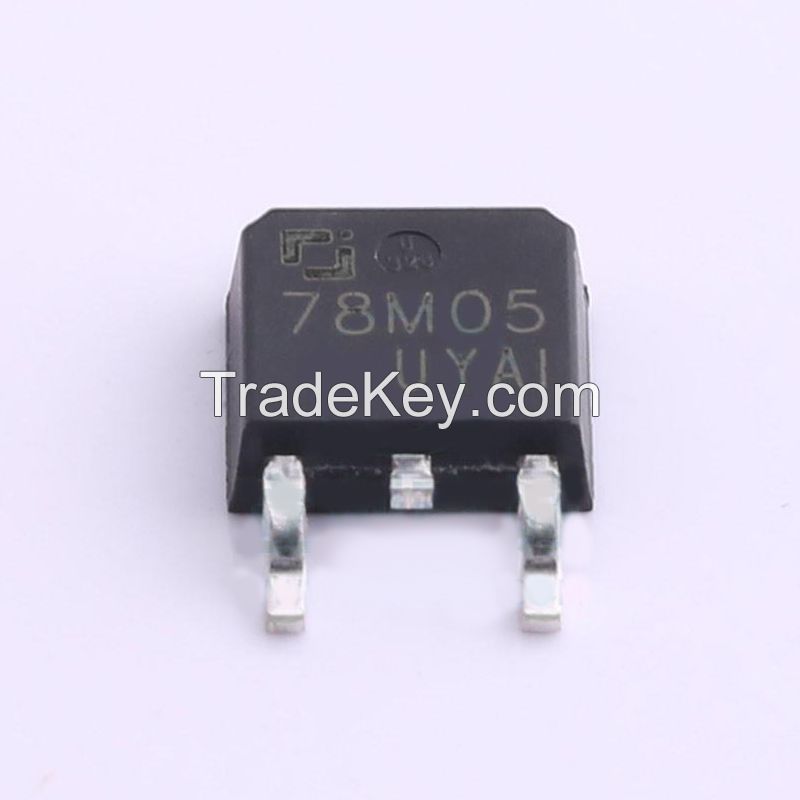

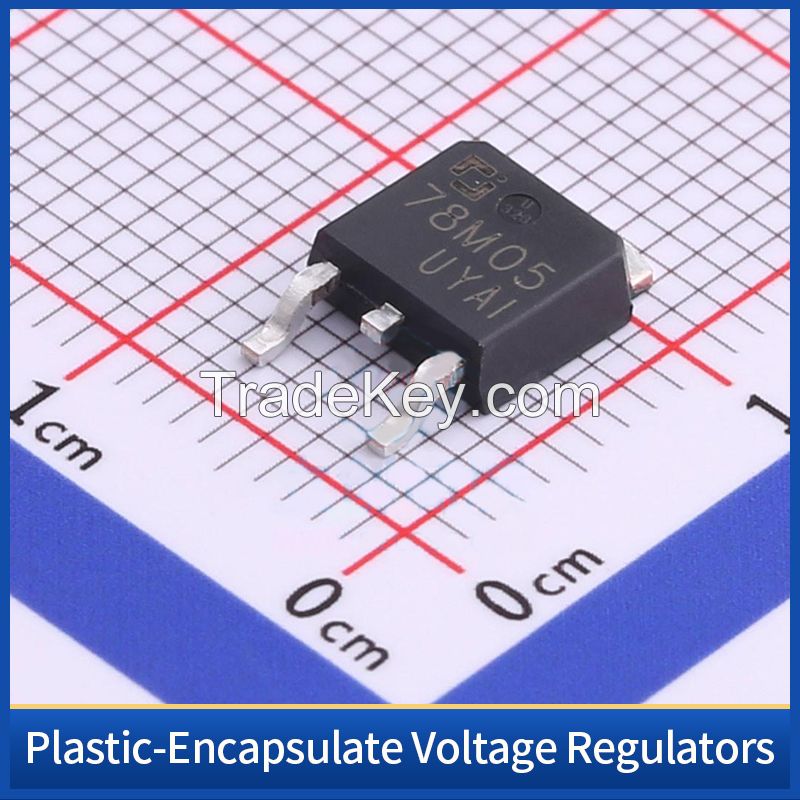

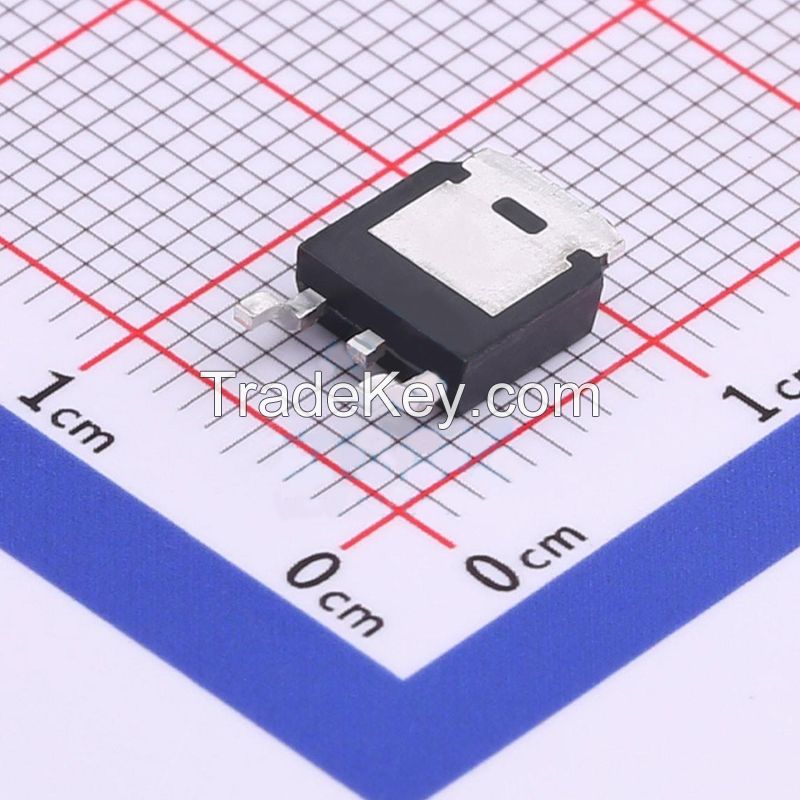

CJ78M05 TO-252-2L V2.3 (Triple-ended Voltage Regulator IC)

详情

Three-terminal voltage regulator IC also known as three-terminal voltage regulator tube, it looks like an ordinary triode, electronic products commonly seen in the three-terminal voltage regulator IC have positive voltage output *8 × × series and negative voltage output *9 × × × series As the name implies, three-terminal IC means that this kind of voltage regulator with only three pins output, respectively, the , output and ground terminal. Turning the marked side of the component toward itself, the three pins are , ground and output in case of *8 series; in case of *9 series, the three pins are ground, and output. The *8/*9 series three-terminal voltage regulator IC to form a regulated power supply requires very few peripheral components, and the circuit has internal protection circuits for overcurrent, overheat and regulator, which is reliable, convenient and inexpensive to use. The number after the *8 or *9 in the model number of this series of integrated voltage regulator represents the three-terminal integrated voltage regulator
