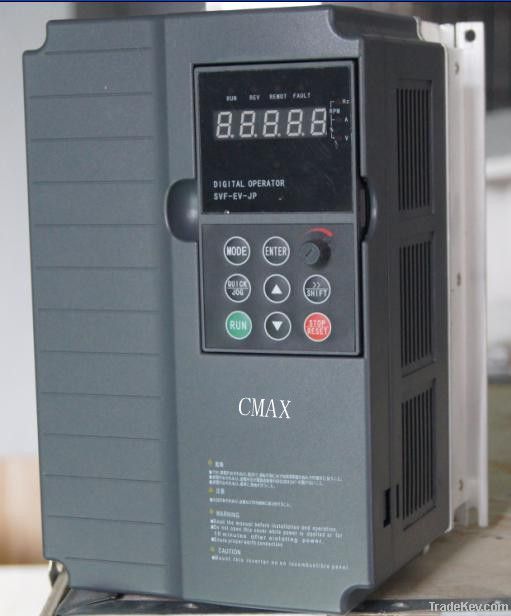

CMAX Vector Control Variable Speed Drive
General
CNBM frequency inverter is a high-quality, multi-function,
low-noise variable frequency drive which is designed, developed and manufactured according to international standards.
It can meet different needs of industrial conditions.
The inverter applies advanced control technology of space voltage vector PWM, with functions of constant voltage control, power-off restart, dead zone compensation, automatic torque compensation, online modification parameter, high-speed impulse , simple PLC and traverse.
Application
Textile: coarse spinner, spinning frame, wrap-knitting machine, loom, knitting machine, silk-spinning machine, etc.
Plastic: extruder, hauling machine, decorating machine, etc.
Pharmacy: mixer, roaster, etc.
Woodworking: engraving machine, sander, veneer peeling lathe, etc.
Papermaking: single type papermaking machine, etc.
Machine tool: non-core grinding machine, optical lens grinding machine, cutting mill, etc.
Printing: cloth-washing machine, dye vat, etc.
Cement: feeder, air blower, rotary furnace, mixer, crusher, etc
Fan and pump: kinds of fans, blowers and pumps
Specification
|
Item
|
Specification
|
|
|
Input
|
Input voltage
|
**0/**0V±*5%
|
|
Input frequency
|
*7~*3Hz
|
|
|
Output
|
Output voltage
|
0~ voltage
|
|
Output frequency
|
0~**0Hz
|
|
|
Peripheral interface
characteristics
|
Programmable digital
|
4 switch , 1
high-speed impulse
|
|
Programmable analog
|
AI1: 0~*0V
AI2: 0~*0V or
0~*0mA ,
|
|
|
Programmable open
collector
output
|
2 Output
(3.7kW and above: 1
Open collector output)
|
|
|
Relay Output
|
1 Output (3.7kW and
above: 2 Relay output)
|
|
|
Analog output
|
2 Output, one is
0~*0V,
another is 0~*0mA or
0~*0V
|
|
|
Keypad
|
Display:*-digit
*-section LED (Red), 2 indicators; parameter setting: 8
keys (including multi-function hot key ), 1
potentiometer
|
|
|
Technical performance
characteristics
|
Control mode
|
All digital space
voltage vector SVPWM algorism
|
|
Overload
capacity
|
G purpose: **0% rated
current *0s
P purpose: **0% rated
current *0s
|
|
|
Speed ratio
|
1: **0
|
|
|
Carrier
frequency
|
1.0~*0.0kHz
|
|
|
Torque
compensation
|
Linear, multi-point,
1.3th power, 1.7th power, 2.0th power reduced
torque; Compensation voltage range: automatic
compensation and manual compensation 0.1~*0%
|
|
|
Automatic voltage
adjustment
|
It can automatically
maintain output voltage constant when grid voltage
fluctuates.
|
|
|
Automatic current
adjustment
|
When the current is
over current limit, under clocking automatically limits
output current.
|
|
|
Function
characteristics
|
Frequency setting
mode
|
Keypad digital analog
, keypad potentiometer, impulse frequency,
communication, multi-step speed and simple PLC, PID
setting and so on, switch-over of setting modes.
|
|
Simple
PLC,
multi-step speed
control
|
**-step speed
control
|
|
|
Special function
|
Traverse control,
length control, time control
|
|
|
QUICK/JOG key
|
User-defined
multi-function hot key
|
|
|
Protection
function
|
Over-current, Over
voltage, under-voltage, over-heat, phase failure,
over-load and motor over-load
|
|
|
Working
condition
|
Installation
site
|
Indoor, altitude of
less than 1km, dust free, non-corrosive gases, no direct
sunlight
|
|
Application
environment
|
**0°C~**0°C, *0~*0%RH
(no dew)
|
|
|
Vibration
|
Less than 0.5g
|
|
|
Storage
temperature
|
**5°C~**5°C
|
|
|
Installation
type
|
Wall-mounted type,
floor cabinet type
|
|
|
Cooling mode
|
Air-forced
cooling
|
|
