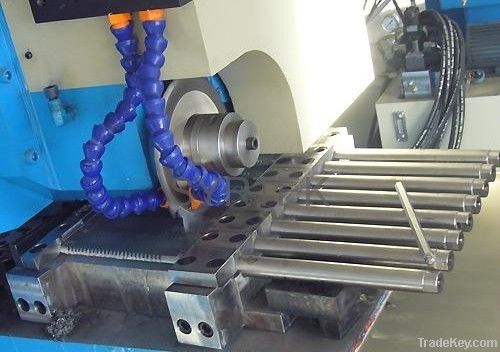

CNC Automobile Steering Rack Milling Machine

详情

This special CNC milling machine (SYR****6) is composed of lathe bed, ram guideway, slide carriage, power head, cooling water tank, etc. The main transmission is gear drive which is smooth and stable. feeding workbench and the lifting of the feed drive adopts high precision ball screw drive. The machine is characterized by good rigidity, high precision, high efficiency, low noise, stable milling. Mainly used for the rack (straight, helical) forming the machine processing of automobile steering pump rack, processing two and multi-tooth machining, formed at one stroke. It adopts KND system, Simens system, Servo Motor Control, etc (can be customized according to customer requirements), to achieve milling automatically. The machine is easy to operate, and saving the cost of production.

Specifications:

Feeding workbench

Workbench Desk Dimensions (mm): ***0×**0

Maximum stroke (mm): **0 servo motor, PLC control CNC axes, P4 grade ball screw.

Work feed speed (mm / min) :****0 (CVT-continuously variable transmission)

Servo motor power (KW): 3

Work retraction speed (mm / min) :*****0 (CVT-continuously variable transmission)

Milling head

Motor Power (KW): *1

Milling head down momentum (mm) :**0mm, CNC adjust, digital axis resolution 0.**5,

 P*-class ball screw).

Milling head spindle speed (rev / min): CVT

Cutter shaft diameter: Φ*0

Distance between cutter shaft diameter and milling head bottom center:**5mm

Milling cutter diameter: Φ**0

Machine tool dimensions(mm)?***0×***0×***0

Machine tool weight(T):*1

Rack applications

The machine is used in producing all kinds of automobile steering racks.

Our products are good quality with reasonable price, and life-long warranty,we

are looking forward to cooperating with the clients from home and abroad to create prosperous future!
