离岸价格
获取最新报价( Negotiable )
|1 Set Minimum Order
国家:
China
型号:
JPMX-303ESK
离岸价格:
( Negotiable ) 获取最新报价
位置:
China
最小订单价格:
-
最小订单:
1 Set
包装细节:
We can pack multifunction busbar processing machine in export polywood boxes
交货时间:
About 7 days after the payments
供应能力:
100 Set per Month
付款方式:
T/T, L/C, Western Union
联系人 Amy
Dingzhuang Industry Area,Tianqiao District,Jinan ,Shandong,China, Jinan, Shandong

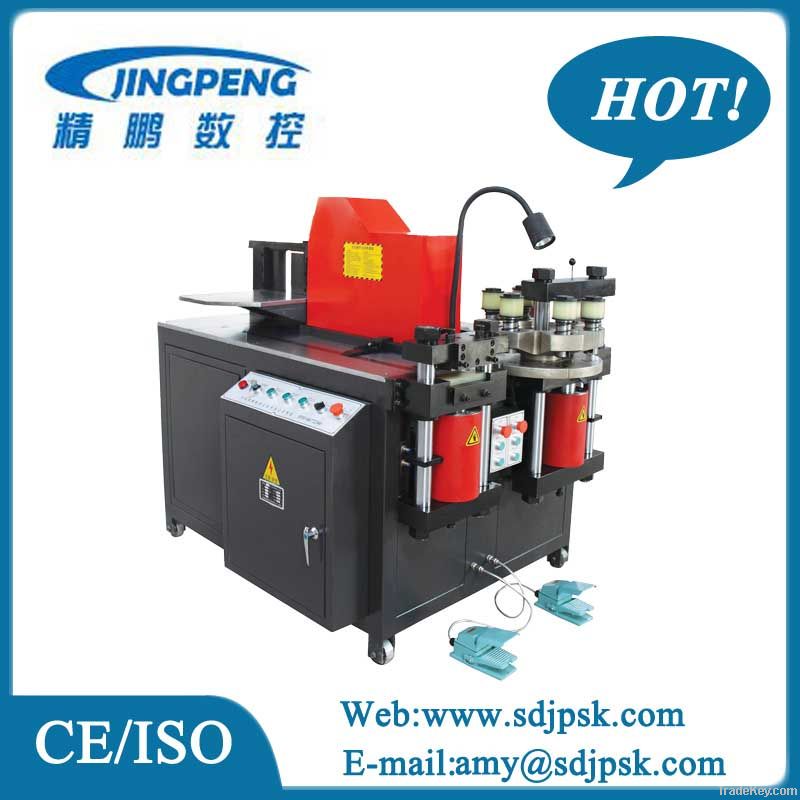

1.This series CNC busbar processing machine has three units: punching , shearingand bending. It iseasy toadjust each unit to shorten the processing time and improve the production efficiency.
A.The punching unit uses an united six-mode turnplate in tooth shape to make sure the upper mold and the lower mold are absolutely in the same center,improving the mold concentricity and longtening the working life. The turnplate is in tooth shape with good view and high strength. No need to frequently change molds, labor intensity is highly reduced. It is easy and quick to use.Producing efficiency is obviously higher than a traditional one.
B.The shearing unit uses punch shearing, incision interface is flat,no droop and burrs and waste,beautiful shape.
C.The bending unit uses a single-decker working table,which can make sure that three working positions can do their operations at same time without bothering the other.By Changing different mold It can do flat/horizontal bending, and vertical bending.CNC controls the bending angle by an imported PLC control system.Input a busbar thickness and an angle on a CNC touching screen,or a height and a side length to get the result what you need,such as Z bending.Bending accuracy is ±1,repeat accuracy ±0.3. The user can a data in advance, and the system will follow and do it. The field data can be put into the system at any time and be paged out for using repeatedly.
2.The bending unituses PLC control system,which have stable system and high accuracy.It is used to process copper and aluminum busbarsin different specification.
3.Four moveable trundles and
easily moved everywhere.There are two operating s, manual
and foot press,easy to operate..
|
Function |
Content |
Specification |
||
|
JPMX***3SK |
JPMX***3SK |
|||
|
Punch |
Max. punch force |
KN |
**0 |
**0 |
|
Diameter range |
mm |
4.3 ~ *5 |
4.3 ~ *4 |
|
|
Max. punch thickness |
mm |
*2 |
*6 |
|
|
Max. punch width |
mm |
**0 |
**0 |
|
|
Shear/Cut/Slit |
Max. cut thickness |
mm |
*2 |
*6 |
|
Max. cut width |
mm |
**0 |
**0 |
|
|
Horizontal bend |
Max. bend strength |
KN |
**0 |
**0 |
|
Max. bend width |
mm |
**0 |
**0 |
|
|
Max. bend thickness |
mm |
*2 |
*6 |
|
|
Bend accuracy |
Degree |
±0.1 |
±0.1 |
|
|
Relocation accuracy |
Degree |
±0.3 |
±0.3 |
|
|
Decker no. |
1 |
1 |
||
|
Vertical bend |
Max. bend thickness |
mm |
*0 |
*0 |
|
Max. bend width |
mm |
**0 |
**0 |
|
|
Min. bend angle |
Degree |
*0 |
*0 |
|
|
Other |
Machine size |
mm |
***0****0****0 |
***0****0****0 |
|
Power motor |
KW |
3*4KW |
3*5.5KW |
|
|
Weight |
KG |
***0 |
***0 |
|
|
Trundle |
pc |
4 |
4 |
|
|
Packing size |
||||
| 国家: | China |
| 型号: | JPMX-303ESK |
| 离岸价格: | ( Negotiable ) 获取最新报价 |
| 位置: | China |
| 最小订单价格: | - |
| 最小订单: | 1 Set |
| 包装细节: | We can pack multifunction busbar processing machine in export polywood boxes |
| 交货时间: | About 7 days after the payments |
| 供应能力: | 100 Set per Month |
| 付款方式: | T/T, L/C, Western Union |
| 產品組 : | busbar processing machine |
