C&Z purlin changeable roll forming machine
Equipment components: Manual uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting, run out table
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

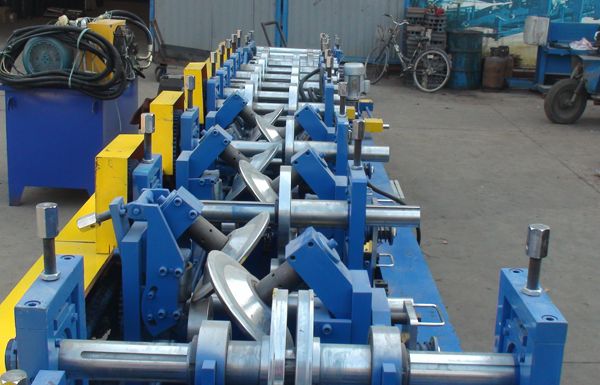

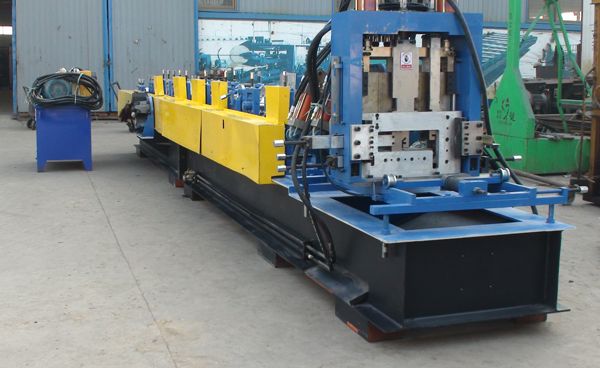

machine pictures

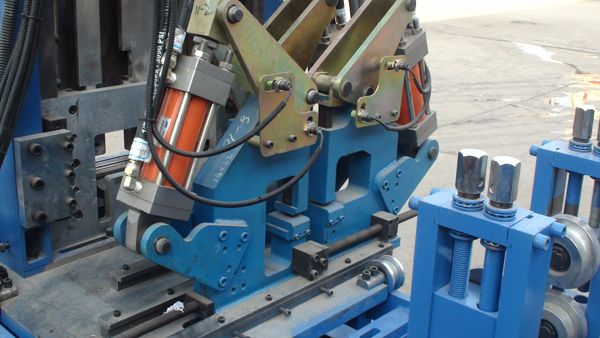

When you change from c purlin to z purlin,you only change the direction of rollers.
technology parameters
The weight of theMachine :9.0T
The total demension of machine: (length)*0m x (width)1.4m x (height)1.8m
1)Decoiler
Decoiler Type : manual decoiler
weight capacity of decoiler : 5.0T
2)Feeding and Leveling Device
It used for making the material flat before feeding into the roll forming machine

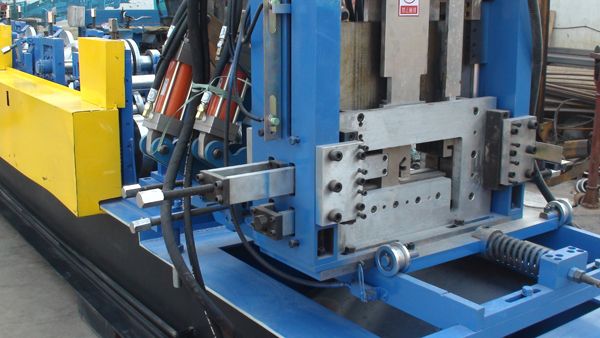

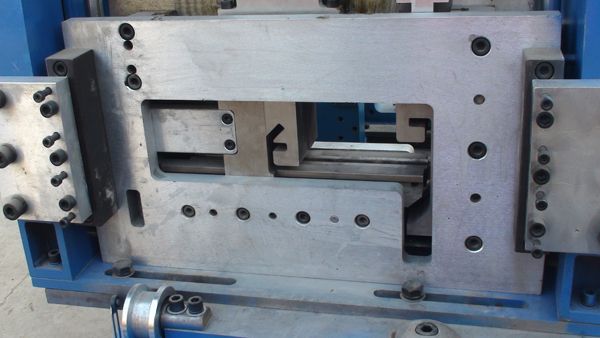

3)Hydraulic Punching & Cutting (punching and cutting are before roll forming)
Punching Type: Hydraulic Punching
Cutting type: Hydraulic cutting
Cutting material: Cr*2
Hydraulic power: 5.5KW
Hydraulic Pressure: *6Mpa
4)Rolling Forming System
main motor type : phase asynchronous motor(manufacturer: shanghai nanyang)
motor power: *5KW
speed of forming : ****4.8m/min
material of roller : GCr*5
*8 groups rollers
material of main shaft : *0Cr(The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming)
diameter of main shaft: ø*0mm
5)PLC Control System
Control the quantity &punching length& cutting length automatically
Voltage: **0V, 3 Phase *0Hz
Size of PLC Control Board: **0mm(L)x***0mm(H)x**0mm(W)
PLC manufacturer: Japan Panasonic
Solenoid valve
Oil hydraulic cylinder
Bearing
Oil pipeline
Touch Screen
Encoder
6)Product support frame
The length of product support frame : 6m
