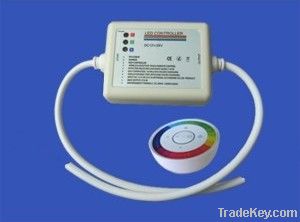

Color Ring Touching RGB Controller

详情

Color Ring Touching RGB Controllers,LED controllers, LED LIGHTS-COMLITE LED LIMITED


Operating Instructions(remote control is touching )

1.Touch ON/OFF ,you can switch on/off the RGB strip.
2.Slide the color ring RGB strip will show the same color.
3.Increasing color can adjust the current color to the most vivid,decreasing color is contrary,until pure white
4.You can adjust the brightness by dimming function,to brighten and dim the light.
5.Gradual change mode:Touch on again under monochrome mode condition,RGB strip will be changed into gradual Change mode.Increasing color will speed up the color change.decreasing color will slowdown.
6.Hopping mode:Under gradual change mode condition,touch on ,the RGB strip will be changed into hopping mode,Increasing color will speed up the hopping,decreasing color will slowdown
7.Under Gradual change or hopping mode,touching on switch will change one to the other.Close the RGB strip and restart it if you want to enter monochrome mode.



Attentions:

1.Input voltage of remote control must be the same as RGB strip's.

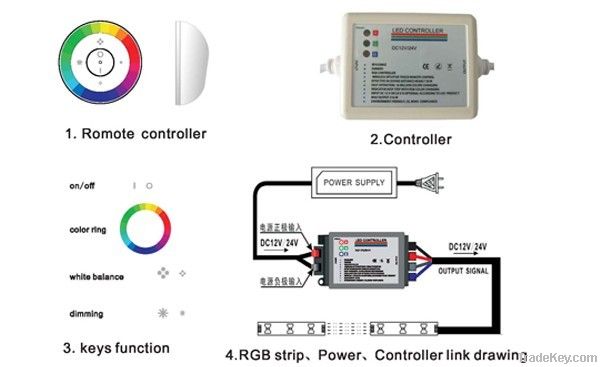

2.Match the color of output wiring when connecting.
3.When the color doesn't match,for example ,it displays blue when touching green,or displays green when touching blue,please check whether the wiring is correct.In this case,exchange blue and green wirings.
