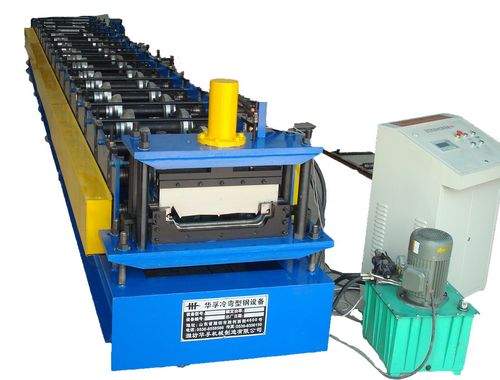

Color steel tile roll forming machine

详情

1.The chart of process flow:
 Decoiling*-active feeding**-forming**-measuring lengh**-cutting**-product to stand
2.Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
3.Technical parameters
1)Profile thickness:0.***1.0mm
2)inner tight decoiler
A.coil inner diameter:**0mm****0mm
B.max width of coiling:***0mm
C.max weight of loading:***0kg
3)main forming machine
A.Shaft material:*5# steel,bearing steel outer diameter *5mm
B.Main motor power:5.5kw
C.Forming speed:****0m/min
D.Voltage:**0v,*0hz
E.Roller station:*5
4)cutting system
A.hydraulic cutter
B.Blade and mould material:Cr*2 steel with quenched treated ****2°
C.Cutting system advanced hydraulic drive,after automatic cutting after forming.
5)control system
A.PLC
B.Coder
6)hydraulic system
A.Power:3kw
4.Spare Parts
1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2).Rubber mat 1 pcs;
3).Bolt spanner 1 pcs
Terms:
1.Delivery:according to customers' requirement
2.Package:export standard package for container
3.Payment:TT (*0% by TT in advance,*0% by TT after you inspect machine we need)
4.Delivery date:within *0 working days after receiving deposit
5.Products Warranty:*2 month,and we will provide the technical support for whole life of the equipment.
