Comprehensive CNC Milling Machine Experimental Training System

详情

1. This system adopts open structure and modular design with complete industrial components, covering training contents such as CNC milling machine electrical design, installation, wiring, debugging, parameters setting, PLC development, communication, precision measurement, programming, simulation, CAD/CAM, actual machining and so on.

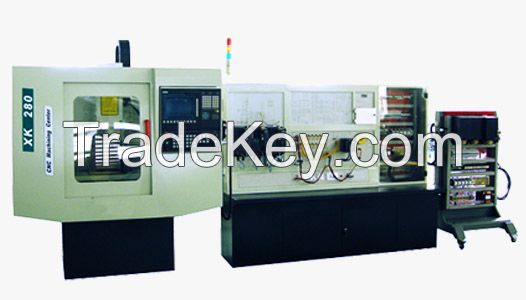

2. The device is composed of CNC experimental platform, XK**0 CNC milling machine and open electric control cabinet.
3. The CNC system can be configured according to users requirements.
4.

   > EXPERIMENTAL TRAINING CONTENTS
5. CNC system soft hardware composition, installation, parameter setting, debugging
6. AC servo driver wiring, debugging and dynamic characteristics
7. Spindle frequency converter wiring, parameter setting and debugging
8. CNC machine tool alarm recognition, fault diagnosis and maintenance
9. PLC command, programming, wiring and its application in CNC machine tool
10. Input and output interface definition, setting and debugging
11. Electric control cabinet design, arrangement, installation and wiring
12. Principle and application of sensors such as Hall element and proximity switch
13. Circular grating application and semi-closed loop control
14. Linear grating application (optional)
15. Reverse backlash and lead screw pitch error compensation function and application
16. CNC system data backup and communication with computer
17. Principle and control of CNC machine tool pneumatic system
18. Principle and control of double-linked cylinder
19. CNC milling machine mechanical precision inspection
20. CAD/CAM based DNC application
21. CNC machine tool programming, simulation and real machining
22.

    > TECHNICAL PARAMETERS
23. Work table: **0×**0mm
24. T-slot: 3×*0mm
25. Stroke(X/Y/Z): **0×**0×**0mm
26. Spindle speed: *0~***0rpm (stepless)
27. Tool shank type: BT*0
28. Spindle motor: 1.5KW, ***0rpm
29. Power: Three phase **0V, *0Hz, 5KVA
30. Dimensions: ***0×***0×***0mm
