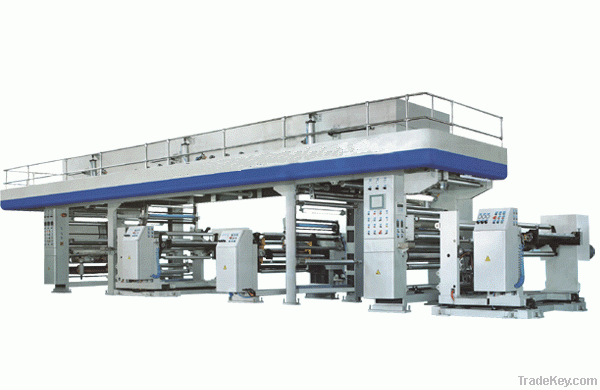

Computerize Rotogravure Machine

ZBAYE-E High Speed Computerize Colour Rotogravure Printing machine
Feature :
1.Adopting frequency vector conersion motors control the main motor,unwinding and rewinding, and tension of them.(seven motors controlled)
2.Lengthways and transverse accuracy are controller by the full automatic registering device, as well as the adv ane lengthways accuracy funtiong.
3.Video frequency system is in staled.
4.Non-shaft  pneumatic  conic  node  printing  plate  loading,  prompt  and convenient printing plate when change.
5.Sealed  hot  wind  circulationg  oven,  automatic  constant  temper ature, diesel oil air-stove or electrical heating for the drying methods.
6.Pneumatic draw knife, single motor controls the moving way, the moving frequency is adjustable.
7.Holistic  moving  oil  frame,  turning  the  ink in  the barrel with the rubber rollers, pneumatic pump circulation.
8.High  accuracy  gear  transmission  box,  adopting  patented  technique.
9.Unwinding and rewinding both worked by the dual-station mechanism,realizing  auto  material  change  without  machine  halt at high speed, adopting the neumaticrollers for the draw in and out.

Main Technical Parameters :

Model	ZAY ***0E	ZAY ****0E	ZAY ****0E
Effective printing width	**0mm	***0mm	***0mm
Max. Width of web	**0mm	***0mm	***0mm
Max. Printing speed	**0m /min	**0m /min	**0m /min
Max. Mechanical speed	**0 m /min	**0 m /min	**0 m /min
Max. Diameter of unwind/rewind	Ф **0mm	Ф **0mm	Ф **0mm
Inside diameter of roll core	ф *6mm	ф *6mm	ф *6mm
Diameter of printing cylinder	ф**0 ～ ф **0mm	ф**0 ～ ф **0mm	ф**0 ～ ф **0mm
Accuracy of computer registration	± 0.1mm	± 0.1mm	± 0.1mm
Tension control range *0～*0kg/full width	*0 ～ *0kg /Full Width	*0 ～ *0kg /Full Width	*0 ～ *0kg /Full Width
Heating power of oven	**0Kw	**4Kw	**4Kw
Total power	**1Kw	**5Kw	**6Kw
Weight of machine	****0kg	****0kg	****0kg
Overall dimension	L****0×W***0×H ***0mm	L****0×W***0×H ***0mm	L****0×W***0×H***0mm
