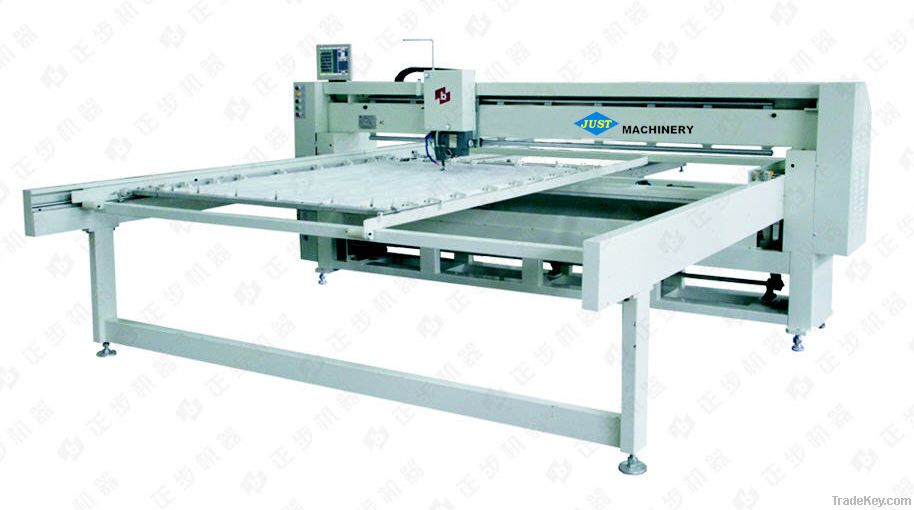

1. Main shaft driving by accurate spline, and sewing head driving by linear guide, to guarantee accurate and low noisy quilting.
2. Using industrial control system with USB port, main shaft by inverter, X axis and Y axis by stepping driver.
3. Easy to copy and delete, to view and rotate patterns, to read patterns in different format. With **0 patterns for choice, and easy to make new patterns by pattern software in computer.
4. By setting limit and edge space, automatically scales the pattern size.
5. For both continuous and jump patterns; Either forward or backward quilting; Overlap stitch length adjustable.
6. Single head, single needle, double line locked stitch, big rotary shuttle.
7. With thread breaking detection (machine stops at needle high position while thread broken) and pattern tracing function (easy to find the start point for quilting).
Testing system function: to fast detect machine working status, finding and solving any errors come across to the machine.Specifications
|
Model (型号) |
HFJ**6F |
HFJ**8F |
HFJ**0F |
HFJ**2F |
HFJ**5F |
|
Comforter size（装被尺寸） |
2.6m×2.8m |
2.8m×3.2m |
3.0m×3.2m |
3.2m×3.5m |
3.5m×3.5m |
|
Needle dropping size（落针尺寸） |
2.4m×2.6m |
2.6m×3.0m |
2.8m×3.0m |
3.0m×3.3m |
|
| 国家: | China |
| 型号: | HFJ-26F |
| 离岸价格: | 13000 / ( Negotiable ) 获取最新报价 |
| 位置: | China |
| 最小订单价格: | 13000 |
| 最小订单: | 1 Set |
| 包装细节: | - |
| 交货时间: | 15 days |
| 供应能力: | 60 Set per Month |
| 付款方式: | T/T, L/C |
| 產品組 : | - |
