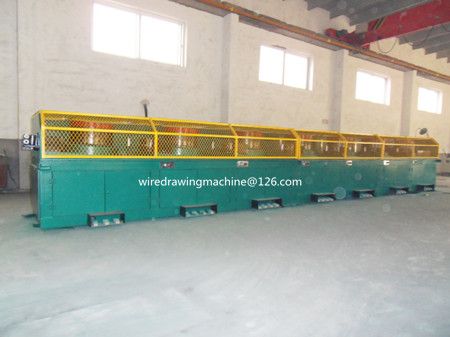

Continuous Wire Drawing Machine

详情

Straight Line Wire Drawing Machine
Max. inlet wire dia: 3.5mm
Mini outlet wire dia: 0.8mm
Framework:*4# B style U steel
Capstan:ZG*5# steel , diameter**0mm, coated tungsten carbide, HRC*0. Capstan running time more than ****0 hours. The height of spraying tungsten carbide is *0mm and the thickness is 2mm. The temperature of the capstan
Cooling type: narrow slit water cooling . water proof and anticorrosive treatment.

Die box:Welding part is adopted for the die box. The guide roller is in front of die box and coated with tungsten carbide. The die box is divided into lubrication cavity and cooling cavity. Ball valve adjusts water feeding flow. The position of die box can be adjusted to adapt the position of wire for drawing. The dancer arm wheel is in the entry of die box to adjust the drawing speed of every drawing block. It is driven by pneumatic cylinder. Tension roller is made of special steel alloy and heat treated to have long working life.
The wire tension is detected by the TE sensor(none touch type) dynamically and feedback signal to the motor driver.
PLC: SIEMENS S****0  made in Germany
Operation:including touch screen, emergency  ready , stop , accelerate , decelerate , fault and reset . Touch screen is colorful and the brand is Weinview . The yield can be presented on the screen by the meter-counter or weight-counter. The drawing speed can be adjusted on the screen.
