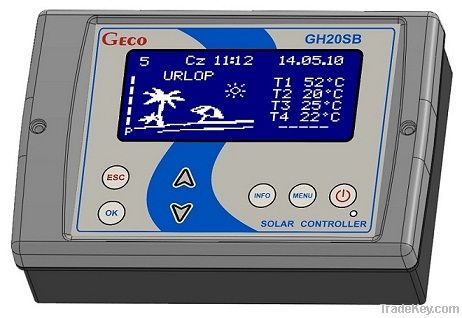

~The GH*0SB controller is a device designed to control water
heating hydraulic systems by using solar panels as the main source
of installation heat. The GECO solar collector controller GH*0SB
integrates perfectly with additional external devices, like: coal
boiler, fireplace, electrical heater or gas boiler in even very
expanded installations. The controller contains a database
with many solar panel
to select, from which are managed by using pumps or *-way valves.
All available solar panel configurations in the controller
integrate with the most varied designs of heating system
installations.
various configurations The Controller is modern in its design and
very easy to use as it is equipped with a user panel with a
transparent keyboard and an LCD graphic display.
• The GH*0SA controller contains a database with *7 of the most
popular
configurations, including the East-West solar
heating variant.
• Audio and visual warning appears in case of system alarm.
• Possibility adjustment of display backlight intensity and
time out.
• Manual cooling function.
• In case of power failure the controller keeps user-defined
settings unchanged
after restart.
• Volume control for system alarm and keyboard.
• Ability to integrate with devices which use **0V power
supplies like: *-way
valves, circuit pumps, collector pumps and back-up
electrical heaters.
• Controller contains manual control function, where each
device can be
separately activated and deactivated. Current status of
device operation is
always displayed in the system scheme during manual and
automatic work.
• Collector pump rotation speed adjustment.
• The Controller has an inbuilt module for recording average
power collected and
the energy generated by the panels. The Controller
enables recording and
readout of power and energy statistics for user-defined
intervals.
• Mounted real time clock with independent power source.
• Possibility pioritise heating in expanded installations.
• Panel overheating prevention function to protect panel
against damage.
• Holiday function - for economic use while away.
• Anti-Legionella function for protection from legionella
bacterium.
• Cold weather protection to prevent freezing during
winter.
• Enables panel type selection, between flat plate / tube.
| 国家: | Poland |
| 型号: | GH20SB |
| 离岸价格: | 获取最新报价 |
| 位置: | - |
| 最小订单价格: | - |
| 最小订单: | 1 |
| 包装细节: | - |
| 交货时间: | 21 days |
| 供应能力: | - |
| 付款方式: | - |
| 產品組 : | Heating solar system device |
