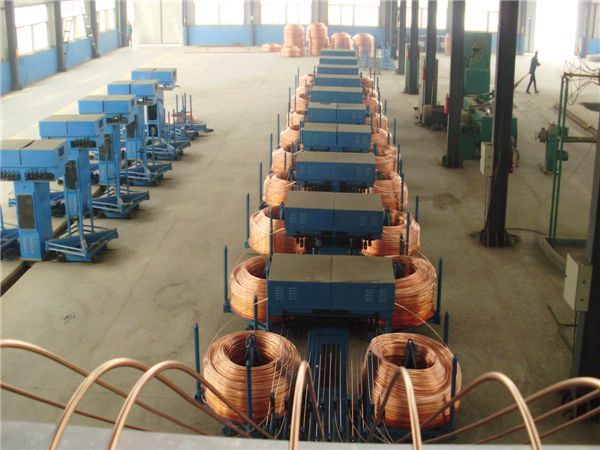

Copper Rod Continuous Upcasting Machine
Product Description
Copper rod continuous upcasting machine is used for producing bright and long oxygen-free
copper rod, copper tube, flat copper bar.This machine can directly produce different
specifications of copper rod,copper tube and other special shaped copper material continuously
from electrolytic copper.
Main Device Configuration
a) Upward continuous casting machine
b) Electrical system
c) Computer programming, Servomotor Driving, PLC controlling, Frequency Conversion rewinding
d) Electrical furnace
e) Dragger
f) Re-winder
Working Process
The Main Technical Parameters
| Model | Annual Output(tpyr) | Casting Strands Qty | Power Consumption(KW) | Installed Capacity(KVA) | Rod Dia.(mm) |
| SYLZ-1000T | 1000 | 2 | 100 | 160 | 8-30 |
| SYLZ-2000T | 2000 | 4 | 160 | 220 | 8-30 |
| SYLZ-3000T | 3000 | 6 | 220 | 300 | 8-30 |
| SYLZ-5000T | 5000 | 8 | 290 | 330 | 8-30 |
| SYLZ-6000T | 6000 | 10 or 12 | 300 | 350 | 8-30 |
| SYLZ-8000T | 8000 | 14 | 400 | 500 | 8-30 |
| SYLZ-10000T | 10000 | 16 | 450 | 600 | 8-30 |
| SYLZ-12000T | 12000 | 20 | 480 | 600 | 8-30 |
| SYLZ-15000T | 15000 | 24 | 700 | 900 |
| 国家: | China |
| 型号: | SYLZ |
| 离岸价格: | 50000 ~ 200000 / Sheet 获取最新报价 |
| 位置: | XINXIANG |
| 最小订单价格: | 50000 per Sheet |
| 最小订单: | 1 Sheet |
| 包装细节: | paper box |
| 交货时间: | 60-70DAY |
| 供应能力: | 20 Sheet per Year |
| 付款方式: | T/T, D/P |
| 產品組 : | copper wire cable making machine |
