Our
block ice machine with ammonia system includes *0 kinds of
capacity to be selected3/5/*0/*5/*0/*0/*0/**0/**0/**0/ tons/day .the

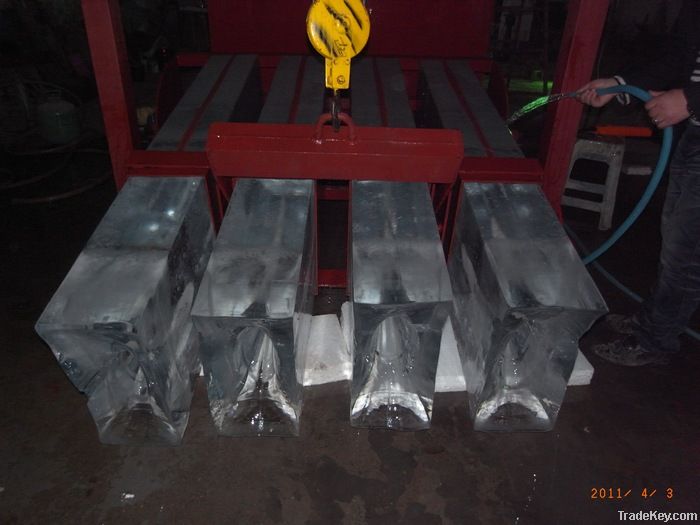

plants are available in production for ice of two forms ,i.e.
,transparent ice and white ice ,which can be divided into three
specifications ,*5kg,*0kg,and**5kg.
The
complete plants for ice making to be supplied by our works
including ammonia refrigerating compressor ,accessories and
components to be matched to the range of plants, equipments to be
mounted in ice making shop, and lifting equipments ,but except
covering floors over ice making tands , insulating materials for
plans. note other requirement when ordering.
Not only are the standard complete plants for ice making supplied
with a wide ranges ,but the non-standard plants ,refrigeration
systems ,and ice storages to meet the users ,needs of ,designed
by our works.
Ice making equipment:
Ice making tank
The ice making tank is a rectangular water tank ,welded of steel
plates ,evaporator coils are mounted as both ends .the inner
walls of the tank are welded by pieces of angle steel as frame
for placing the frame carrying the ice cans ,the tank is filled
with bringer of certain concentration .the tank should be wrapped
by insulator and moisture barrier around its four sides and under
its bottom, to prevent heat from entering the tank .if is covered
by a wooden cover (made by the users )ice making tank will be
supplied in semi-finished product.
Evaporator coils
The evaporator coils are welded of two main pipes and two rows of
spiral pipes and are set within the ice making tank .liquid
ammonia enters the evaporator coils through the throttle valve
and absorbs heat from brine ,thus resulting in vaporizing liquid
ammonia and temperature falling of brine.
Vertical agitator
It is mounted on both sides within the ice making brine in the
tank to make brine in the tank to make brine flow rapidly through
the space between evaporator coils and ice cans ,so as to
increase efficiency of heat transfer.
Ice cans
The ice cans are made of galvanized steel plate ,and is some what
taper shaped in order to facilitate the discharge of ice blocks
.top openings of the ice cans are riveted with flat steel in
order to get reinforced .
thawing tank
The tank is an open-type water container filled with water at the
temperature o f*5℃**0℃.it is used for
melting surfaces of the ice blocks in contact with ice cans ,in
order to facilitate the discharge of ice blocks from the ice
cans.
ice-tip
The ice tip is a frame of L-type supported by its both ends on a
bracket ,it is used to slant the ice cans for discharging ice
blocks.
Ice can frame
The ice can frame holding a row of ice cans is put on the ice
making tank ,it can be lifted up and put into the tank by a
double-hook bridge crane.
Blowing system
This system includes rotor type blower air cylinder etc please
inform us before placing order if it is to make transparent
ice.
| 国家: |
China |
| 型号: |
SNB
|
| 离岸价格: |
10000 / Unit （面議）
获取最新报价
|
| 位置: |
China |
| 最小订单价格: |
10000 per Unit |
| 最小订单: |
1 Unit |
| 包装细节: |
wooden case |
| 交货时间: |
30days |
| 供应能力: |
100 Piece per Month |
| 付款方式: |
T/T, L/C |
| 產品組 : |
BLOCK ICE MACHINE
|
