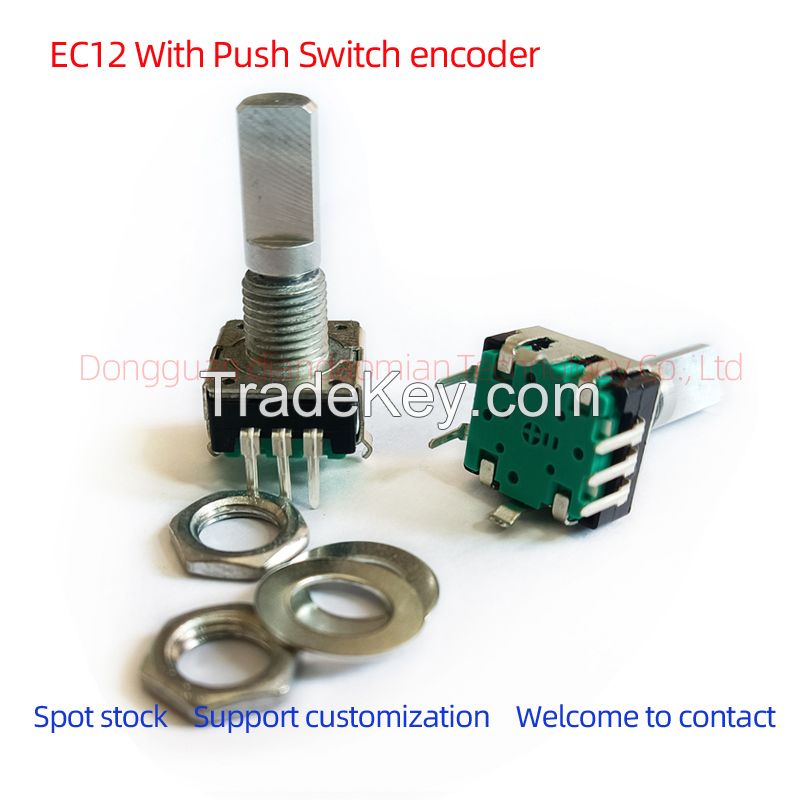

EC12 Rotary encoder

详情

The rotary encoder is an electromechanical device that can convert the angular motion of the shaft into a pulse signal with a phase deviation of *0 ° between A and B phases, where C is the reference ground for A/B signals
1. The positive and reverse directions can be obtained according to the phase relationship of A/B signals.
2. The number of rotating steps can be obtained by counting the pulses.
3. The angular velocity can be obtained according to the counting of pulse in unit time.
In addition, the axis of the rotary encoder can not only rotate horizontally, but also move up and down to realize the function of keys

*********************************************************************************************************-

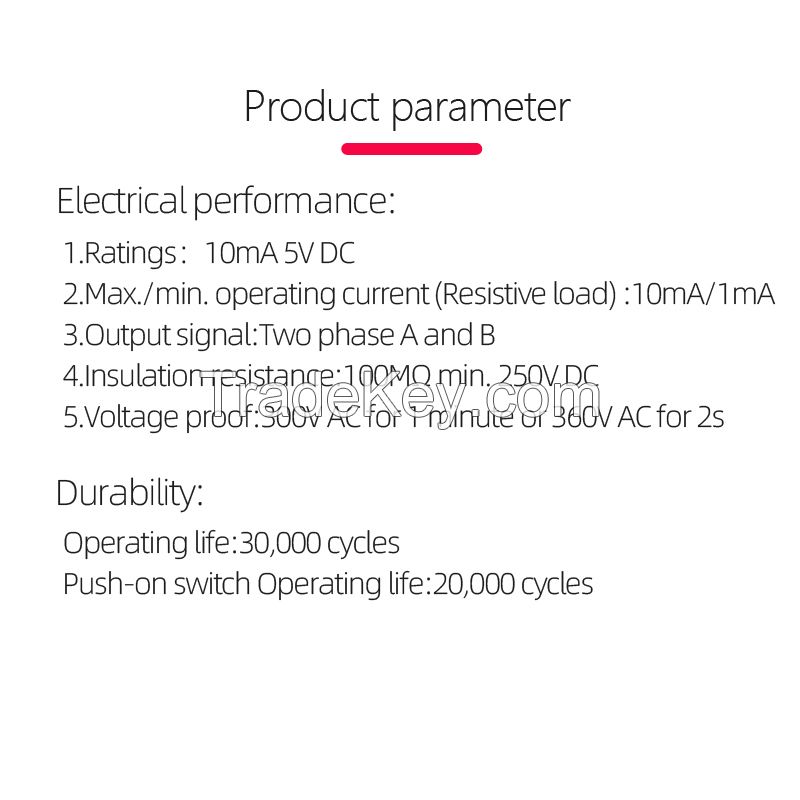

Product parameter description
Control part orientation：Vertical/Horizontal(Optional)
Actuator configuration：Flat/Serrated (Optional)
Number of detent ：*4/*4
Number of pulses ：*4/*2
Pulse direction ：Positive direction
Detent torque：*****0gf.cm
Push-on switch ：with/without (Optional)
Travel of push-on switch：0.5mm
Ratings :*0mA DC 5V
Rotating life:*0,**0 cycles
Push switch life:*0,**0 times

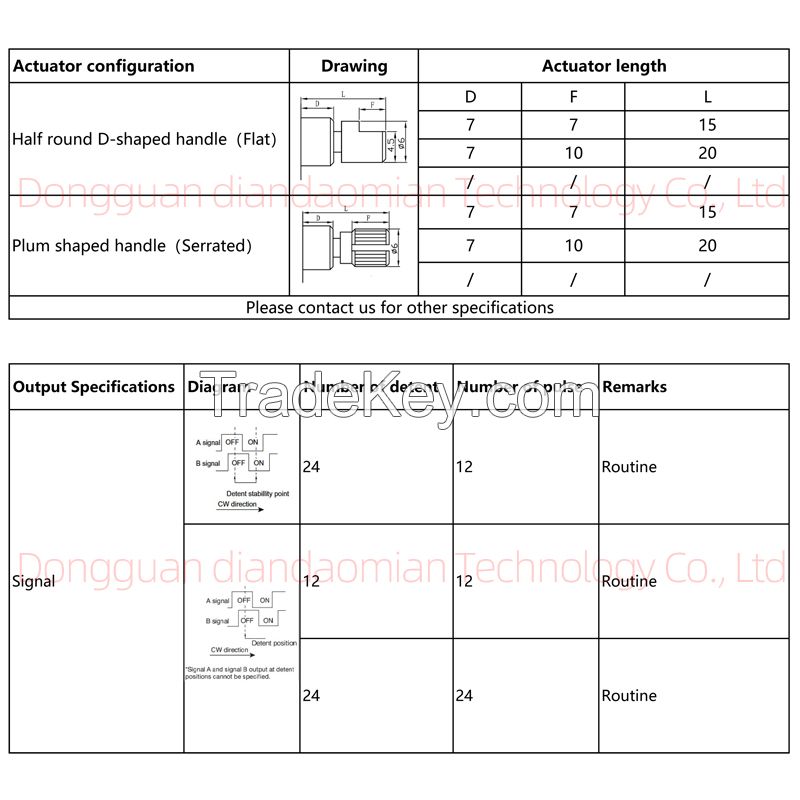

Actuator configuration
Half round D-shaped handle(Flat)/Plum shaped handle(Serrated)
Actuator length
Total length:
L=*5 D=7 F=7
L=*0 D=7 F=*0

Output Specifications
Output : Incremental (Two phase A and B)
Number of detent :*4/*4 (Optional)
Number of pulse :*4/*2 (Optional)
