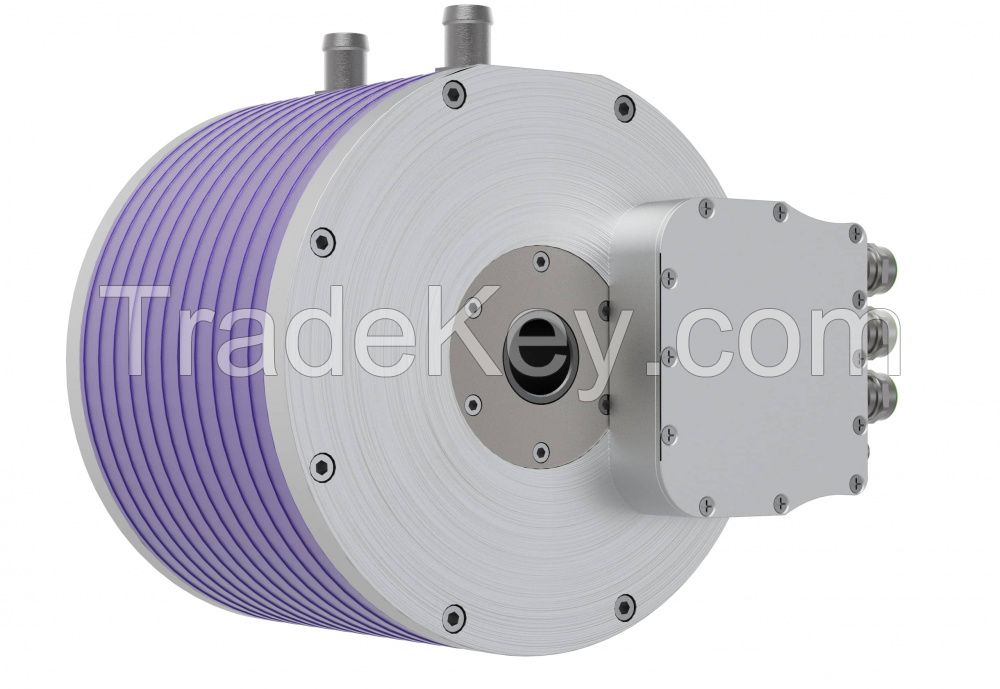

The RUBRUKS MVM-PM**8 0 AC electric motor is a reversible
synchronous electric machine with permanent magnets. The electric
motor is designed to operate on a voltage of 3 6 0 V, providing a
maximum torque of 4 4 0 Nm.
Suitable for electric vehicles, hybrid vehicles and agricultural
machinery.
Peak power s2 3 0 sec, kW 1 5 4
Rated power s1, kW 8 0
Rated voltage, V 3 6 0
Maximum speed, rpm 9 0 0 0
Peak torque s2 3 0 sec, Nm 4 4 0
Nominal torque s1, Nm 2 0 6
Efficiency, % 9 6
Maximum current, A 4 5 0
Overall dimensions (DxL), mm 3 0 0x2 6 0
Weight, kg 6 5
Type of cooling system liquid
| 国家: | Russia |
| 型号: | MVM-PM1-80 |
| 离岸价格: | ( Negotiable ) 获取最新报价 |
| 位置: | Russia |
| 最小订单价格: | - |
| 最小订单: | 1 Unit |
| 包装细节: | Box |
| 交货时间: | Car Train Ship Airplane |
| 供应能力: | 100 Unit per Month |
| 付款方式: | - |
| 產品組 : | - |
