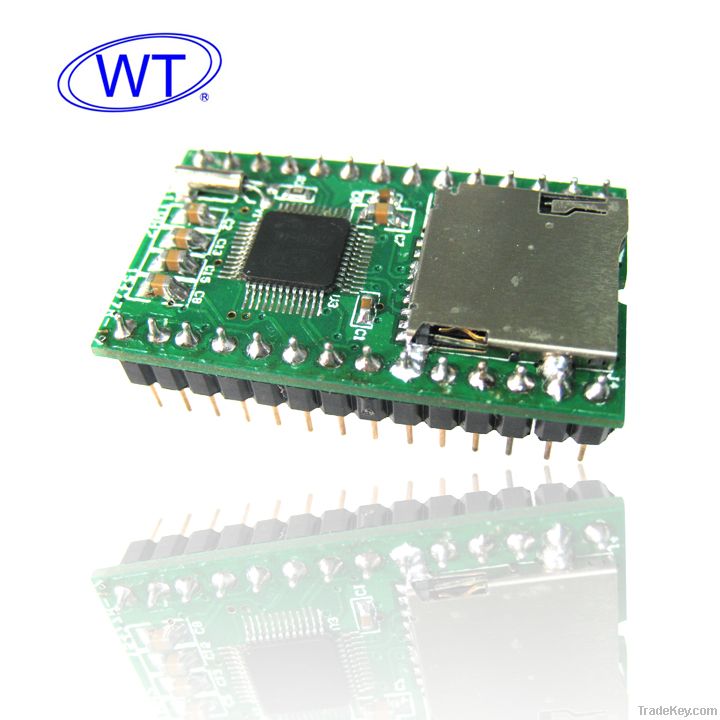

Embedded Micro SD card
MP3 Module support one to one
keycontrol
Product name
:Embedded Micro SD card MP3 Module ,Industrial
Mp3 Module,serial interface mp3 module,,audio system module,
Embedded Audio Module, High Quality Embedded Audio
Module,Industrial Mp3 Module,
Key Features
1.
Built-in 1W amplifier, can directly drive
1W/8Ω speaker.
2. BUSY output port
available.
3. Support SPI flash and micro SD
card as the meories at the same time.
4. Standard 5 Keys MP3 player,
and a ADC key available to
A Special function key,play next sound when press it short time,and Loop current sound. Copy data from TF card to
Flash only by
pressing key long time.
5. Support standard RS**2 serial
control.
6. USB interface pins
available and
support USB flash playback.
7.
Support to copy data form micro
SD card and USB flash to Flash.
8.
Set iSound.mp3 configuration file to change mode when power ON.
9. Great stability for long-time playback and strong anti-interference ability.
Support
·FAT*6,FAT*2 file system
Support *6Kbps~**0Kbps bit rate and 8KHz~*4.1KHz sample rate MP3
and WAV two format file
WT***1 series Function Table
|
Model |
Package |
Size (mm) |
SPI download |
RS**2 Serial control |
Press to copy |
ADC_ KEY |
SD card |
SD card socket |
U disk |
One to one key control |
A,B mode |
|
WT***1M****6P |
*6PIN module |
*0.9**9.6 |
√ |
√ |
√ |
√ |
X |
X |
X |
X |
X |
|
WT***1M****8P |
*8PIN module |
*6.2**9.1 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
X |
|
WT***1M****8P |
*8PIN module |
*6.1**9.7 |
√ |
√ |
√ |
√ |
√ |
X |
√ |
X |
X |
|
WT***1M****4P |
*4PIN module |
*0.9**9.6 |
√ |
√ |
√ |
|
X |
X |
X |
X |
X |
|
WT******8L |
TQFP*8module |
9.0*9.0 |
√ |
√ |
√ |
√ |
√ |
X |
√ |
√ |
√ |
WT***1 series module pin assignments
Any Question,Please feel free to contact with us
