产品规格

Condition: New
Brand Name: Zhongji
Product Type : EPS
Processing Type : Continuous Pre-Expanders

详情

Main Technical Specifications of EPS Continuous Pre-Expanders:

Number	Items		Type Unit	EPSCE**0	EPSCE***0	EPSCE***0
1	Dimension of Foaming Tank	Diameter	mm	**0	***0	***0
1	Dimension of Foaming Tank	Height	mm	***0	***0	***0
2	Capacity		kg/h	******0	******0	*******0
3	Steam Inlet DN		mm	*5	*5	*0
4	Air-Compressed Inlet DN		mm	*0	*0	*5
5	Steam Pressure		Mpa	0.6	0.6	0.6
6	Air-Compressed Pressure		Mpa	0.6	0.6	0.6
7	Agitation Motor	Power	kw	5.5	6.8	8.5
7	Agitation Motor	Rotation	r/min	*6	*6	*6
8	Max. Contour Size		mm	*0×0×**0	*0×0×**0	*0×0×**0
9	Machine Weight		kg	***0	***0	***0

Main Features of EPS Continuous Pre-Expanders:
1.The automation phase of the beads expansion is accomplished by loading the EPS beads into the feeder, expansion of the EPS beads, the expanded EPS beads will then enter the fluidized bed (optional), and then go through the Centrifugal Fan and Conveying device to be transported into the Aging Silos;

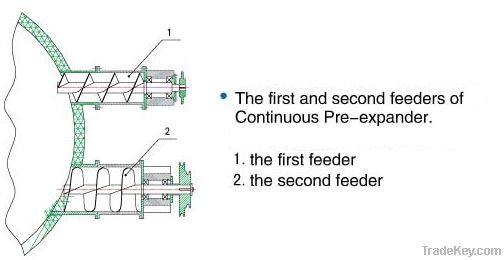

2. The machine’s feeder system includes the first-phase and second-phase feeders. The first-phase feeder uses the transformer to regulate the feeding speed, the second-phase feeder uses the method of mobile guide way and wind pipe to blow the EPS Beads to cool down the temperature, ensuring that feeding is stable;
3. To accomplish the automatic feeding, the Photoelectric Switch should control the level of the EPS beads in the Automatic Negative Pressure Feeder (Optional).
