excavator simulation teaching instrument

详情

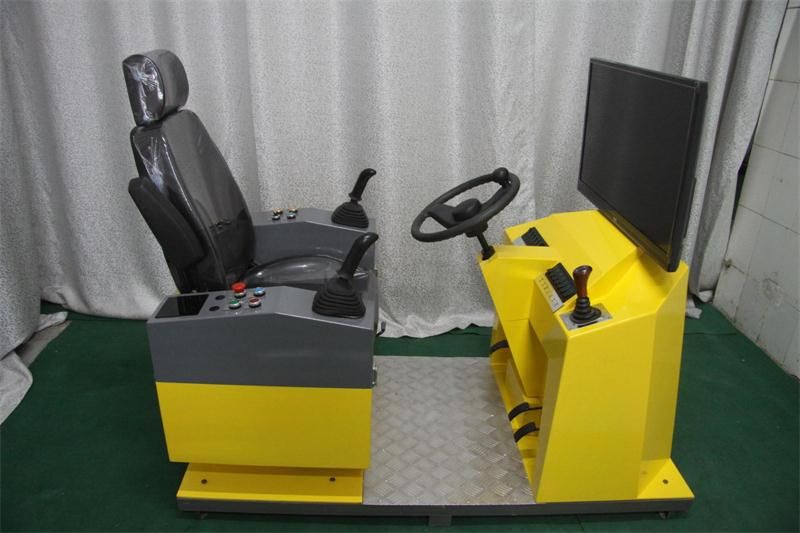

WM series excavator simulator is my company according to the latest excavator driver training syllabus and the latest industry standard driving simulator (JT/T*******5) development of new products, a lot of technical innovation and improvement, on the cockpit and configure the latest "WJR excavator simulation software *1. 0" version of the software provides a rich, lifelike various operating subject and function, for excavator training school preferred teaching equipment.

Design concept:

Excavator operation, choose what position the shovel digging, in what way (bucket digging alone, bucket and forearm combined mining), relationship to the excavator force can give full play to the mining, the efficiency is high. In the operation of the excavator, improper operation can cause the damage of the excavator parts, and this phenomenon is the most easy to occur in XinXun gunner operating. Therefore, xuzhou Thurber electronic technology co., LTD., developed a set of the engineering simulator can simulate excavator operation, mainly used in engineering machinery pilot training, evaluation, solve the cost is high, the risk of a series of problems in the process of training.

WM excavator simulator is my company according to the latest excavator driver training syllabus and the latest industry standard driving simulator (JT/T*******5) development of new products, a lot of technical innovation and improvement, on the cockpit and configure the latest "WJR excavator simulation software *1. 0" version of the software provides a rich, lifelike various operating subject and function, for excavator training school preferred teaching equipment.

Hardware indicators:

Host configuration brand PC (the national three years of group)

More than ***0, 2.0 Ghz CPU, motherboard, Intel i3

Hard disk capacity of **0 g hard drives at a high speed

More than **0 1 g GDDR5 graphics GTX

More than 2 g memory

Static voltage supply voltage 5 v Vcc *0%, 7.5 mV/mT ~ *0 mV/mT

Identity readers support card TYPE: in accordance with ISO/IEC ****3 TYPE B

MCU power supply voltage static voltage 5 v, USB interface, working current < *0 ma

The system software:

The simulator is equipped with the latest WJR excavator *1.5.0 simulation software, the software for the completion of excavator training to the latest standards of the industry design company, with independent intellectual property rights, is a combination of theory and the practice operation evaluation, the latest software.

Software used excavators multi-freedom digital model, realize the excavators various steering, walking and forearm, bucket movement realistically simulate; Besides using the latest computer technology to realize the real 3 d scene and the voice of the realistic simulation.

1, training project carried out in accordance with the three models respectively operation training, basic training, the inspection operation and theoretical study.

A), the basic training mode: empty action, digging training, walking, driving, loading training, training for utilities to dig trenches, leveling training, scooter, up and down the hill, the broken training.

B), the inspection operation mode: digging to jilt, digging loading, brush slope digging ditches, leveling training, scooter, up and down the hill, the broken training.

C), the theoretical study

2, the software provides two kinds of different types (6 tons, *0 tons) excavators 3 d model of the practice for students to choose.

To implement a simulator can let students practice to different tonnage excavator operation method, providing a full range of training content, for the operation of the graduation practice to lay a solid foundation. (don't have this function for similar equipment and the unique feature of)

3, through the red and blue glasses to realize the real 3 d visual effect.

Software to realize the same red and blue glasses and 3 d visual effect function, simulator by wearing red and blue glasses professional operation, in order to realize software unique 3 d dynamic visual effects, greatly improving the students' interest in learning and operating effect, the complete 3 d graphic visual effect upgraded to a high standard of 3 d dynamic visual effect. (don't have this function for similar equipment and the unique feature of)

4, real-time evaluation system

Students after each topic in software operation, the system will be based on its completion time, the remaining points to judge whether the students operating qualified, convenient for students, teachers, to understand the learning effect in time and adjust teaching, thus greatly improve the school quality of teaching.

Product advantage:

Appraisal standards of the state

WM excavator simulator is my company according to the latest excavator driver training syllabus and the latest industry standard driving simulator (JT/T*******5) development of new products

Assessment of project comprehensive

Inspection operation mode: digging jilt square, digging loading, brush slope digging ditches, leveling training, scooter, up and down on the downhill, breakage training. Students after each topic in software operation, the system will be based on its completion time, the rest of the scores to judge whether the students operation qualification

Training is convenient

Excavator covers an area of big, make the training work of trouble. Use teaching instrument training and evaluation, training on a large scale concentration field can be. Whether it is the day, rainy day, training time flexible adjustment according to the school situation, completely solve the problem by environmental or venues such as the inconvenience caused.

Improve security

Excavator giant, once the error can be caused incalculable accidents and loss. When using the teaching instrument training not machine, itself, faculty, staff and the surrounding bring surprise and risk assets, avoid to cause safety accidents.

Cost savings

Teaching instrument can effectively save the real machine training time and resources. Real machine high energy consumption and remove the installation cost a lot of manpower and material resources and financial resources; And a teaching instrument training costs just 0.5 yuan/hour, save huge teaching expenses for training institutions.

Thurber we solemnly promise:

1. The free on-site installation and debugging.

2. The free training teachers' operation.

3. The hardware warranty year, the warranty period, free on-site maintenance, in not only taking electronic vulnerable parts. Warranty, a certain partners and the cost of raw materials.

4. The software for a free upgrade maintenance free of charge.
