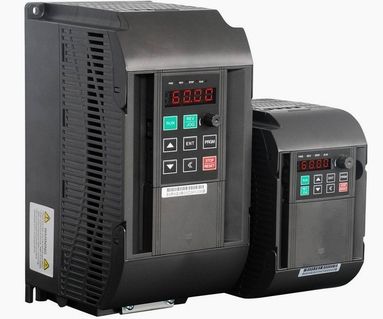

Frequency Inverter

详情

FREQUENCY INVERTER INTRODUCTION
(High Performance & Vector-Control AC Driver)
Quick response is available by using special DSP chip which is used to Control high speed motor The modular hardware design can make system work with high stable

Performance
Perfect shape design with fluent outline is popular with customers The fans of AC driver can be replaced easily by adopting independent wind Channel. The effect of heat dissipation is very good Users can choose the following four control method according to their Application needs: Vector Control without PG Card; Vector Control with PG Card; Torque Control; V/F Control There are two ways of analog signal output and one way of pulse signal Input. More powerful multi-functional spare terminals are available for choice The special function of auto-adaption can effectively solve the problem of Frequent trip-off caused by over current AVR function can make the AC driver don't stop when instant power-fail Occurs.

The functions like PID inside, *6 steps of speed control and simple PLC can Meet different application needs Users can choose PC or PLC to control the upper computer by RS**5 Communication interface with MODUS RTU ASCII protocol inside

Technology Features
I/O characteristics
Rated Input Voltage Range: **0V/**0V *5%
Rated Input Frequency Range: *7~*3Hz
Rated Output Voltage Range: 0~Rated Input Voltage
Rated Output Frequency: 0~**0Hz
Peripheral Interface Characteristics
Programmable Digital Input: 6 channels
Open Collector Output: Provide 1 output channel
Provide 1 output channel )
Analog Output: Provide 2 output channels:
FM Terminal: 0/4~*0mA or 0~*0V
AM Terminal: 0 ~*0V
( notice: 7.5KW and below only provide FM terminal )
Channel: 0~*0 kHz
Control Characteristics
Control (SVC) mode, V/F control mode, Torque control mode
Overload Capacity: **0% of rated current for *0 seconds and **0% of Rated current for *0 seconds.
Start Torque: 0.5Hz/**0% (SVC)
Rotation Speed Ratio: 1: **0 (SVC)
Speed Control Accuracy: 0.5% of maximum speed
Carrier Frequency: 1.0~*5.0 kHz
Function Characteristics
Communication setting, PID setting, etc.
PID control function
Multi-speed control function: *6 steps speed control Oscillating frequency control function
Non-stop function when instantaneous outage happens
Automatic voltage adjustment function: Automatically keep the output Voltage constant when power supply is not stable.
Provide up to *5 kinds of faults protection function: Over-current,
Overvoltage, under-voltage, over temperature, lack of phase, overload and Other protection function. Size Form (Power Range≤ 7.5KW )
