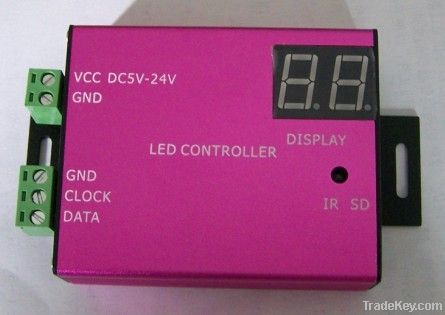

Full color LED controller

详情

1、 the controller controls up to ***6 points, can control the drive chip has LPD***3, LPD***6, UCS***9, UCS***2, D**5, D**5, P***3, SM****6, WS***1, WS***3, CS***3, SD**0, UCS***3, UCS***9, UCS***2, TLS***1, TM***2, TM***9, TM***4, TM***3, DZ***9, LPD***9, DMX**2.Single chip DMX**2 and drive up to ***8.Because the chip itself grade-connecting ability and the transmission rate, so that the actual application is difficult to reach the maximum points, lamps and the connection is too long can reduce the actual control points.So, ***6 point controller output capacity, specific can control how much light is measured, please refer to.

2、the controller has three work models: DAT model, monochrome mode and mixed mode (only ***3, ***6, WS***1 and SD**0 support single color mode).

After the controller is electrified defaults to DAT mode, DAT mode need to produce pattern, the software generated DAT files are copied to the SD card, and then inserted into the controller of SD card SD card slot.In the controller, cannot leave the SD card.

Monochrome mode and mixed color pattern is the use of remote modulated color, red, green, and blue can create different gray scale, also used the three different color brightness into other colors.

3、 the SD card be formatted for the FAT*6 format (in the computer display for the FAT), in support of the largest 2G SD card.

4、the DAT file allows a maximum of *4, when broadcasting digital tube display filename alphabetical sequence number.

5、 after the controller is electrified, the default player first file, and has been repeatedly play the current file, until the switch DAT file.

6、size: *1 * 6 * 2cm
