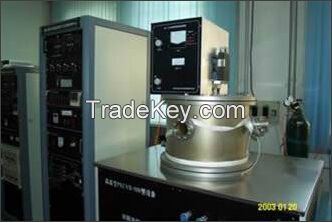

Fully Automatic CVD Diamond Machine

详情

Product    HFCVD***0 Hot-filament Chemical Vapor Deposition Diamond Machine
Size of the deposition chamber**0 mmH**0 mm  This Diamond is Black Color Diamond usually used to be the hardest Industry Tool Cutting Head
Size of the substrate table    **0 mm×H*4 mm
Height of the substrate table    ******0mm
Rotation speed of the substrate table    ***0RPM (adjustable)
Electrode size    *4mm×**0mm
Electrode current    **0A
Film type    thick diamond film, diamond-like films, SiN film and Si film, etc
Structure of vacuum chamber    Vertical front-opened door and the rear exhaust system, double-layer cooling water
Ultimate vacuum degree    8.0×***5Pa
Vacuum system    Turbo-molecular pump + mechanical pump + maintain pump
Vacuum measurement    Two low one high figures show composite vacuum gauge, film pressure instrument
Control system    Button manual control, PLC automatic hand-matching or computer control
Vacuum speed    Pumped from the atmosphere to ***3Pa  *0min
Gas process control    3 ways process gas flow control and display system
Alarm and protection    It can alarm and implement the appropriate protection measures for abnormal situations, such as water shortages of pump and electrodes, over-current and over-voltage, open circuit.
Optional parts    Cooling circulating water machine
Fully Automatic Machine !! CVD Diamond products have Excellent and Stable Quality !!
