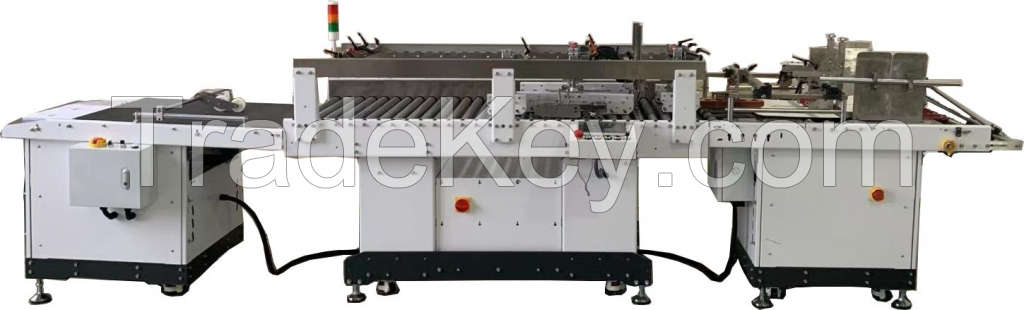

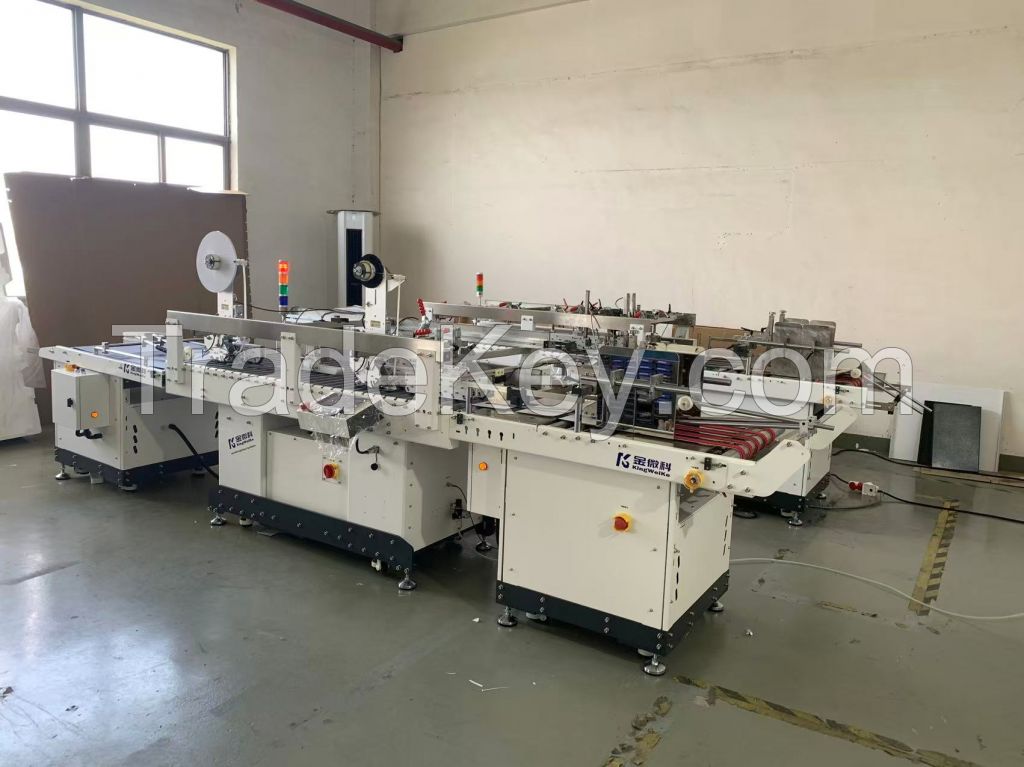

Automatic Steering Multi-Angle Double-Sided Tape Application
Machine is a high-end paper processing equipment developed by
Shanghai Kingweike Intelligent Technology Co., Ltd. based on
advanced European technology. Designed specifically for the
precise tape application needs of various paper products, it is
widely used in large-scale production scenarios such as folding
cartons, paper bags, and paper packaging liners. Integrating
multiple functions including automatic paper feeding, precise
steering, multi-angle tape application, and segmented tape
application, the equipment effectively improves the efficiency
and accuracy of paper tape application processing, reduces
manual operation intensity, and provides core support for
enterprises to realize automated production through its
reasonable structural design, efficient transmission system,
and intelligent control system.
In terms of core structural design, the equipment adopts a
scientific "I"-shaped main structure, which balances
lightweight and high-strength characteristics. With a total
weight of approximately ***0kg, it is not only easy to move
flexibly in the workshop (equipped with flexible movement
function) but also ensures the firmness of long-term stable
operation. The overall dimensions of the equipment are ***0mm
in length × ***0mm in width × ***0mm in height. The compact
structural design can adapt to the layout of production
workshops of different scales without occupying a lot of
production space. The transmission system adopts the design
concept of a lightweight machine, and the main transmission
part uses high-quality nylon sheet base belt for transmission,
which has the advantages of wear resistance, low noise, and
high transmission efficiency. Driven by a 1.5KW main motor, it
achieves a maximum transmission speed of *0m/min, which can
fully meet the needs of high-speed production; the paper
delivery feeder is equipped with a 0.4KW special motor,
supporting stepless speed regulation, which can accurately
match the transmission speed of the main machine, further
ensuring the smoothness and efficiency of the production
process.
The paper feeding system is a key link for the stable operation
of the equipment. It adopts the industry-proven friction
feeding method, combined with an efficient paper delivery knife
structure, which can ensure that the paper is not jammed or
skewed during transportation, and is suitable for a variety of
paper raw materials — the paper format covers **0mm×**0mm
(minimum) to **0mm×**0mm (maximum), and the paper grammage
ranges from **0g to **0g, which can meet the processing needs
of paper products of different thicknesses and sizes (the
specific processing effect is subject to paper working
conditions). At the same time, the equipment is equipped with a
positioning paper pressing wheel device, which can achieve
precise positioning during paper transportation, effectively
avoid paper deviation, ensure transmission accuracy, and lay a
foundation for the accuracy of subsequent tape application
processes.
The automatic steering and multi-angle tape application
functions are the core competitiveness of the equipment. The
equipment is equipped with 1 set of programmable multi-angle
steering device, which can flexibly adjust the steering angle
according to production needs, adapt to the processing of paper
products of different shapes and different tape application
positions, and break the single-direction processing limitation
of traditional tape application equipment. The tape application

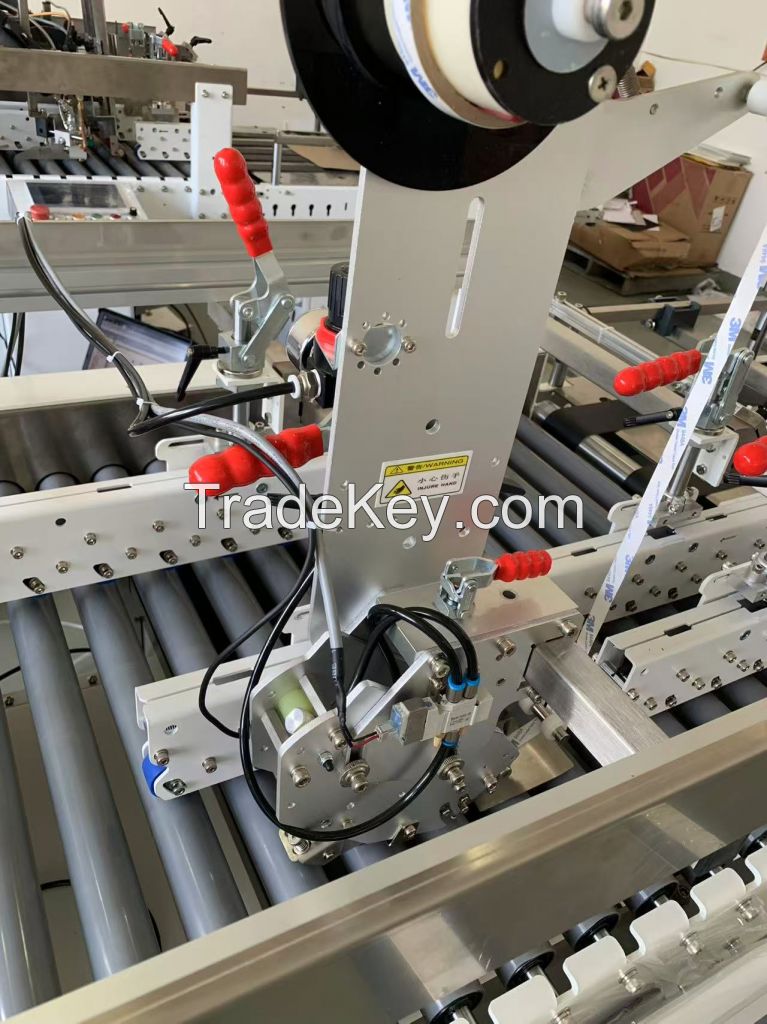

system is equipped with 2 sets of professional tape application
devices, supporting the use of double-sided tapes with a width
range of 5mm**5mm. The maximum tape application speed is
synchronized with the transmission speed of the main machine,
up to *0m/min; it also has a *-segment segmented tape
application function, which can set different tape application
segments according to the product tape application needs to
achieve multi-segment precise tape application. The minimum
length of the applied tape can exceed *0mm, which can fully
meet the tape application process requirements of complex paper
products. It is worth mentioning that the equipment's adhesion
type is specially designed for paper, with high adhesion
firmness, which is not easy to cause degumming, effectively
ensuring the quality of product processing.
In terms of control system and safety guarantee, the equipment
adopts Siemens PLC controller with touch screen control,
realizing full-process intelligent operation. The adjustment is
convenient and quick, and the commissioning process is simple.
Operators can get started quickly without professional skills
training. The equipment is equipped with 8 digital interfaces,
which can be conveniently connected to other automated
production equipment to realize the integrated connection of
the production process; at the same time, it has a built-in
leakage protection switch, which can effectively prevent
leakage risks and ensure the personal safety of operators and
the stable operation of the equipment. The power supply
required for the operation of the equipment is AC **0V, *0Hz,
with a total power of only 2.5KW and a conveyor belt power of
0.2KW, which has low energy consumption and conforms to the
concept of green production; the compressed air demand is
*0L/min, which can adapt to the existing air source
configuration of most workshops.
Overall, the Automatic Steering Multi-Angle Double-Sided Tape
Application Machine has multiple advantages such as reasonable
structure, convenient operation, high production efficiency,
and safety and reliability. Its core design supported by
European technology, as well as characteristic functions such
as segmented tape application and programmable steering, can
accurately match the diverse production needs of the paper
packaging industry. Whether it is batch production of small
enterprises or automated production lines of large factories,
it can play a significant role in improving production
efficiency. It is an ideal choice for paper processing
enterprises to upgrade production equipment and enhance core
competitiveness.
