guangzhou ACP aluminium composite panel
1. Materials:
1) Front side: Aluminum roll coated with PVDF or polyester
2) Core: Plastic( or fireproof) materials
3) Rear side: Aluminum coated with polyester or as requested

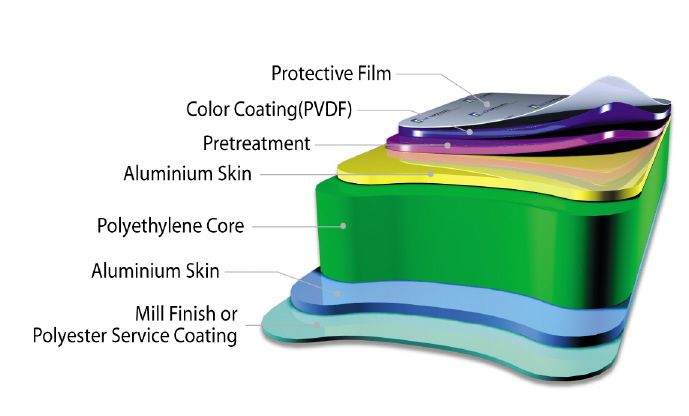

2. Procduct structure composed:
1) Protective film
2) Coating-basic level(PVDF or polyester)
3) Ground coating
4) Aluminum Alloy sheet
5) Macromolecule adhesive
6) Polyethylene
7) Macromolecule adhesive
8) Aluminum Alloy sheet
9) Ground coating

3. Specifications:
Thickness: 1mm, 2.5mm, 3mm, 4mm, 5mm, 6mm (3mm and 4mm are most popular).
Length: 2, **0mm (Max. Length: Unlimited)
Width: 1, **0mm (Max. Width:***0mm)
Weight: 5.**6kg/sqm baesd on 4mm thickness
Thickness of aluminum foil: 0.*5mm, 0.*8mm, 0.*1mm, 0.*0mm, 0.*5mm, 0.*0mm, 0.5mm
Qty/*0'FCL: 4mm/***0qm, Qty/*0'FCL: 3mm/***0sqm
Colors: Silver, flash silver, gold, flash gold, white, red, black, marble design, wooden design, golden mirrior, silver mirror, brushed panel etc. (as requirements).

4. Features:
1)Excellent fireproof property
2)Super peeling strength
3)Perfect cold resistance performance
4)Excellent surface flatness and smoothness
5)Superior weather, corrosion, pollutant resistance
6)Even coating, various colors
7)Superior impact resistance
8)Lightweight and easy to process
9)Easy to maintain

5. Application Scope
Building exterior curtain walls
As decorative materials of interior walls, bathroom, doors, ceilings, kitchens, balconies of home and hotel and so forth.
As decorative materials in the shops

6. Packing: In bulk or pallet seaworthy package
7. Transprotation: By sea.
8. Terms of payment: T/T, L/C
9. Delivery time: Within *0 days after recive the deposit.
Port: Shenzhen, guangzhou
Shipping deadline: ***0days

Thickness 1mm, 2.5mm, 3mm, 4mm, 5mm, 6mm (3mm and 4mm are most popular).
Length 2, **0mm (Max. Length: Unlimited)
Width 1, **0mm (Max. Width: ***0mm)
Weight 5.**6kg/sqm baesd on 4mm thickness
Thickness of aluminum foil 0.*5mm, 0.*8mm, 0.*1mm, 0.*0mm, 0.*5mm, 0.*0mm, 0.5mm
Qty/*0'FCL 4mm/***0qm, 3mm/***0sqm
Colors Silver, flash silver, gold, flash gold, white, red, black, marble design, wooden design, golden mirrior, silver mirror, brushed panel etc. (as requirements).
