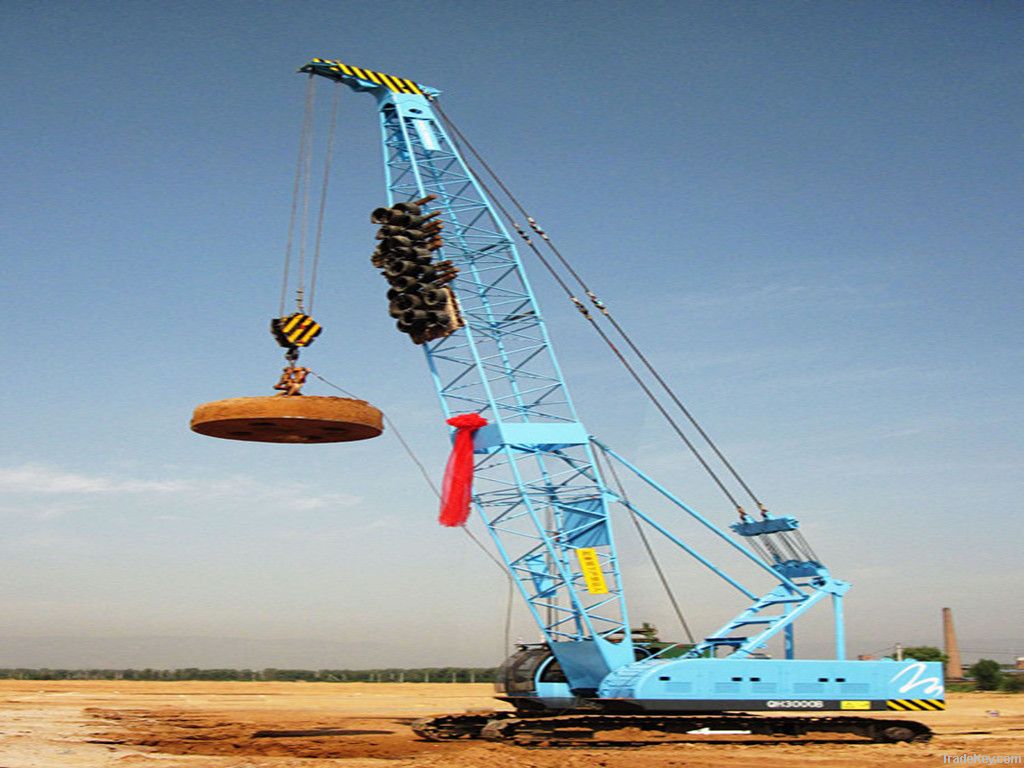

1.Patented
Product:Pioneering mechano-hydraulic integrated
dynamic compaction machine in China, perfect combination of
mechanical and hydraulic, having both
advantages to be flexible and
durableï¼›
2.Novel Mechano-Hydraulic
All-in-one:Main winch uses mechanical drive;
travelling, rotation, luffing winch and track stretching use
hydraulic drive. Such drive mode integrates the advantages of
mechanical and hydraulic drive, particularly suitable to the
special conditions of dynamic compaction machine. The design is novel and
original;
3.High Construction
Effiency: Hoisting speed of QH***0B is much
faster than all-hydraulic ones, bringing high efficiency and
great profits to customers. During using mechanical lifting
equipments, the failure rate is greatly reduced, ensuring
construction period;
4.Wide construction scopes:
Maximum compaction energy of QH***0B with portal frame is
***0KN.M,
5.Quality
Assurance: HangZhong Construction Machinery Co.,Ltd has been
engaged in producing dynamic compaction machine for *0 years,
ensuring high quality;
6.Reliable
chassis:The chassis structure with high strength
is track retractable; chassis wheel tread is ***0mm, while ***0mm
chassis width at transportation state and
***0mmafter extended. The whole
unit has excellent stability. and grounding specific pressure is
only 0.**8MPa, leading to strong trafficability. The machine has
great driving power, strong gradeability and high reliability
because of built-in Planetary reducer and high-torque travel
motor (imported from Germany);
7.High security:Installed with safety
devices including platform rotation locking devices, lifting arm
anti-overturn device, ratchet wheel locking device and winch
anti-over-wind device etc., ensuring safe and reliable working.
Equipped with electronic combined instruments, capable of auto
alarm, ensuring smooth working;
8.Working devices:The boom is welded
with high-strength structural pipes, which has good rigidity,
light weight and strong bearing capacity. The protracting “crane
like-head” structure of the top boom is specially designed for
dynamic compaction construction;
9. Long working time:Effective volume
of the fuel tank is up to **0L, and the hydraulic system has an
independent heat abstractor, which can guarantee high-load, long
and continuous working of the machine;
*0. Convenient
transportation:The whole machine is compactly constructed
with light weight and easy for disassembly and assembly. The
overall dimension of the host is ****0×***0×***0mm. During
transportation, it is only necessary to remove the boom tip,
convenient for transportation.
