HERO BRAND Flexible Printing Machine

China

YT6600/YT4600/YT2600

6600 ~ 20000 / 获取最新报价

CHINA

6600

1 Set

WOODEN CASES

10-15DAYS

90 Set per Month

T/T, L/C, D/A, D/P

Printing Machine

现在联系

产品规格

Brand Name : HERO Plate Type : Letterpress Usage : Plastic film printer Color & Page : Multicolor Automatic Grade : Automatic Condition : New Gross Power : 380V 50HZ 3P Dimensions(L*W*H) : -

详情

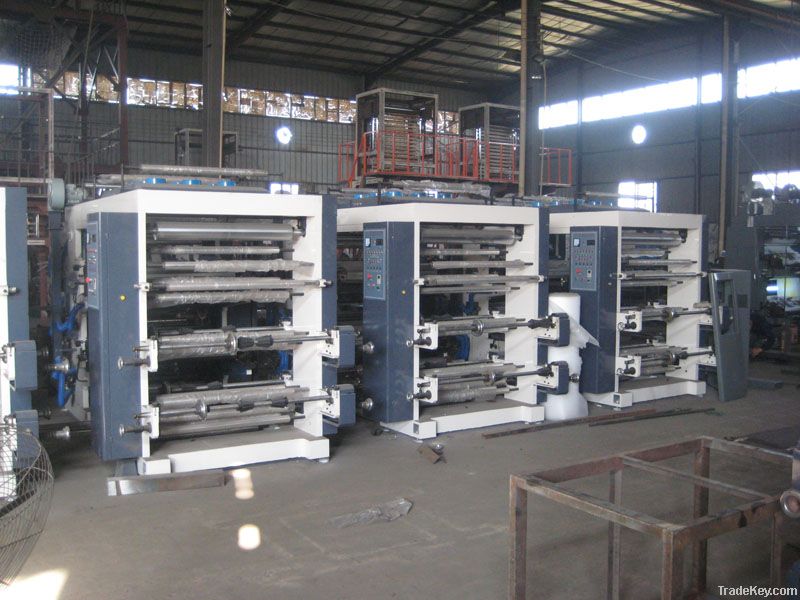

Six-Colour Flexographic Printing Machine
Use
This machine is suitable for printing such packing materials as polyethylene,polyethylene plastic bagglass paper and roll paperetc.And it is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag,vest bag and clothes bag,etc.

Characteristics
1.Easy operation,flexible starting accurate colour register.
2.The meter counter can set printing quantity according to the requirement.Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually,It will automatically stir the printing ink after lifting
4.The printing ink is spread by the knurled cylindder with even ink colour.
5.Reliable drying system coordinated with high-speed rotation,it will automatically break circuit when the machine stops.
6.3600 continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are inching/Stopping s on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.


Main Technical Variables:

Model of Machine YT*6600 YT*6800 YT**1000
Max.Width of Printing Material 600mm 800mm 1000mm
Max.Printing With 560mm 760mm 960mm
Length Range of Printed Product ***-914mm ***-914mm ***-914mm
Max.Diameter of Roll Material φ450mm φ450mm φ450mm
Printing Speed 5~50m/min 5~50m/min 5~50m/min
Thickness of plate(Including Two-sides Glue Paper) 2.38mm 2.38mm 2.38mm
Total Power 13kw 15kw 18kw
Weight of Machine 3500kg 4200kg 5000kg
Overall Dimensions 3900×1660×2950mm 3900×1860×2950mm 3900×2060×2950mm
